2 JL AUDIO 10WØv2-4
SUBWOOFER 10WØv2-4
Free Air Resonance (Fs): 32.09 Hz
Electrical “Q” (Qes): 0.640
Mechanical “Q” (Qms): 10.752
Total Speaker “Q” (Qts): 0.604
Equivalent Compliance (Vas):
1.095 ft 3
31.01 liters
One-way, Linear Excursion (Xmax)*:
0.45 in.
11.4 mm
Efficiency (1W/1m)**: 84.07 dB SPL
Effective Piston Area (Sd):
48.909 in 2
0.0316 m 2
DC Resistance (Re): 4.280 ohm
Nominal Impedance: 4 ohm
Power Handling (continuous): 300 W
* Xmax specifications are derived via one-way voice coil overhang method
with no correction factors applied.
** Efficiency (1W/1m) is not an accurate indicator of a subwoofer’s output
capability and should not be used as a comparison to other subwoofers
to determine which one is “louder” !

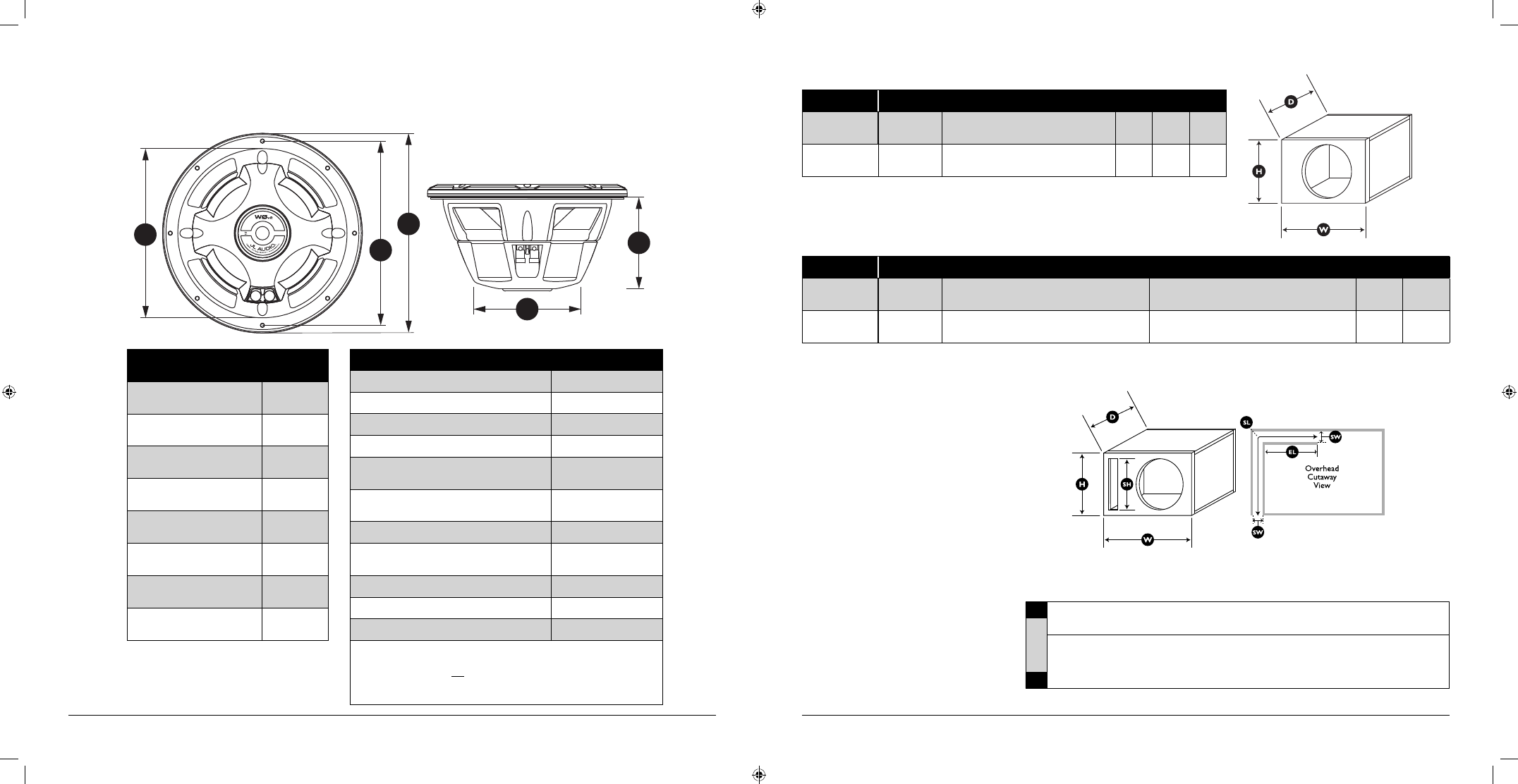

A
B
E
D
C
10WØv2 SUBWOOFER
PHYSICAL SPECIFICATIONS
Nominal Diameter:
10.0 in.
250 mm
Overall Diameter (A):
10.52 in.
267 mm
Mounting Hole Diameter (B):
9.0625 in.
230 mm
Bolt Hole Circle (C):
9.7 in.
246.5 mm
Magnet Diameter (D):
5.05 in
128 mm
Mounting Depth (E):
4.9 in.
124 mm
Net Weight:
7.5 lbs.
3.40 kg
Driver Displacement:
0.034 ft 3
0.96 liters
JL AUDIO 10WØv2-4
U.S. PATENT: #6,219,431
“EL” (Port Extension Length):
10WØv2: 18.25 in. (464 mm)
JL AUDIO 10WØv2-4 3
SUBWOOFER RECOMMENDED SEALED ENCLOSURE
Volume
(net int.)
External Dimensions
(Width x Height x Depth)
F3
(Hz)
Fc
(Hz)
Qtc
10WØv2-4
0.65 ft 3
18.41 liters
18 in. x 11 in. x 9 in.
457 mm x 279 mm x 229 mm
42.4 53.23 1.002
All specifications are subject to change without notice.
SUBWOOFER RECOMMENDED PORTED ENCLOSURE
Volume
(net int.)
Enclosure External Dimensions
(Width x Height x Depth)
Slot Port Internal Dimensions
(Slot Width x Slot Height x Slot Length)
Tune to:
(Hz)
F3
(Hz)
10WØv2-4
1.125 ft 3
31.86 liters
23 in. x 12 in. x 13.625 in.
584 mm x 305 mm x 346 mm
1.25 in. x 10.5 in. x 32 in.
31.75 mm x 267 mm x 813 mm
30 29.6
!!
C
A
UTION
!!
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance
speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend
bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers
for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly
important in a hatchback, station wagon, sports utility vehicle, or van.
• The enclosure recommendations listed are external
dimensions which assume the use of 3/4" (19mm)
thick material. If you are using 5/8" (16mm) thick
material, subtract 1/4" (6.5mm) from each dimension.
Do not use any material with a thickness of less than
5/8" (16mm) as this may compromise the rigidity of
the enclosure.
• All enclosure volumes listed are net internal
volumes! Box volume displacement, port
displacement and brace displacement must be
added to obtain the final gross internal volume. All
enclosure dimensions listed have already taken this
into account.
• When using two subwoofers in a common
enclosure simply double the required volume and,
in the case of a ported enclosure, use two times the
recommended port(s).
• We recommend the use of this speaker in a bi-amplified
system using high-quality satellite speakers and
amplifiers. We do not recommend the use of this
subwoofer with a passive crossover (coil), as this type of
device will adversely affect performance.
