Jabra PRO 9460, Jabra PRO 9460 DuO, Jabra PRO 9465 DuO anD Jabra PRO 9470 useR manual

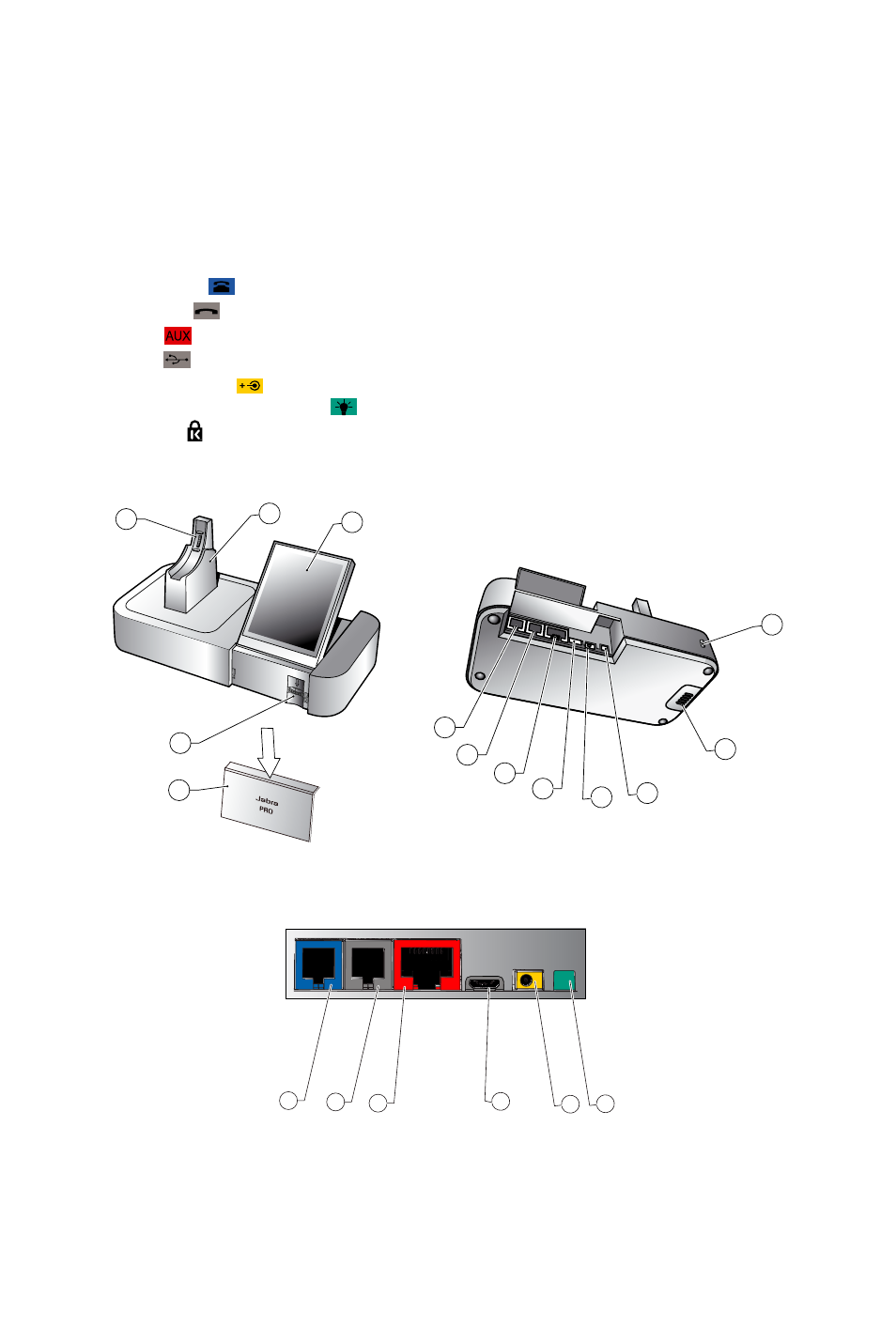

3.4 BaSe diagRaM
1 Headset cradle
2 Recharge contact
3 Touchscreen
4 Desk-phone clear dial-tone switch
Note: Not included on the Jabra PRO 9465 Duo or Jabra PRO 9470 bases, where this is software
controlled (set up automatically)
5 Cover for desk-phone control
Note: There is no clear dial-tone switch underneath on the Jabra PRO 9465 Duo or Jabra PRO 9470 bases
6 Telephone port
7 Handset port
8 AUX port
9 USB port
10 Power adapter port
11 Remote busy-light indicator port
12 Security slot
13 Speaker for ring tones and touchscreen audio feedback
Figure 6:
2
4
5
6
7
8
9
10
11
13
3
1
12
Jabra PRO Touchscreen Base, seen from the front and back, respectively
9 10 11 12 8 7
