10.2. WEN out on pin 6 on 6 pin connector
Instead of EEN output on pin #6 on the 6 pin Hirose connector, WEN can be output by jumper
settings. The 2 jumpers are found on the main board PK8275B, if the bottom plate is removed.
JP1 JP2
Signal on pin #6 JP1
JP2
Remark
EEN out
open short default
WEN out
short open
Configuration shown in Bold+Italic is factory default setting

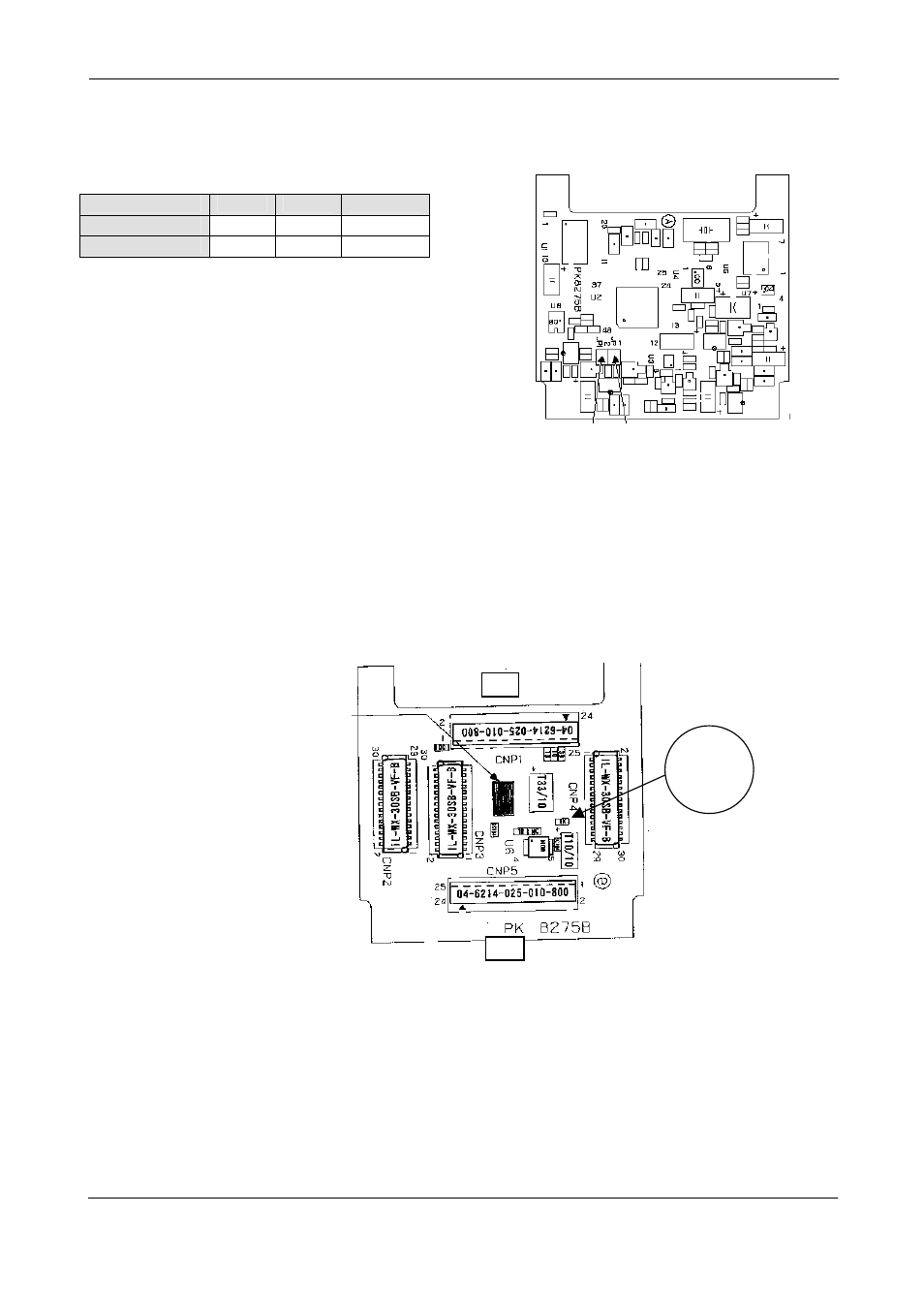

Fig. 32. PK8275B main board
10.3. CV-A50/60 without sync on video output.
For applications where the video output signal should be without the composite sync signal, it is
possible to remove the sync signal by removing an internal resistor.
Remove the top cover and the bracket for holding boards. The resistor is found on the main
board. (Mother board). The resistor, which is very small, can then carefully be removed with a
small solder iron.
Rear
Front
R49 1K
Remove it
for video
without
sync.
Fig. 33. PK8275B main board top side
