2 | JL Audio - C3-525 Owner’s Manual
A
F
B
G
E
D
C

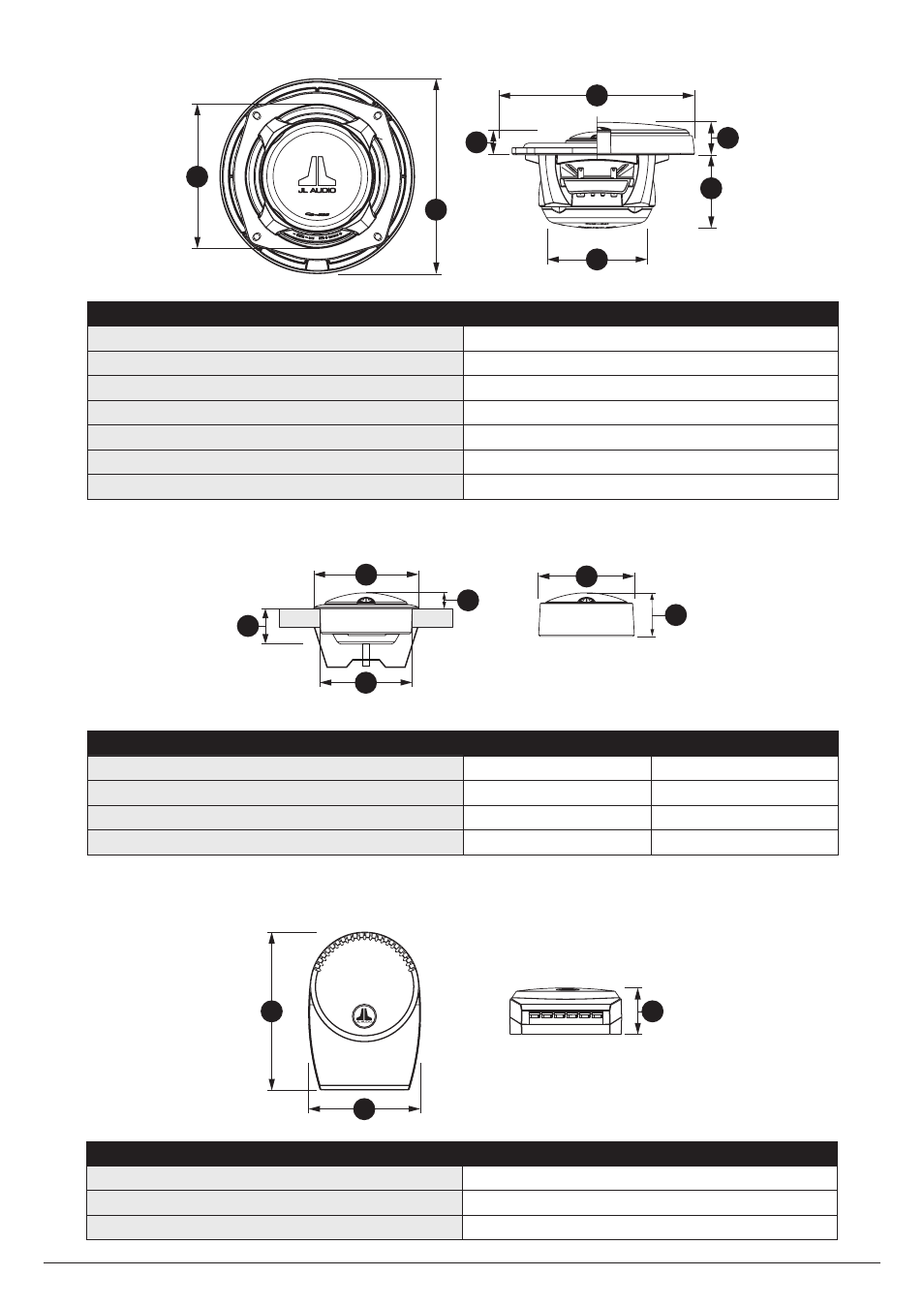

woofer Physical Dimensions
Frame outer Diameter (a) 5.80 in. / 147.3 mm
Grille Tray outer Diameter (B) 6.00 in. / 152.4 mm
rear Cover outer Diameter (C) 3.38 in. / 85.9 mm
Frontal Tweeter Protrusion* (D) 0.69 in. / 17.5 mm
Frontal Grille Protrusion (e) 1.00 in. / 25.4 mm
mounting Hole Diameter (F) 4.56 in. / 115.9 mm
mounting Depth (G) 2.27 in. / 57.7 mm
B
C
A A
D
D
C
B
A
Crossover network Physical Dimensions
Height (a) 4.72 in. / 119.9 mm
width (B) 3.36 in. / 85.3 mm
Depth (C) 1.44 in. / 36.6 mm
Tweeter Fixture Physical Dimensions Flush-mount surface-mount
Fixture outer Diameter (a) 2.12 in. / 53.8 mm 1.93 in. / 49.0 mm
Fixture mounting Hole Diameter (B) 1.875 in. / 47.6 mm N/A
Fixture mounting Depth (C) 0.71 in. / 18.0 mm N/A
Tweeter Frontal Protrusion (D) 0.32 in. / 8.1 mm 0.95 in. / 24.1 mm
