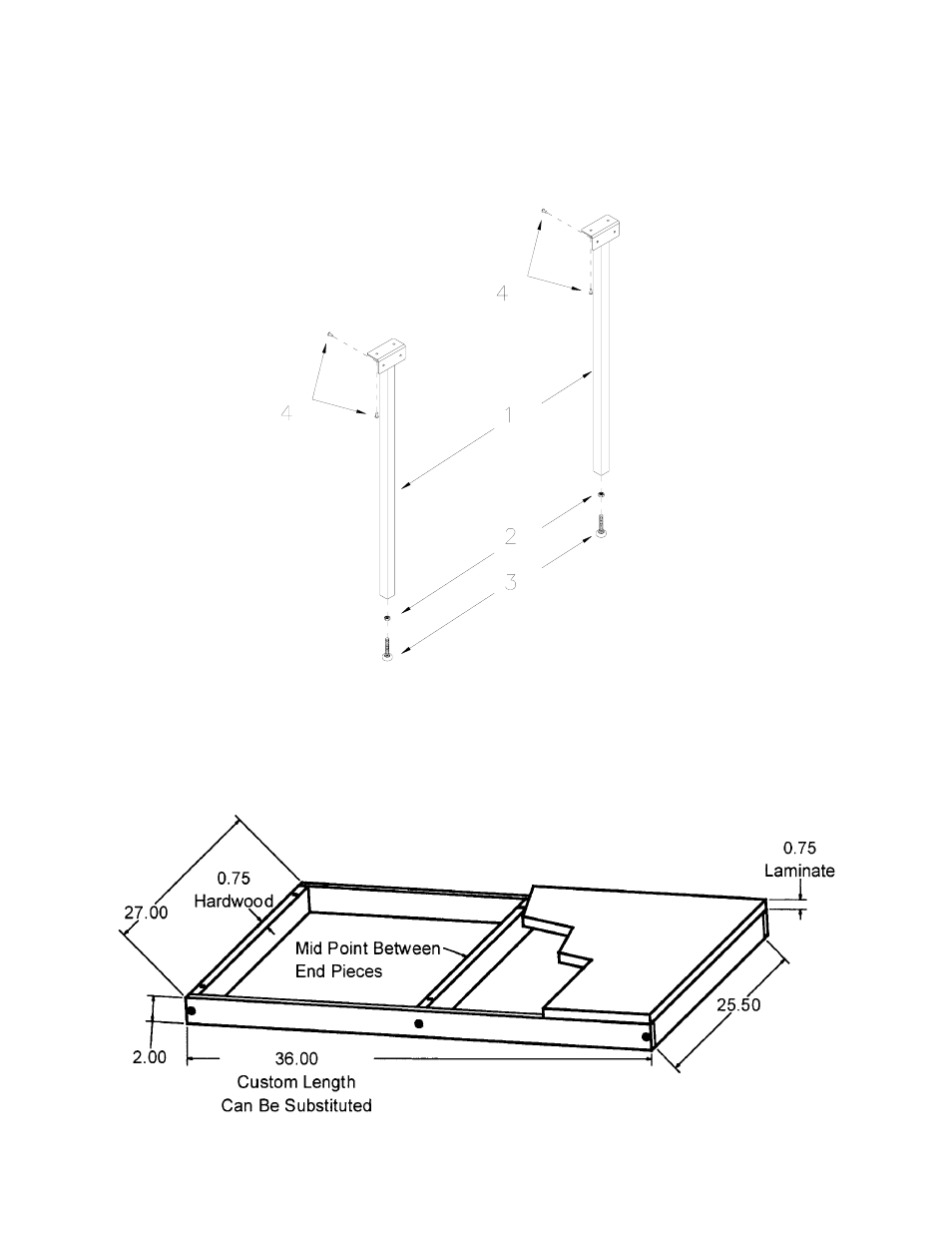

Parts for the XACTA Fence II Leg Assembly
Index No. Part No.
Description
Size
Qty
1 ...............XF2-301 ...................Leg ....................................................................... .................................... 2
2 ...............TS-0561031 .............Hex Nut ................................................................ 3/8”-16......................... 2
3 ...............XF2-303 ...................Adjusting foot ....................................................... .................................... 2
4 ...............TS-1533052 .............Machine Screw .................................................... M5
×16......................... 8
Appendix – Extension Table Dimensions
The dimensions below are provided if you plan to build your own extension table instead of purchasing
one that is available through JET.
