EDITING
Page 62 Monday, 12 July 2004 14:25
You can use your unit as the source player or as the recording
deck.
NOTE:
When using another recorder as the recording deck, refer to its
instruction manual.
1
Make connections.
A If another recorder has no S-VIDEO connector, connect the
unit’s AUDIO/VIDEO INPUT connectors to the audio/video output
connectors on another recorder.
B If another recorder has S-VIDEO connector, connect the
AUDIO INPUT and S-VIDEO INPUT connectors to the audio and
S-video output connectors on another recorder.
● If connecting a unit with an S-VIDEO connector, it is recommended to
use an optional S-Video cable to minimize picture degradation while
editing.
2
When using this unit as the recording deck, press HDD or DVD
to select the recording deck.
3
Press CH +/– to select “L-1” or “L-2” depending on the
connectors being used.
● Set “REAR AUX L-1” or “REAR AUX L-2” to “VIDEO” for the VIDEO
input connector, or “S-VIDEO” for the S-VIDEO input connector,
depending on the connector being used. (
੬ pg. 68)
4
When using this unit as the recording deck, press REC MODE
repeatedly to set the recording mode.
5
Engage the Play mode of the source player.
6
Engage the Record mode of the recording deck.
7
Stop recording on the recording deck, then stop playback on the
source player.
NOTES:
● All necessary cables can be obtained from your dealer.
● When you use this unit as the source player for editing, be sure to set
“SUPERIMPOSE” to “OFF” before starting. (
੬ pg. 69)

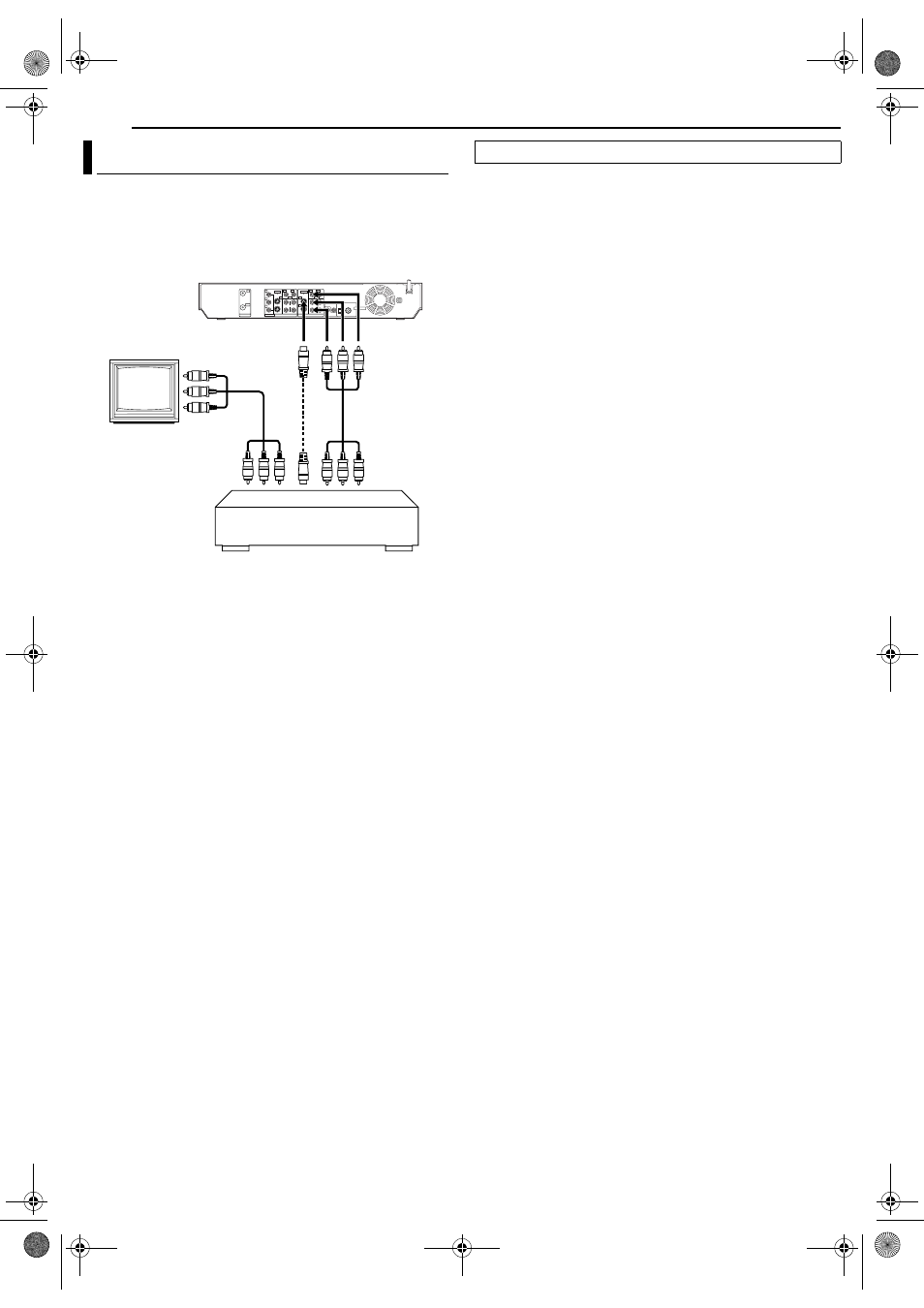

Edit To Or From Another Recorder
1
L-2
Player
Your unit
Another recorder
Recorder
TV receiver
Slide the TV/CABLE/DBS/DVD switch to DVD.
