JVC HR-DVS2U - Manual (Page 7)

EN
7
ANTENNA IN
TV OUT
VHF/UHF
AUDIO VIDEO
R
R
L
L
IN
OUT1
OUT2
CABLE
BOX
OUT1 OUT2 IN
NOTES:
● To make the most of the Super VHS picture performance we recommend that you use the supplied S-VIDEO cable to connect your
VCR to a TV with an S-VIDEO input connector.
● To operate the VCR with your TV using the S-VIDEO connection, set your TV to the AV mode using the TV's remote control.
You can also use the TV/VCR button on the VCR's remote control to set your TV to the AV mode. (
੬
pg. 64)

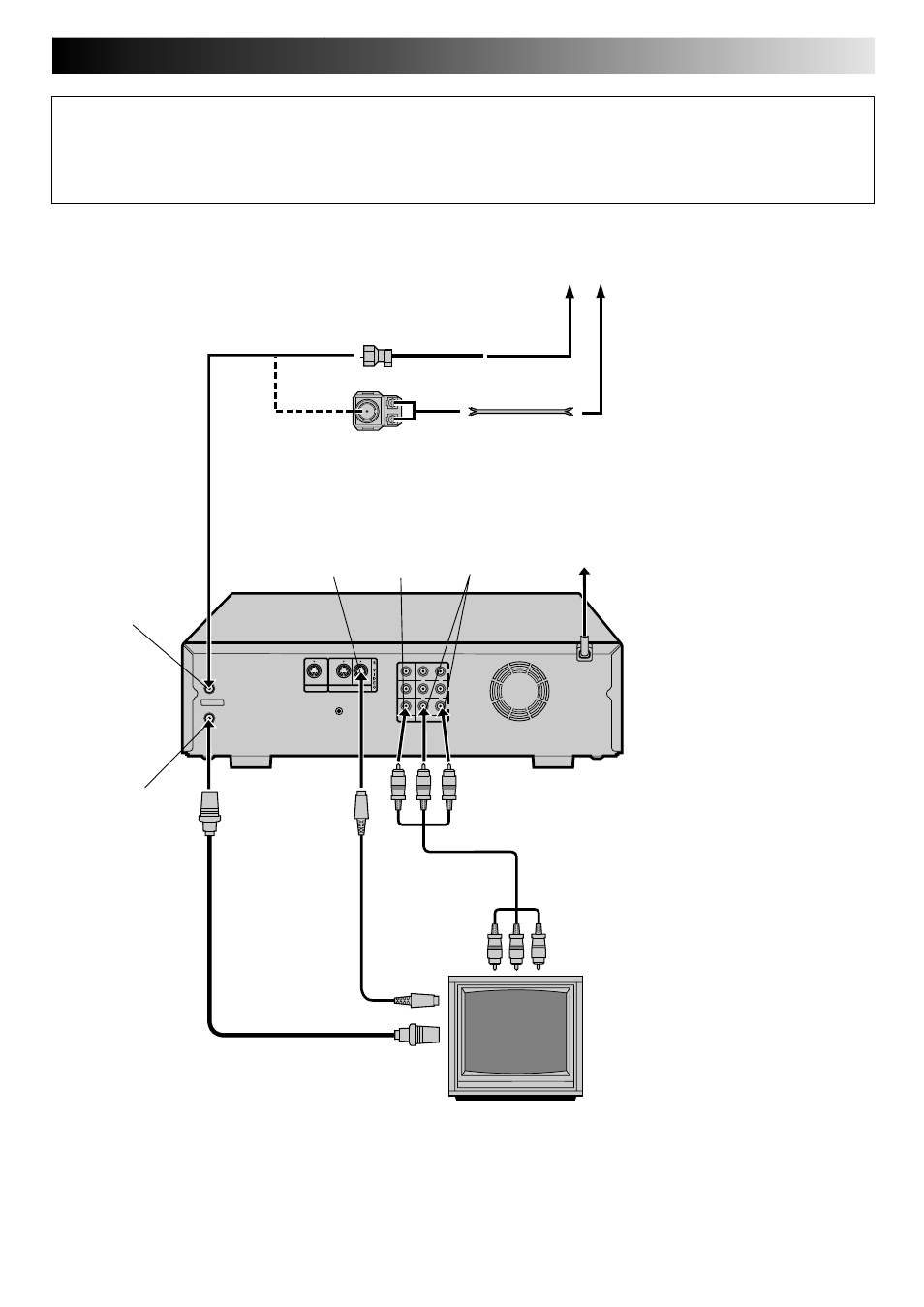

S-VIDEO Connection
CONNECT VCR TO TV
a– Connect both the RF cable and the AV cables to the TV as explained in step 3 of "Basic Connections" (
੬
pg. 6).
b– Connect the S-Video cable between the S-VIDEO OUT 2 jack on the rear of the VCR and the S-VIDEO IN jack on the TV.
S VIDEO IN
Antenna or Cable
Flat Feeder
Coaxial Cable
AC Outlet
TV
Matching Transformer
(not supplied)
Audio/Video
Cable (supplied)
ANTENNA IN
(Antenna or
Cable input)
AUDIO
OUT S-VIDEO
OUT
Back of VCR
S-Video Cable
(supplied)
VIDEO
OUT
RF Cable
(supplied)
TV OUT
