CD2620 / CD2620SE
3

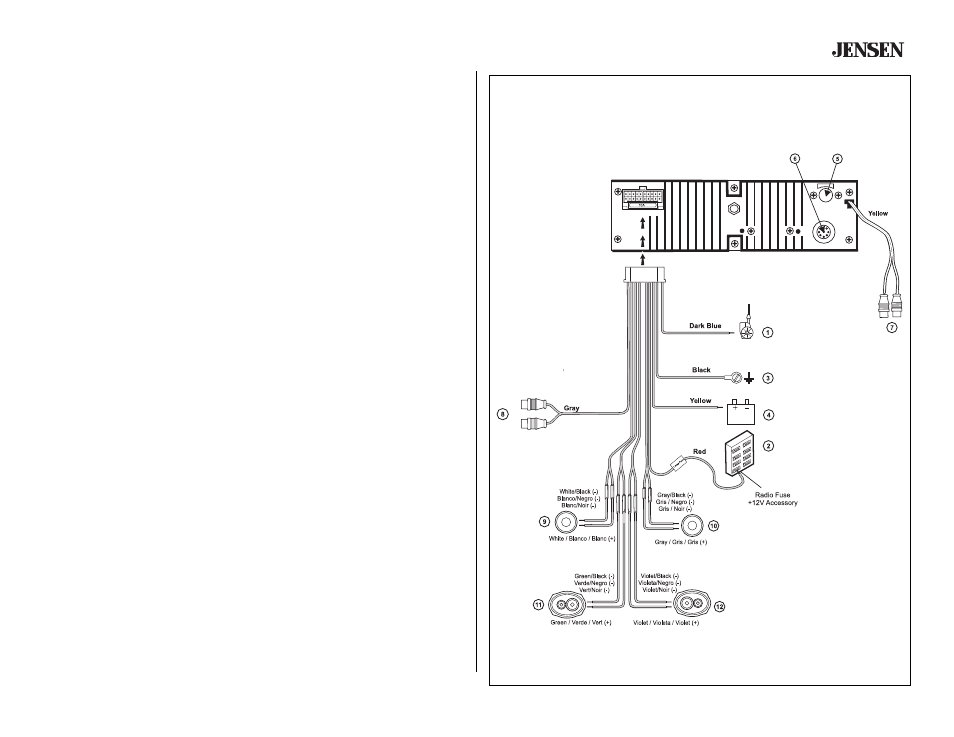

Wiring
1. Dark Blue Wire
The dark blue wire can be used to remotely activate an automatic antenna or an external
amplifier. See antenna or amplifier manual for detailed instructions.
2. Red Wire
Connect the red wire to the radio fuse +12V accessory in the fuse block.
3. Black Wire
Connect to a metal part of the dash, drilling a hole if necessary.
4. Yellow Wire
Connect to the positive 12V battery terminal. The yellow wire must be connected as shown, or
the radio will not operate properly.
5. Antenna Connector
Connect the antenna plug from the existing antenna cable (some vehicles require an adaptor).
6. CD Changer Connector
This 8-pin DIN socket provides the connection to the optional CD Changer.
7. Yellow RCA Cables
RCA line in jacks for use with auxiliary input devices (CD player, etc.)
8. Grey RCA Cables
RCA line out jacks for use with optional external amplifiers. The red connector is for the right
and the white connector is for the left.
9. Left Front Speaker
10. Right Front Speaker
11. Left Rear Speaker
12. Right Front Speaker
Note: The amplifiers in this radio are only designed for use with four speakers. Never
combine (bridge) outputs for use with two speakers. Never ground negative speaker
leads to chassis ground. Failure to wire exactly as shown may cause electrical damage
to the radio.
Technical Assistance
If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30am to
7:00pm EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday.
Wiring
Cableado
Câblage
