4

Preparation

Before replacing the lamp, read all the instructions.

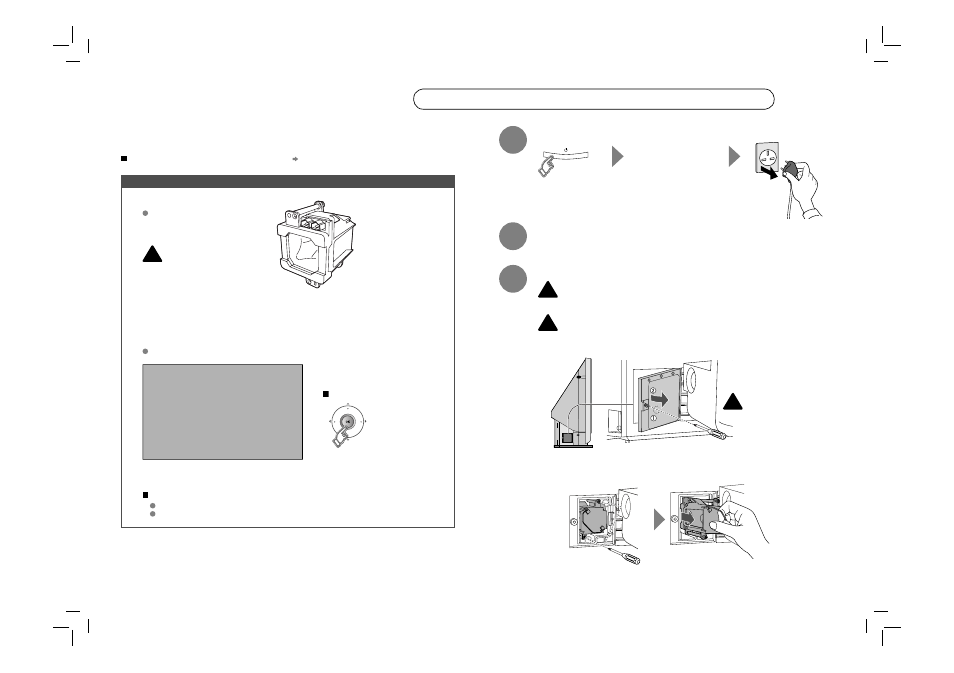

Replacing the lamp

Replacement Lamp Kit:
TS-CL110E

• High-pressure 110 V mercury lamp

Possible causes of shortened lamp life

Turning on/off the TV repeatedly in a short amount of time
Keeping the TV turned on for more than 24 hours consecutively

Use only the specifi ed
Replacement Lamp Kit!

This lamp is for use with JVC
model televisions. Using the
lamp with a different television
or other product could cause a
malfunction and/or damage to
the television or lamp.

If you feel unsure about replacing the lamp yourself

Consult your retailer

LAMP NEEDS TO BE REPLACED.
PLEASE REFER TO THE MANUAL FOR
REPLACEMENT INSTRUCTIONS.

AFTER REPLACING THE LAMP,
PLEASE RESET THE TIMER IN THE
TV MENU.

PRESS OK, IF YOU DO NOT WANT
TO SEE THIS MESSAGE AGAIN.

To make the message disappear

Turn the TV off

Wait until the LAMP
indicator stops
blinking

1

Unplug the TV

2

Wait for at least 1 hour until the lamp has fully cooled

For purchasing the Replacement

Lamp Kit, consult your retailer.

3

The TV uses a lamp to project the picture onto the screen. When the lamp has blown or when the
picture becomes dark, replace the lamp.
Before replacing the lamp, read all the instructions carefully.

Prepare the Replacement Lamp Kit

When the lamp is near to its end...

The following message appears on the screen.

After the usage time of the lamp has reached to 6500 hours, this
message appears every time you turn on the TV.

Remove the lamp cover

Remove the lamp unit

2

Remove the lamp unit

Philips head type screw
driver (cross-head type)

1

Do not drop
the lamp!

If you feel any warmth
near the lamp, DO NOT
TOUCH IT!

Never attempt to replace the lamp with the TV plugged in!

Attempting to replace the lamp with the TV plugged in could lead to a severe electrical
shock.

Never replace the lamp before it has fully cooled!

The lamp becomes extremely hot while in use, which may cause a burn. After turning
off the TV, wait for at least 1 hour.

Loosen

Remove

!

!

!

!
