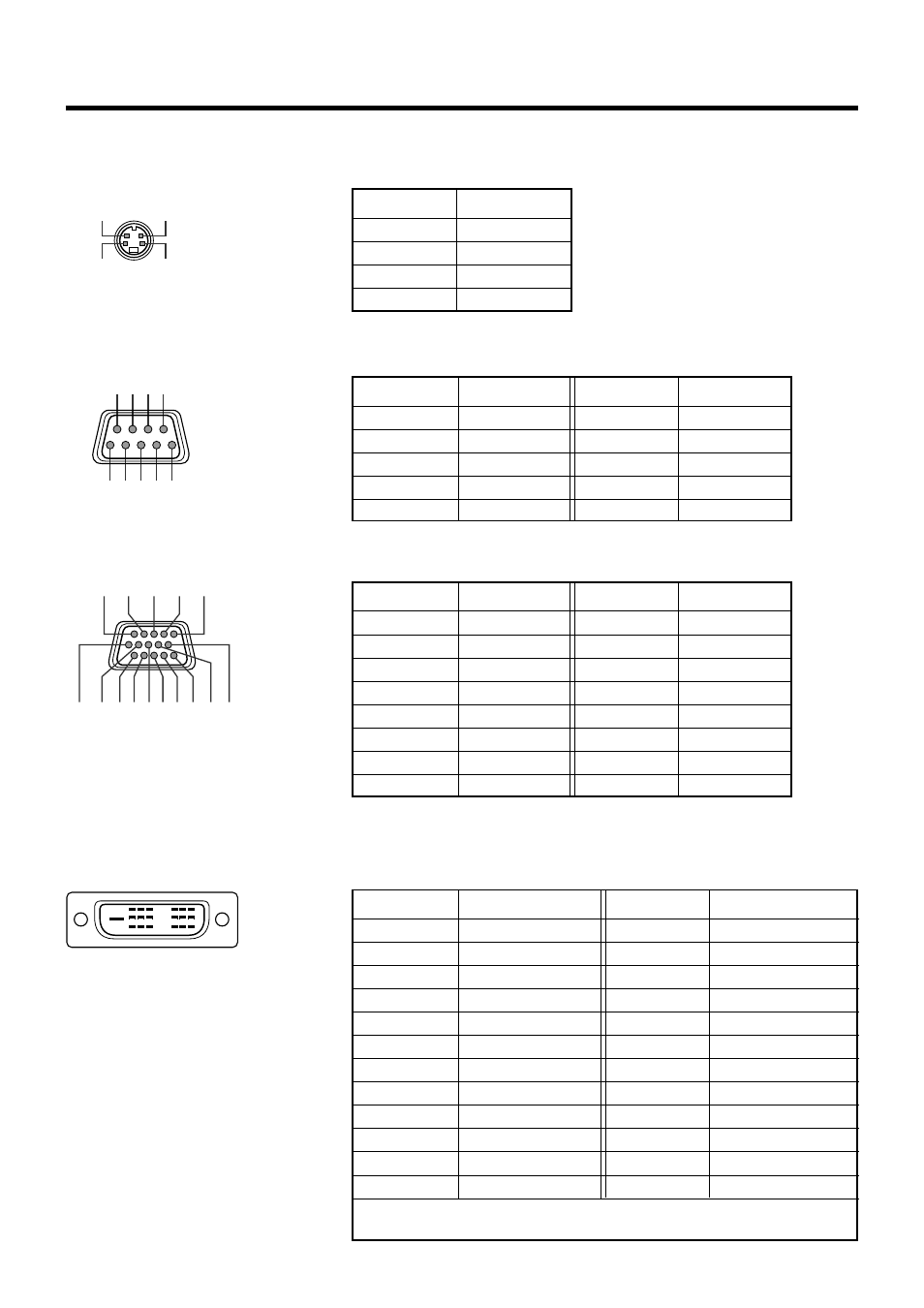

Specifications
Pin arrangement
Ⅵ Y/C terminal
Pin number Signal name
1 GND (Y)
2 GND (C)
3 Y
4 C
Pin number Signal name
1 N/C
2 RD
3 TD
4 N/C
5 GND
Pin number Signal name
6 N/C
7 N/C
8 N/C
9 N/C
Ⅵ RS-232C IN/OUT terminal
Ⅵ PC 1 terminal
Ⅵ PC 3 terminal
Pin number Signal name
1 Red
2 Green
3 Blue
4 N/C
5 N/C
6 GND (Red)
7 GND (Green)
8 GND (Blue)
Pin number Signal name
9 N/C
10 GND (SYNC)
11 GND
12 N/C
13 H.SYNC
14 V.SYNC
15 N/C
Pin number Signal name
1 TMDS data 2 -
2 TMDS data 2 +
3 TMDS data 2 /4 shield
4 N/C
5 N/C
6 DDC clock
7 DDC data
8 N/C
9 TMDS data 1 -
10 TMDS data 1 +
11 TMDS data 1/3 shield
12 N/C
Pin number Signal name
13 N/C
14 TMDS +5V power supply
15 Earth (+5V)
16 Hot plug detection
17 TMDS data 0 -
18 TMDS data 0+
19 TMDS data 0/5 shield
20 N/C
21 N/C
22 TMDS clock shield
23 TMDS clock +
24 TMDS clock -
TMDS = Transition Minimized Differential Signaling
DDC = Display Data Channel
