s t e P 5

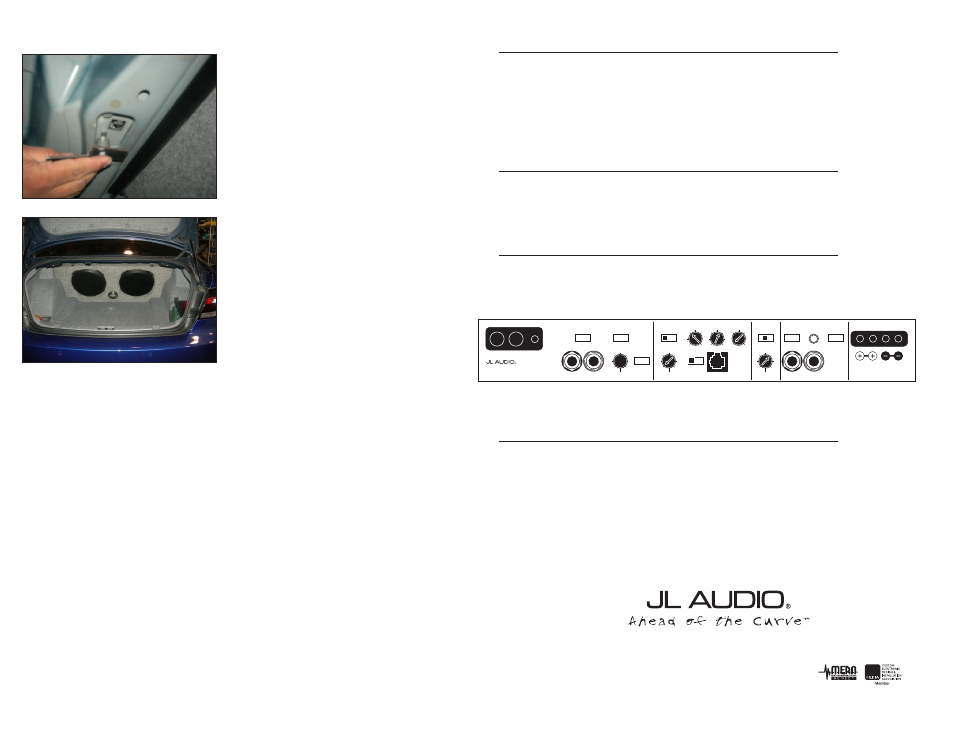

Set the enclosure into the trunk with the woofers facing
down, attach the wires going to the amplifier. Push the
enclosure towards the seat, and tilt it up so that it rests fully
against the seat. Install the silver bolts, split lock washers
and flat washer through the slots in the previously installed
brackets into the Stealthbox®, apply pressure to the enclo-
sure so that the bolts go through the slots as close to the
seat as possible and tighten all bolts.

C o n G R a t u l a t I o n s !
You have completed the installation for this model!

Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.

s t e P 4
Using the hardware assembled in steP 3, install two mount
brackets where bolts were removed in steP 2. Do not
tighten the bolts down yet, just get them snug. The slotted
end of the bracket should point down and towards the rear
of the car.

Page 2 • JL Audio, Inc 2008

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered

trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.

JLA-SKU# 011256

8-12-2008 • Printed in USA • ©2008 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479

#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.

(954) 443-1100

w w w. j l a u d i o . c o m

1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A

I n C l u d e d H a R d W a R e

(2) 8mm- 1.25 x 35mm Black Oxide Hex Head Bolt

(2) 8mm- 1.25 x 22mm Chrome Hex Head Bolt

(4) 8mm Flat Washer

(4) 8mm Split Lock Washer

(2) Custom Mount Brackets

(2) 3/4" Aluminium Spacers

s P e C I F I C a t I o n s

Enclosure Type: Acoustic Suspension (sealed)

Driver Type: 13TW5-3

Nominal Impedance: Dual 3 ohms

Continuous Power Handling: 600 Watts (per woofer)

P o W e R R e C o m m e n d a t I o n

JL Audio recommends using a high quality amplifiers such as the JL Audio HD750/1 or the 500/1v2. The diagram
below shows the recommended crossover, infrasonic filter and equalizer settings for the 500/1v2. when being used
to power your Stealthbox

®

.

The JL Audio 500/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifiers.

m I d / H I G H F R e q u e n C Y d R I v e R F I t m e n t

A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of your vehicle.

Front Speaker Size / Location: 4" In the doors

Fits JL Audio Models: N/A

Rear Speaker Size / Location: Coupe-6.5"/Rear Deck Sedan-5.25"/rear doors....4" Rear Deck

Fits JL Audio Models: TR650-CXi, TR650-CSi, VR650-CXi, TR650-CXi,TR650-CSi, VR650-CSi, C5-650, C5-650x,
ZR650-CSi (Coupe) TR525-CXi, TR525-CSi, VR525-CXi, TR525-CXi, TR525-CSi, VR525-CSi, C5-525, C5-525x,
ZR525-CSi......TR400-CXi (Sedan)
