• Place Ring upside down to identify the dimples as shown

in Fig. 1.

• Locate the Ring and Hanger brackets and place them as

shown in Fig. 2.

• Using a Philips Screw driver, attatch the ring and hanger

bracket to the Ring using the provided philips screws.

• Once all the Ring and hanger brackets have been installed, careful-
ly ﬂip the ring over and install onto the freestanding skirt as shown
in Fig. 4. Continue onto installing your Freestanding Bath Tub.

Ring Installation:

��
��

��

��
��

Ring Bracket / Ring Hanger Bracket

Fig. 2

Ring Installtion Detail

Fig. 3

��

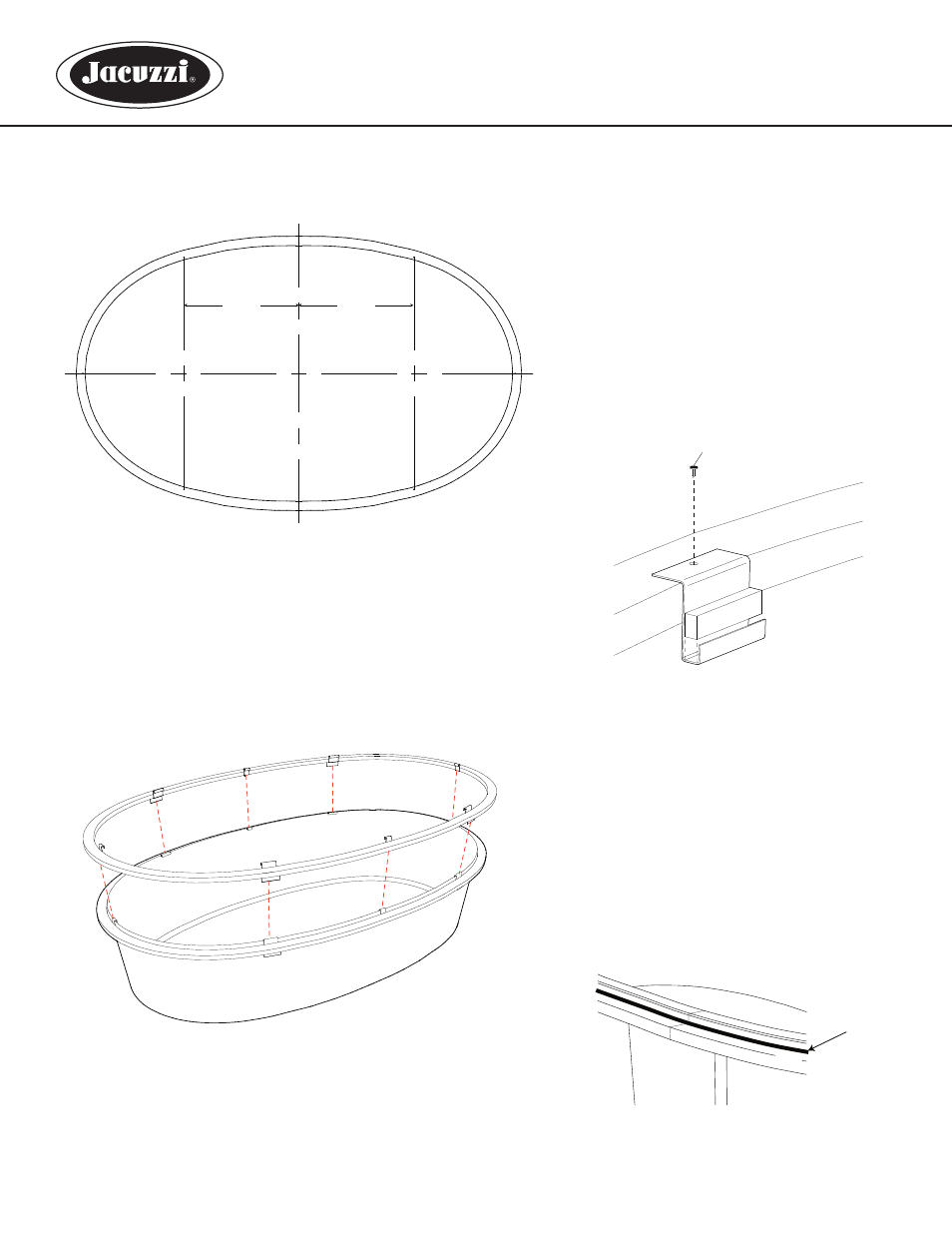

Ring and Leg Bracket Location Detail

Fig. 1

3. FOR ADDITIONAL SAFETY.

• After the Ring and Bath has been installed, Place a
bead of clear silicon between the Ring and Tub rim as
shown in Fig. 4.

��

��
��

Silicon Installation Detail

Fig. 4
