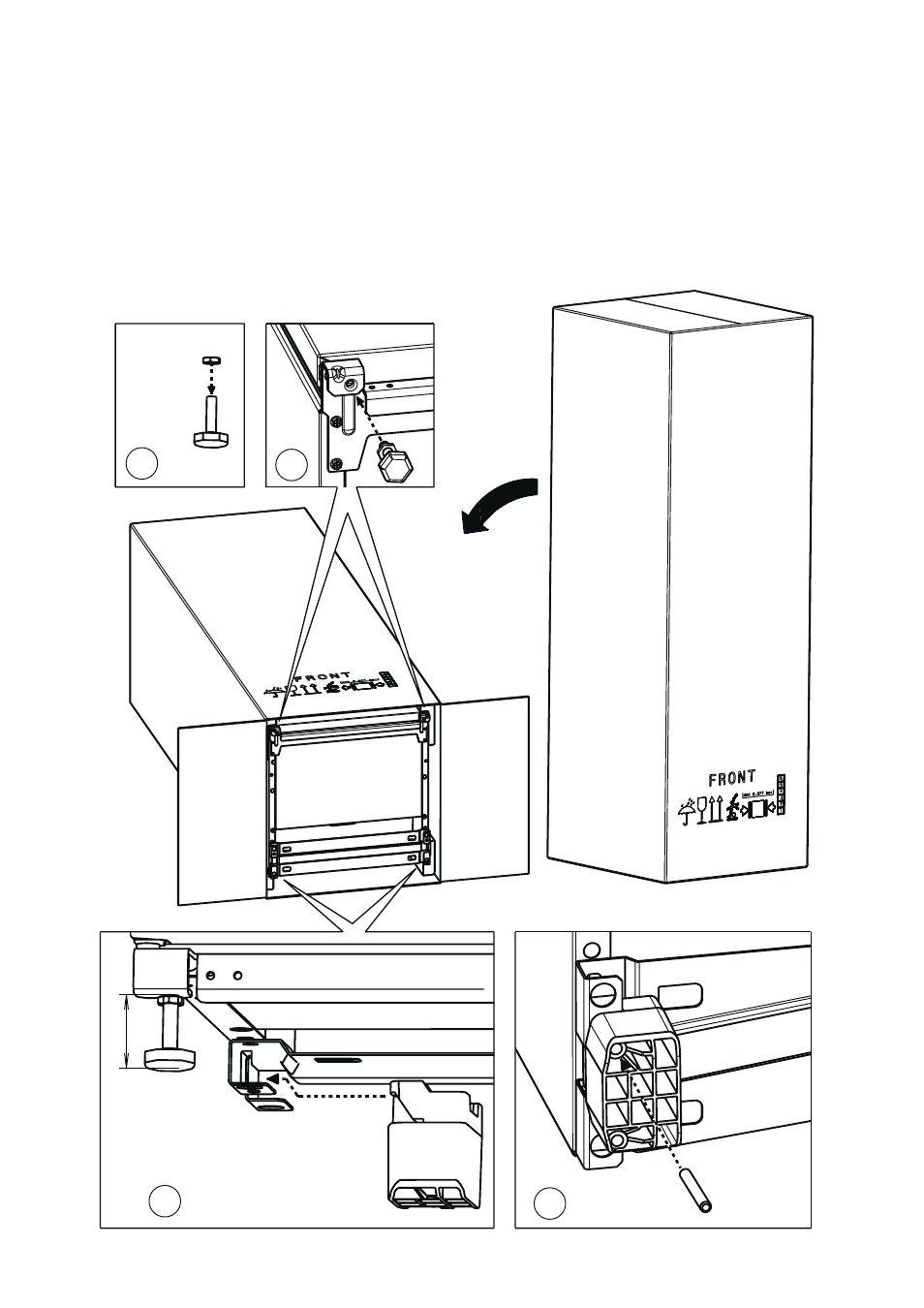

Carefully place the unit on the floor, following the instructions on the packaging to make sure the unit is
facing upwards.
•
Open the bottom part of packaging and remove the corner protection.
•
«A» Screw the M8 nuts (bag «4») on the respective front feet.
•
«B» Screw the front feet on the bracket of the unit using the dimension indicated in fig. «C».
•
«C» Position the rear feet on the compressor support plate.
•
«D» Insert the pin, using a hammer, so that it does not protrude outside the foot.
•
Carefully reposition the appliance in the upright position and remove completely the packaging.
•
Operation to be carried out on both units.
