KA-F 5604U
Analog output card
Printed in Japan
LWT0272-001A
is a registered trademark owned by Victor Company of Japan, Limited.
is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2005 Victor Company of Japan, Limited
Analog Output : Composite video signal
Component signal
(Either Y/Cb/Cr,RGB or YC separate output signal could be selected)
Power supply : Supplied by camera
Power consumption : 9.6 W (Include KY-F560 camera)
Operating temperature range : -5 °C to 40 °C (Humidity below 80 %)
Dimensions : (W) 22.4 mm x (H) 70.2 mm x (D) 76.5 mm (Exclude protruded part)
Weight : 60 g
Accessories and attachments : Instruction Manual
Screws (Inch type) x 2
10.5
7.5
9
53 62
71
76.5
70.2
22.4
COMP/VBS OUT
Specification and appearance of this unit are subject to change for further improvement
without prior notice.

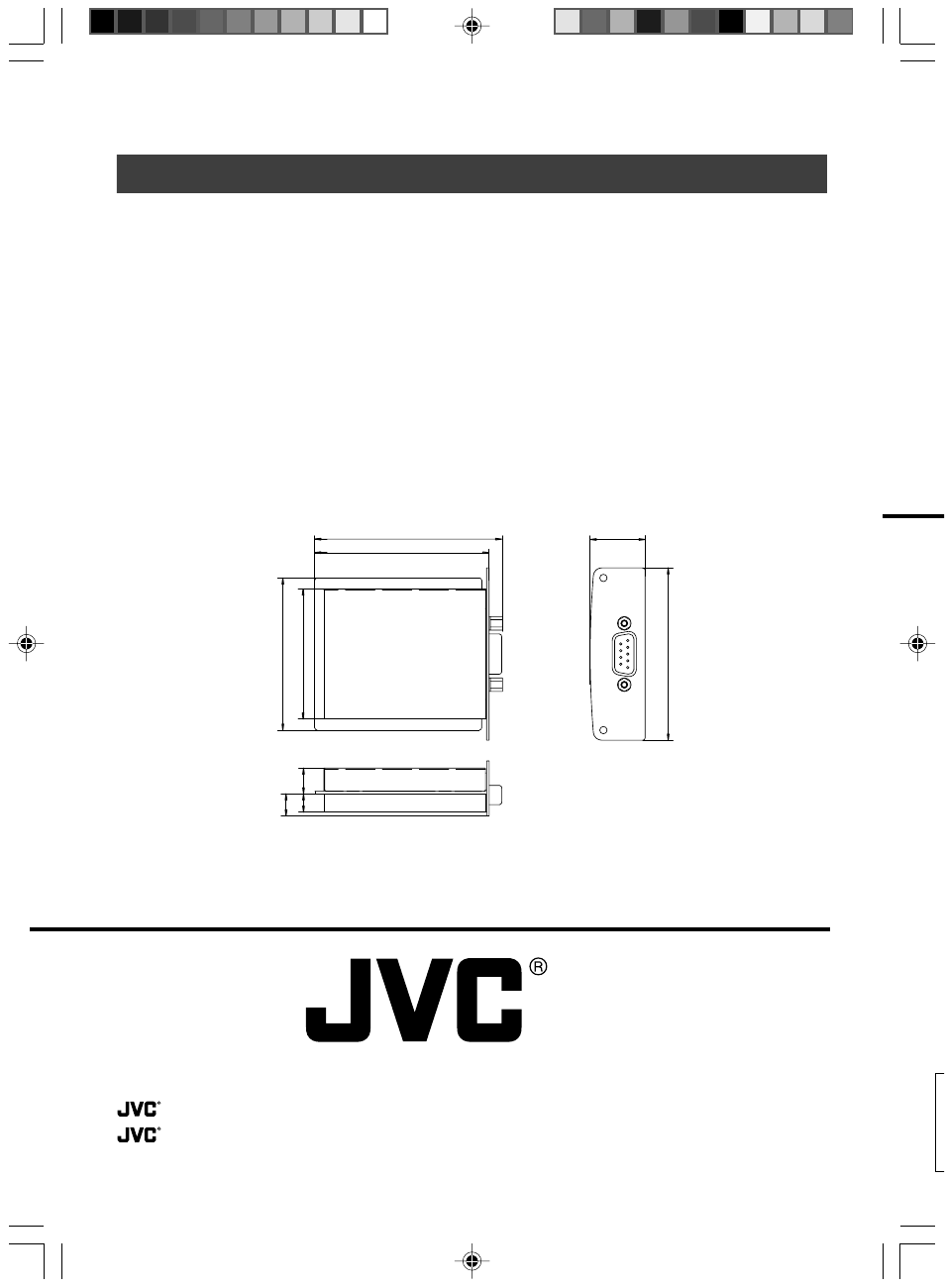

Ⅵ Dimensions ( unit : mm )
Specifications
