6

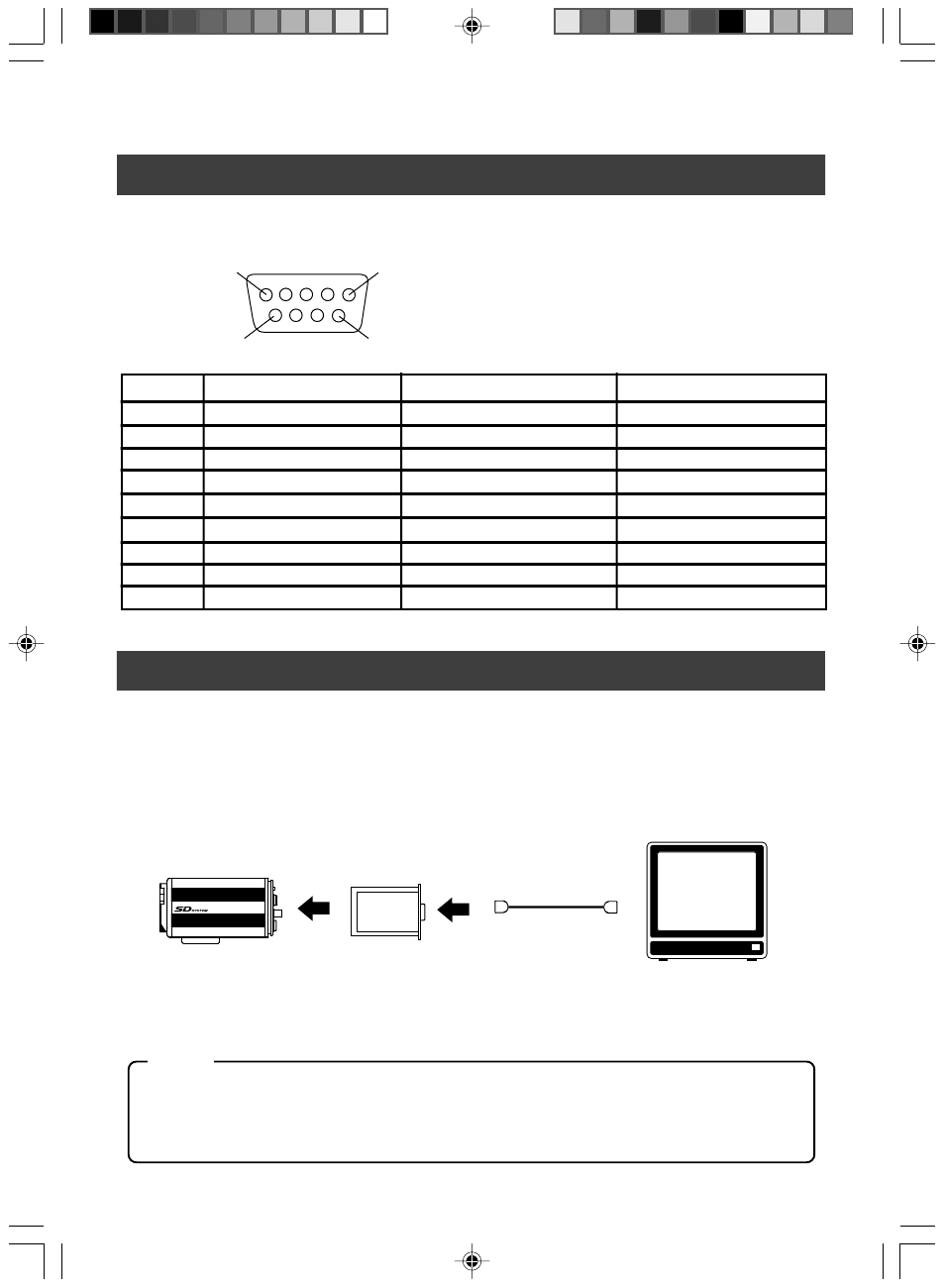

Description of Terminals
Analog Output Terminal (D-sub 9PIN,
Female)
Notes
● Cannot be connected to computer monitor.
● The output signal could be selected using
the “OUTPUT” item under the “SYSTEM”
menu screen on the KY-F560.(
☞ page 7)
Pin No. RGB output
1 GND
2 GND
3 R OUT
4 G OUT
5 B OUT
6 Composite video OUT
7 -
8 GND
9 GND
Y/C output
GND
GND
-
Y OUT
C OUT
Composite video OUT
-
GND
GND
Y/Cb/Cr output
GND
GND
Cr OUT
Y OUT
Cb OUT
Composite video OUT
-
GND
GND
1 5
6 9
Monitor
Color video camera
KY-F560
Analog output card
KA-F5604U
COLOR VIDEO CAMERA KY-F560
D-sub 9pin (2m)
Connection
[ Connection example ]
When connecting
● Perform this when the devices are off.
● Read the instruction manual of the unit before preforming it.
Notes
● Please make sure to the cable with outer shield when connecting the D-sub cable.
● The screw section for mounting D-sub cable of this unit is mm specification.
When using inch type D-sub cable, change to the supplied inch type screws.
