Preliminary knowledge
Names of parts and controls
Refer to the corresponding pages indicated in () for details.

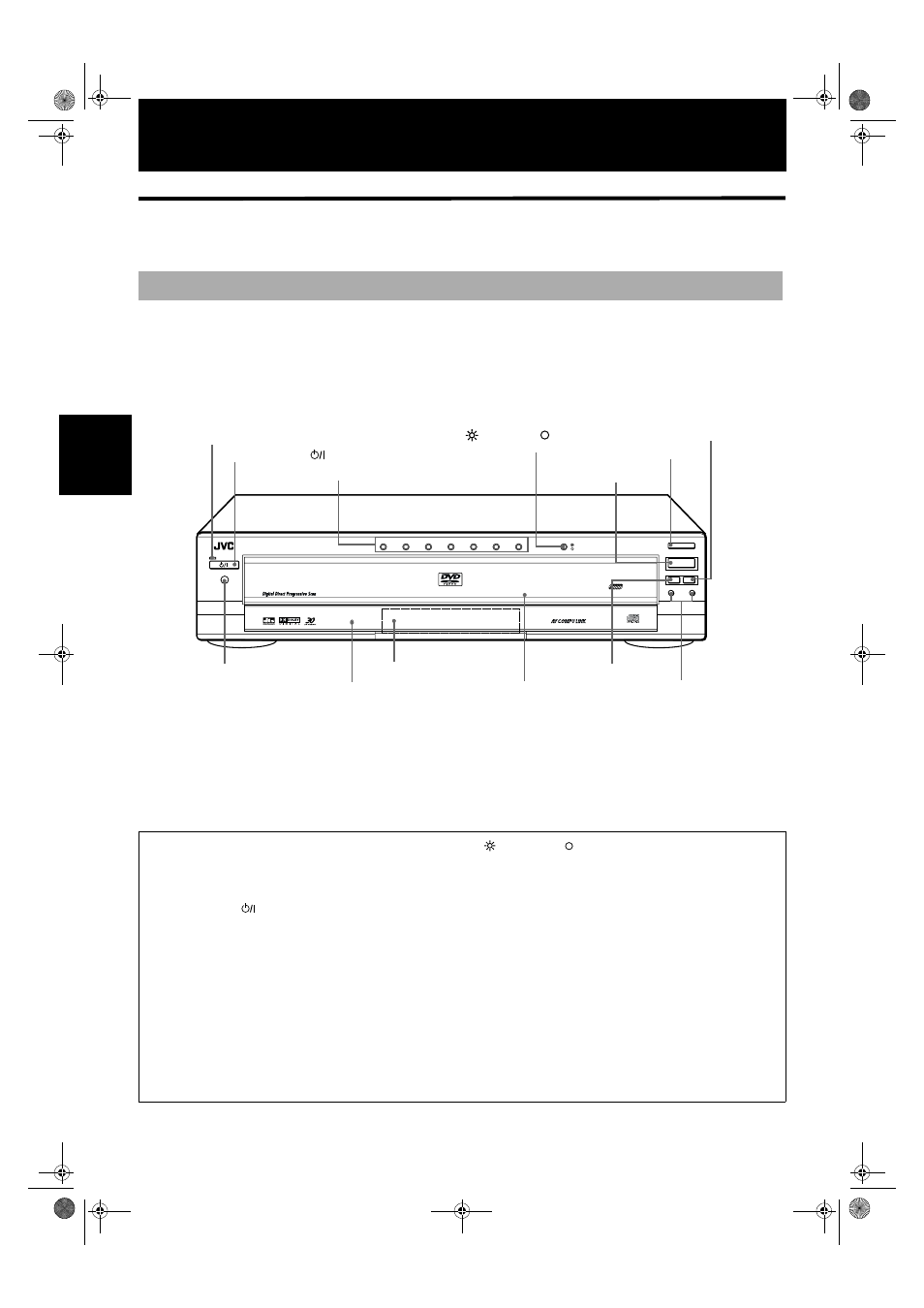

Front panel
1 STANDBY indicator (24)
Lights in red when the power cord is connected and
the unit is on standby. When the unit is turned on,
the STANDBY indicator goes off.
2 STANDBY/ON button (24)
Turns the unit on or off (standby).
3 DISC (1 through 7) buttons/indicators (26)
Select a disc set on the carousel to be played back by
pressing the appropriate button. The indicator on each
button shows the current status of the corresponding
disc/disc tray.
See “About DISC indicators (1 through 7)” on page 26
for details.
4 EXCHANGE/ DISC SKIP button/indicator (25, 28)
This button has two functions. When the indicator is
illuminated, pressing the button activates the play
exchange function. When the indicator is unlit,
pressing the button rotates the carousel.
• When the tray carousel is closed during playback,
pressing the button activates the play exchange
function and opens the carousel.
• When the tray carousel is open during playback, each
press of this button rotates the carousel to access other
trays except the one for the disc being played.
• When the tray carousel is open while stopped, each
press of this button rotates the carousel clockwise
by an amount of accessing the next two trays.
5 3 (PLAY) button (26)
Starts playback. Also, used as a SELECT button for
PBC of Video CDs.
STANDBY
STANDBY/ON
PROGRESSIVE
DVD / VIDEO CD / CD
PAUSE
PLAY
STOP
3
8 7
OPEN/CLOSE
0
SKIP ¢ 4
DVD/CD PLAYER
DISC 1 DISC 2 DISC 3 DISC 4 DISC 5 DISC 6 DISC 7
PLAY & EXCHANGE
7 -DISC
EXCHANGE
DISC SKIP
