ENGLISH
4

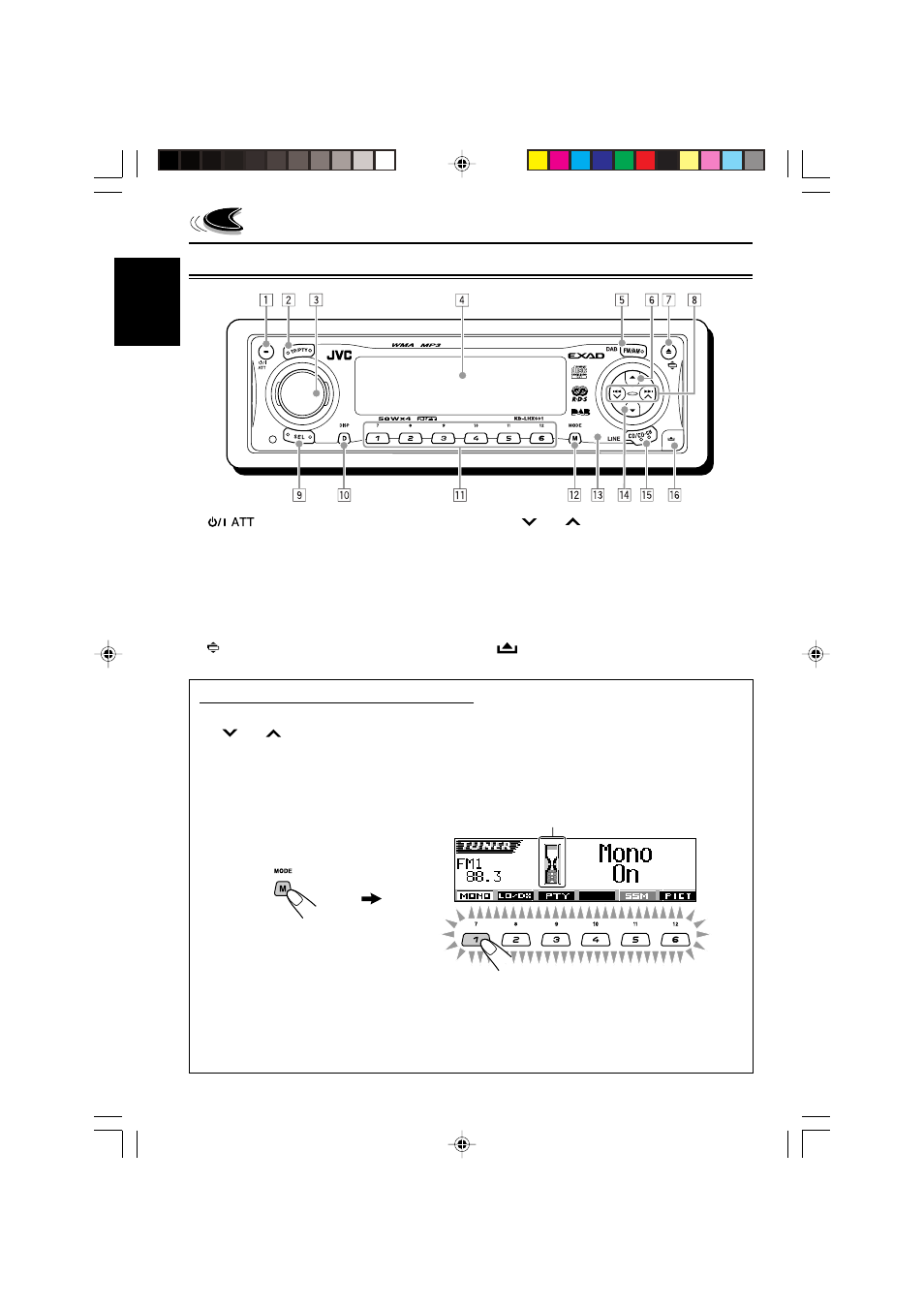

LOCATION OF THE BUTTONS
Control panel
Illumination Navigation for easy operations
If you use M (MODE) or SEL (select), the display and some controls (such as the number buttons,
4 /¢ , 5/∞, and control dial) enter the corresponding control mode, then the controls
start flashing to lead you to the next operational steps. (Illumination Navigation)
• The display shows how these buttons function during this period.
Ex.: When you press number button 1 after pressing M (MODE), to operate the FM tuner.
To use these controls for original functions again, wait until the controls stop flashing without
using these controls.
• Pressing M (MODE) again also restores original functions. However, pressing SEL (select)
makes the unit into a different mode.
Time countdown indicator
1 (standby/on/attenuator) button
2 TP/PTY (traffic programme/programme type)
button
3 Control dial
4 Display window
5 FM/AM DAB button
6
5 (up) button
7 0 (eject) button
(angle) button
8 4 /¢ buttons
9 SEL (select) button
p D (DISP: display) button
q Number buttons
w M (MODE) button
e Remote sensor
r
∞ (down) button
t CD/CD-CH (CD changer) LINE button
y
(control panel release) button
