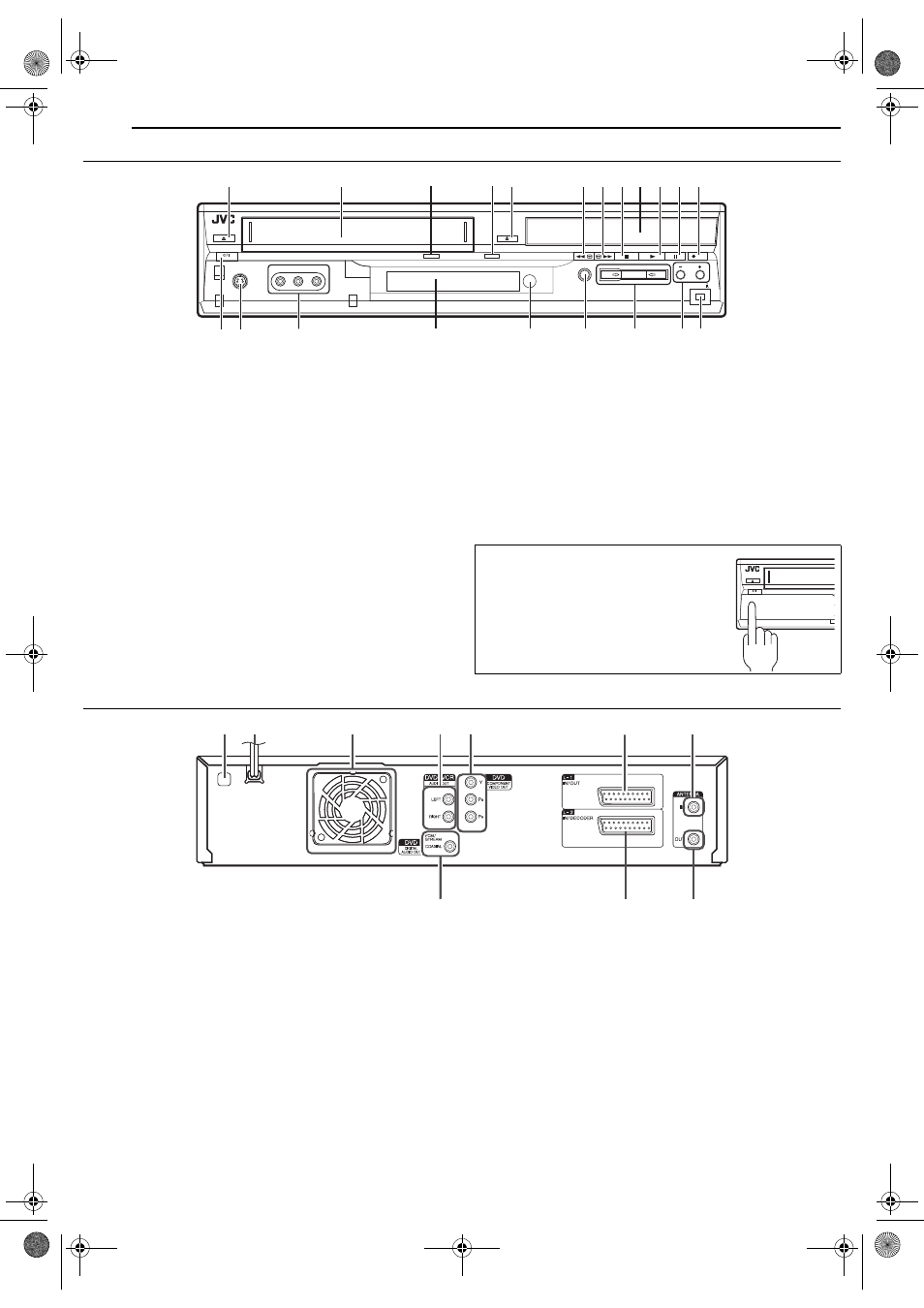

INDEX
Front View
A Eject Button (x (EJECT)) ੬ pg. 25
B Cassette Loading Slot
C VHS Lamp (VHS)
੬ pg. 25
D DVD Lamp (DVD) ੬ pg. 24
E Open/Close Button (x (OPEN/CLOSE)) ੬ pg. 9
F Reverse Search Button (3) (DVD deck) ੬ pg. 47, 54
Rewind Button (3) (VHS deck) ੬ pg. 59
G Forward Search Button (5) (DVD deck) ੬ pg. 47, 54
Fast Forward Button (5) (VHS deck) ੬ pg. 59
H Stop Button (8) ੬ pg. 24, 25
I Disc Tray
J Play Button (4)
੬ pg. 24, 25
K Pause Button (9) ੬ pg. 24, 59
L Record Button (7) ੬ pg. 26, 28
M Standby/On Button (STANDBY/ON 1)
N S-video Input Connector (S-VIDEO) (DVD deck only)
੬ pg. 42
O Video/Audio Input Connectors
(VIDEO/AUDIO ((MONO) L/R)) ੬ pg. 42
P Front Display Panel ੬ pg. 14
Q Infrared Beam Receiving Window
R VHS/DVD Select Button* (VHS/DVD)
੬ pg. 24, 25
* This button will not function during navigation mode or set up mode.
S Dubbing Button (DUBBING) ੬ pg. 38 – 40
Dubbing Direction Buttons (VHS]/}DVD) ੬ pg. 37 –
40
T Channel Buttons (PR +/–) ੬ pg. 26, 28, 41
U DV Input connector (DV IN (i*)) (DVD deck only)
੬ pg. 41
* i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
Rear View
A Region Number Label ੬ pg. 7
B AC Power Cord ੬ pg. 15
C Cooling Fan
● This prevents the temperature from rising inside the unit.
Do not remove it.
● Install the unit so as not to block the area around the fan.
● The cooling fan on the rear of the unit may be activated even if
the unit is turned off in the following cases;
— In the Automatic Satellite Programme Recording standby
mode ( ੬ pg. 36), slightly before the starting time of VPS/PDC
recording (
੬ pg. 30)
— If you connect the decoder or the satellite receiver to the [L-2
IN/DECODER] connector and if “L-2 SELECT” is set to
“DECODER” or “SAT VIDEO/RGB”. (
੬ pg. 44)
— “JUST CLOCK” is set to “ON” ( ੬ pg. 88)
(Set “JUST CLOCK” to “OFF” if you mind the noise of the fan.)
D Audio Output Connectors (AUDIO OUTPUT (LEFT/
RIGHT)) ੬ pg. 16, 43
E Component Video Output Connectors (COMPONENT
VIDEO OUT) (DVD deck only) ੬ pg. 16
● This component video output enables you to watch the images on
the VHS deck in Progressive scan mode, refer to “VHS
Progressive Scan” (
੬ pg. 60).
F L-1 Input/Output Connector (L-1 IN/OUT) ੬ pg. 15, 43,
76, 77
G Antenna Input Connector (ANTENNA IN) ੬ pg. 15
H Digital Audio Output Connector
(DIGITAL AUDIO OUT (COAXIAL)) (DVD deck only)
੬ pg. 46, 77
I L-2 Input/Decoder Connector (L-2 IN/DECODER)
੬ pg. 43, 76, 77
J Antenna Output Connector (ANTENNA OUT) ੬ pg. 15
VHS/DVD
DVD VHS REC
VHS DVD DUBBING
PR
DV IN
STANDBY/ON
S-VIDEO VIDEO AUDIO
M
C D F E G H I J K L B A
N P Q R S U O T
To access covered connectors, push and
open the connector cover.
STANDBY/ON
S-VIDEO VIDEO AUDIO PUSH-OPEN
A C E B F G D
J I H
