Sheet SKU#011108 Revision 8/8/00

10369 N. Commerce Pkwy, Miramar, Florida 33025-3921 Voice: (954) 443-1100 Fax: (954) 443-1111

SB-F-MU94+, JL AUDIO, Inc 1997 • Page 2

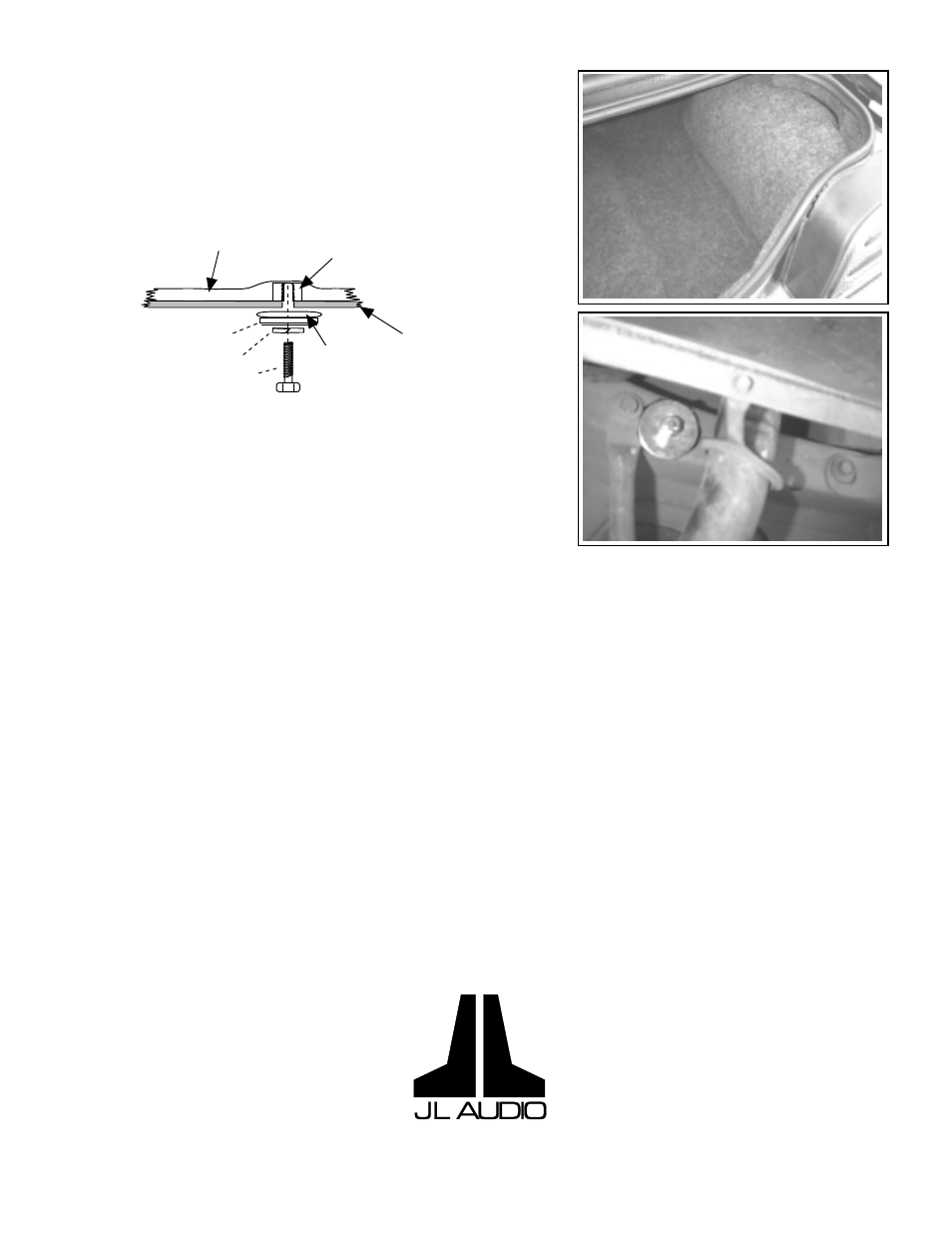

STEP 6: Connect speaker wires and test the enclosure.

STEP 7: Position the Stealthbox in its mounting location, making
sure it is aligned properly.

STEP 8: While one person holds the Stealthbox in place from
above, the other person inserts the bolt, lock washer and fender
washers from underneath the vehicle. Put a bead of silicone
sealant between the car's sheet metal and the fender washers.

STEP 9: Tighten box firmly.

3/8" Bolt

Split Lock Washer

Flat Washer

Car's Sheet Metal

Enclosure Wall (fiberglass)

Threaded Insert
Molded into
Enclosure

Bead of Silicone Sealant

2 Fender Washers

IMPORTANT!!!
Once the bolts are tightened, spray undercoating onto the bolt heads from underneath the car to
prevent rust, leaks and loosening of the bolts over time. Failure to do so may result in severe
corrosion and may create a safety hazard.
