TV buttons and functions
See the pages in brackets for details.
1
Remote control sensor
2 Power lamp (page 12)
3 TV/VIDEO button (page 28)
4 MENU/OK button (page 28)
5 CHANNEL p buttons
6 buttons (page 28)
6 VOLUME q buttons
5 buttons (page 28)
7 A (power) button
8 TV button
9 CH q buttons
0 VIDEO button
- PC/HDMI button
= VIDEO-4 terminal (page 46)
~ Headphone jack (mini jack) (page 46)
! PC IN (D-SUB) terminal (page 45)
@ POWER button
Turn the TV on from standby
mode
Press the TV A button, CHANNEL p
buttons, or the receiver POWER
button to turn the TV on from standby
mode.
When the TV is turned on, the power lamp
lights blue.
• The TV power is not turned on by
pressing the receiver CH q buttons.
To turn the TV off:
Press the A button again.
The power lamp goes off.
Caution
• The A button on the TV does not fully
isolate the TV from the AC supply. If
you are not going to use the TV for a
long period, be sure to disconnect the
AC plug from the AC socket.
TV
PC IN(D-SUB) POWER
CH-
VIDEO-4
CH+ VIDEO PC/HDMI S-VIDEO VIDEO AUDIO L/MONO R
DI GI T AL HI- V I S I O N P LA SM A D I S PLAY RE C I E V E R

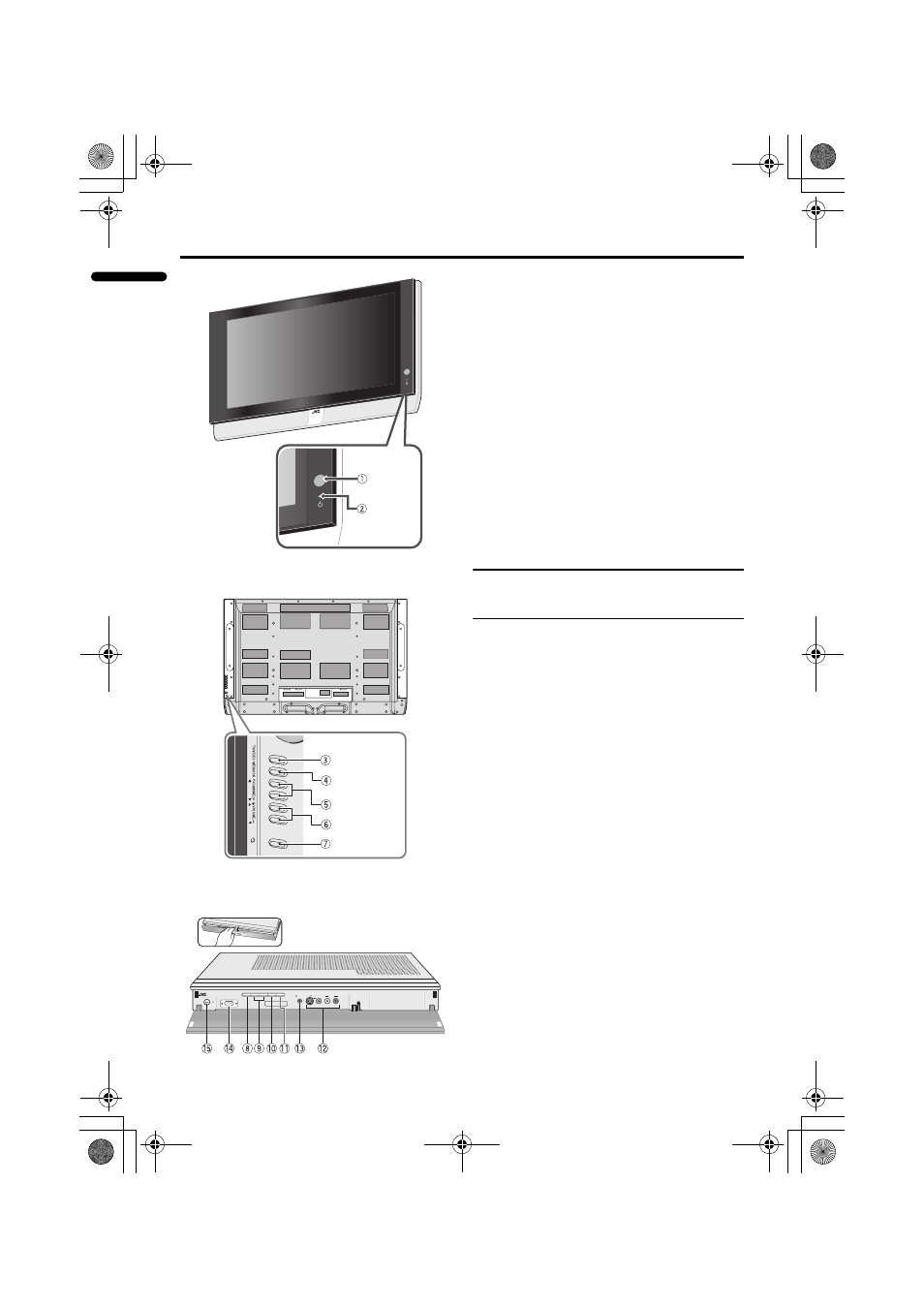

TV (front)
