SB-SC-XBG1/10W1v2 INSTR_SKU# 011283
s t e P 7

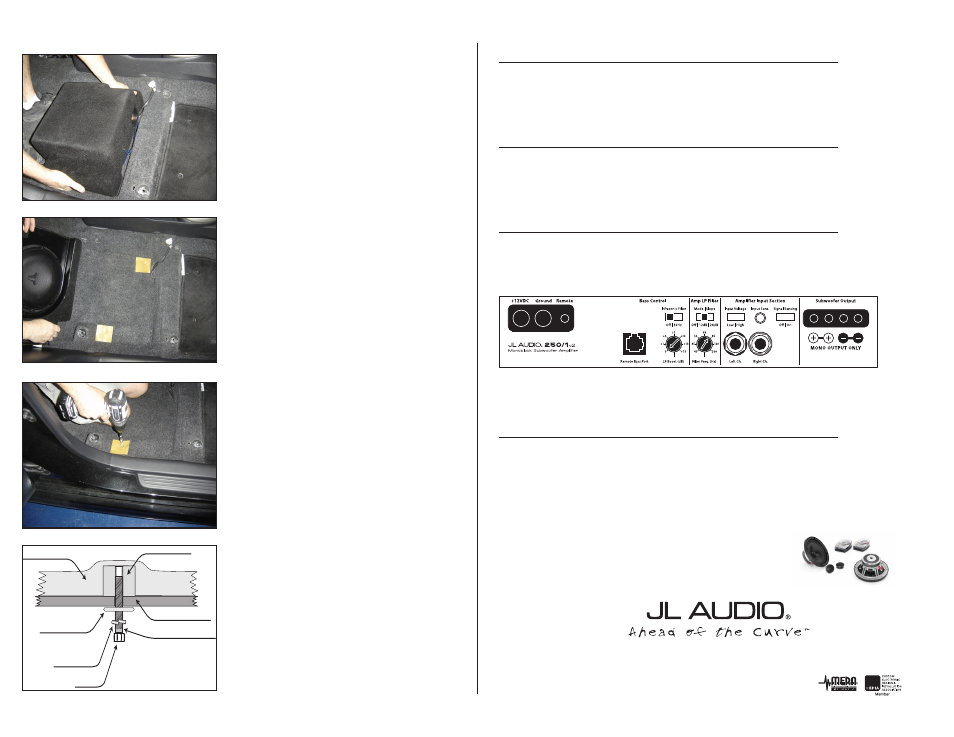

Install included hardware as shown on each of the 3/8-16
x 2 1/4” Set Screws. Connect the wire from the amplifier,
re-install the seat that was removed at the start, plug in the
seatbelt sensor that was unplugged.
C o n G R a t u l a t I o n s !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
s t e P 6
Using the identations made in step 5 as a guide, drill a 1/2”
hole through the floor in both locations.
*CAUTION*
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
transmission lines, electrical wiring, exhaust systems
or anything else that might cause a reduction in
your weekly pay. always wear eye protection when
drilling.
s t e P 5
If indentations are not produced as shown after Step 4, back
the 3/8-16 x 2 1/4” Set Screws out of the enclosure in 1/8”
increments and repeat step 4 until there are two clearly
defined indentations in the 3” x 3” Wax Squares.
Once the identations are made, back out the 3/8-16 x 2 1/4”
Set Screws until approximately 1 1/4” is exposed. This is also
a good time to verify the performance of the subwoofer
before mounting it.
s t e P 4
Place the enclosure in position, pushing down so that
indentations are produced in the 3” x 3” Wax Squares as
shown in step 5.
Page 2 • JL Audio, Inc 2008
STEALTHBOX WALL
THREADED INSERT
VEHICLE SHEET METAL
FENDER WASHER
SOCKET CUP SET SCREW
LOCK WASHER
HEX BOLT
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# ******** **-**-2008 • Printed in USA • ©2008 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100 w w w. j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I n C l u d e d H a R d W a R e
2) 3/8” Split Lock Washer 2) 3/8” x 1 1/4” Fender Washer
2)3/8-16 x 2 1/4” Set Screw 2) 3/8-16 Hex Nut
2) 3” x 3” Wax Square
s P e C I F I C a t I o n s
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W1v2-4
Nominal Impedance: 4 Ohms
Continuous Power Handling: 300 Watts
P o W e R R e C o m m e n d a t I o n
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1v2.
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 250/1v2
when being used to power your Stealthbox
® .
The JL Audio 250/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
m I d / H I G H F R e q u e n C Y d R I v e R F I t m e n t
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6 1/2””- Front Doors
Fits JL Audio Models: TR650-CXi, TR650-CSi, VR650-CXi, VR650-CSi, C5-650, C5-650x & ZR650-CSi
Rear Speaker Size / Location: 6 1/2”- Rear Door
Fits JL Audio Models: TR650-CXi, TR650-CSi, VR650-CXi, VR650-CSi,
C5-650, C5-650x & ZR650-CSi
