Quick Setup
1) Connect a yellow composite cable from the camcorder VIDEO OUT to the VIDEO IN on the
side of the TV.
2) Connect a white cable from the camcorder LEFT AUDIO OUT to the LEFT AUDIO IN on the
side of the TV.
3) Connect a red cable from the camcorder RIGHT AUDIO OUT to the RIGHT AUDIO IN on
the side of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
L/MONO on the side of the TV.
You may connect a camcorder, game console or other equipment to your television by using
the side input jacks (Input 4) located on the side of the television. You can also connect these
using the television’s rear input jacks, using the same instructions.
VOLUME
INPUT 4
CHANNEL
OPERATE
+
–
+
–
MENU
VIDEO
L/MONO
R
AUDIO
INPUT
CAMCORDER

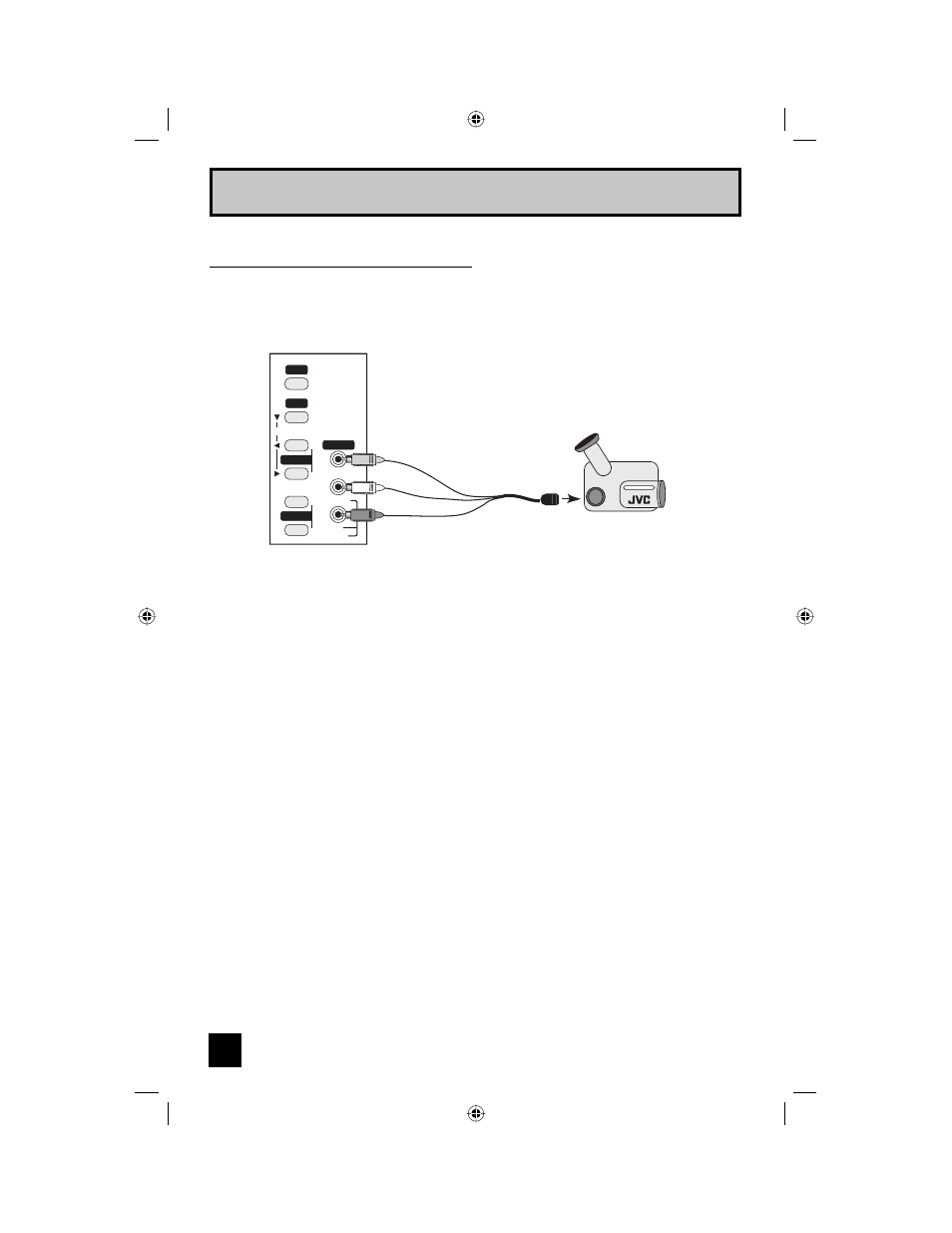

Connecting to a Camcorder
