“EL” (Port Extension Length)
10W3v3-2: 11.125 in. (283 mm)
10W3v3-4: 15.5 in. (394 mm)
10W3v3-8: 11.75 in. (298 mm)
10W3v3: 13.75 in. (349 mm)
JL AUDIO 10W3v3-2/10W3v3-4/10W3v3-8 3

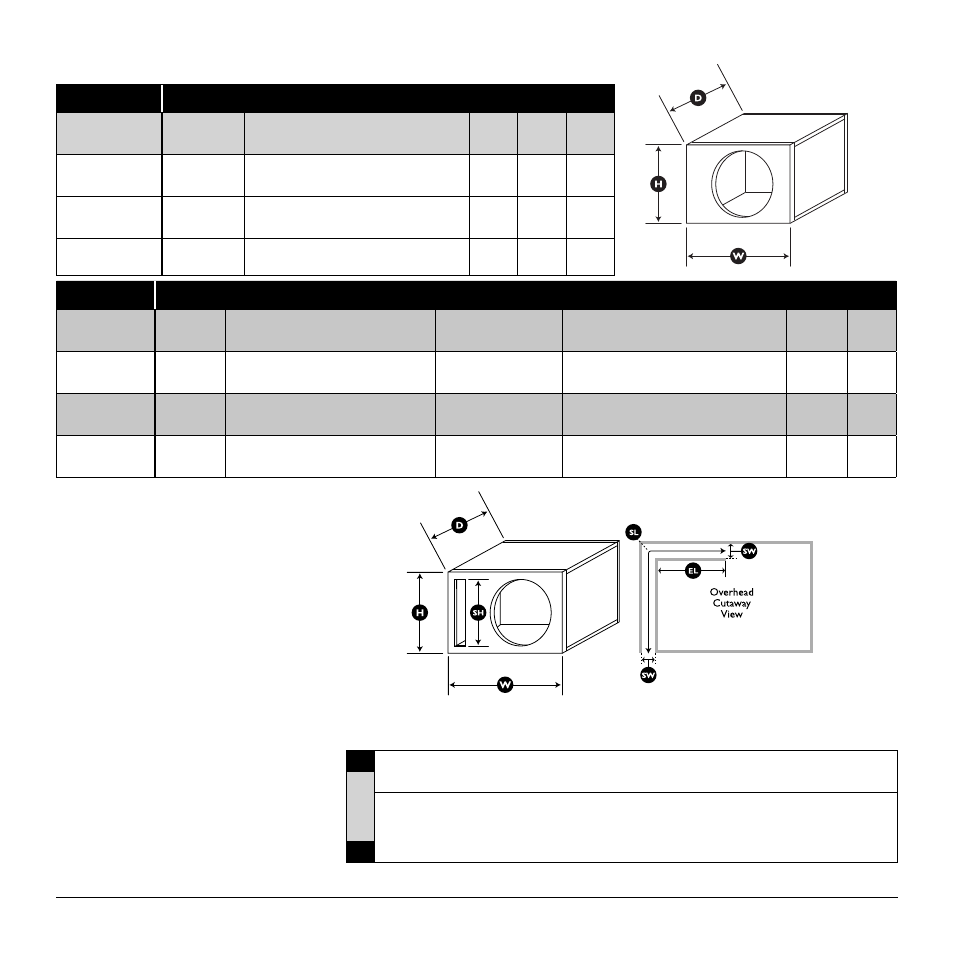

SUBWOOFER RECOMMENDED SEALED ENCLOSURES
Volume
(net int.)
External Dimensions
(Width x Height x Depth)
F3
(Hz)
Fc
(Hz)
Qtc
10W3v3-2
0.625 ft³
17.7 litres
18 in. x 11 in. x 9 in.
457 mm x 279 mm x 229 mm
48.3 55.3 0.831
10W3v3-4
0.625 ft³
17.7 litres
18 in. x 11 in. x 9 in.
457 mm x 279 mm x 229 mm
46.9 52.9 0.818
10W3v3-8
0.625 ft³
17.7 litres
18 in. x 11 in. x 9 in.
457 mm x 279 mm x 229 mm
47.8 54.7 0.829
All specifications are subject to change without notice.
SUBWOOFER RECOMMENDED PORTED ENCLOSURES
Volume
(net int.)
Enclosure External Dimensions
(Width x Height x Depth)
Slot Port Specs
Slot Area x Slot Length
Rec. Slot Port Internal Dimensions
Slot Width x Slot Height x Slot Length
Tune to:
(Hz)
F3
(Hz)
10W3v3-2
1.25 ft³
35.4 litres
23 in. x 12 in. x 12.125 in.
584 mm x 305 mm x 308 mm
13.125 sq. in. x 24.75 in.
84.7 sq. cm. x 629 mm
1.25 in. x 10.5 in. x 24.75 in.
32 mm x 267 mm x 629 mm
32.0 31.4
10W3v3-4
1.125 ft³
31.9 litres
23 in. x 12 in. x 13.125 in.
584 mm x 305 mm x 333 mm
13.125 sq. in. x 24.75 in.
84.7 sq. cm. x 629 mm
1.25 in. x 10.5 in. x 28.625 in.
32 mm x 267 mm x 727 mm
31.8 31.7
10W3v3-8
1.25 ft³
35.4 litres
23 in. x 12 in. x 13.75 in.
584 mm x 305 mm x 349 mm
13.125 sq. in. x 24.75 in.
84.7 sq. cm. x 629 mm
1.25 in. x 10.5 in. x 25.5 in.
32 mm x 267 mm x 648 mm
31.7 31.3
!!
CA
UTION
!!
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance
speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend
bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for
reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important
in a hatchback, station wagon, sports utility vehicle, or van.
• The enclosure recommendations listed are external
dimensions which assume the use of 3/4" (19mm)
thick material. If you are using 5/8" (16mm) thick
material, subtract 1/4" (6.5mm) from each dimension.
Do not use any material with a thickness of less than
5/8" (16mm) as this may compromise the rigidity of
the enclosure.
• All enclosure volumes listed are net internal volumes!
Box volume displacement, port displacement and
brace displacement must be added to obtain the final
gross internal volume. All enclosure dimensions listed
have already taken this into account.
• When using two subwoofers in a common
enclosure simply double the required volume and,
in the case of a ported enclosure, use two times the
recommended port(s).
• We recommend the use of this speaker in a
bi-amplified system using high-quality satellite speakers
and amplifiers. We do not recommend the use of this
subwoofer with a passive crossover (coil), as this type
of device will adversely affect performance.
