SB-GM-SLVCRW/10W1v2_INSTR_SKU#011173

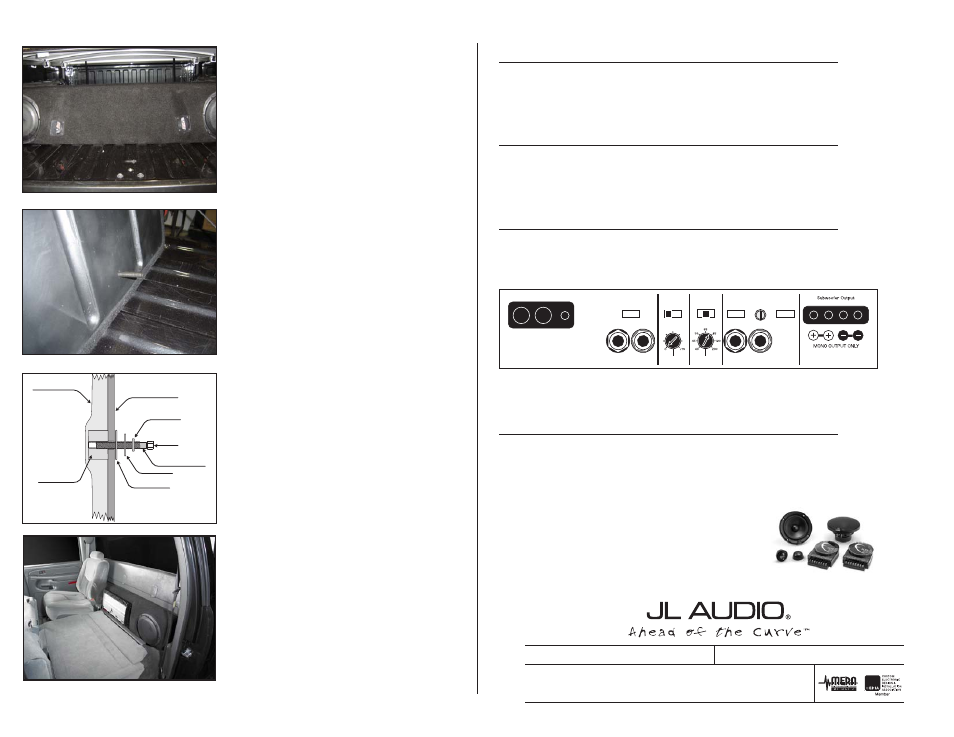

STEALTHBOX WALL
VEHICLE SHEET METAL
THREADED INSERT
LOCK WASHER
FLAT WASHER
SOCKET CUP SET SCREW
HEX NUT
FENDER WASHER
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please go back in the instructions in reverse to mount all
factory paneling back to it's original form.
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T e P 2 2
From inside the truck, position the Stealthbox® into the
mounting location. From the outside of the truck(between
the cab wall and the bed wall) place the supplied fender
washer, flat washer, lock washer and then nut onto each
exposed socket cup set screw. Use a long 3/8" open end
wrench or ratcheting box end to secure the mounting
hardware. If you have big hands and arms, time to get that
smaller friend of yours to help out.
Note: For added protection it is recommended that
you apply a bead of silicone between the vehicle and
the fender washer. After the bolt assembly is tightly
secured, it is also recommended that vehicle under-
coating material is applied to the exposed assembly.
S T e P 2 1
1500 Series Trucks
Thread in the pair of socket cup set screws into the back of
the Stealthbox®, leaving 1-1/2" of the threads exposed.
HD Series Trucks
Back out the pair of socket cup set screws,
leaving 1-1/2" of the threads exposed.
S T e P 2 0
If an amplifier is to be mounted onto the
Stealthbox
®.
Drill the mounting holes in the proper location. Apply
silicone to the four supplied Phillip head screws before
securing the amplifier.
Run speaker wire from the amplifier location to the speaker
terminals. Attach the speaker wire to the terminals.
Double check the woofers for proper operation.
Page 3 • JL Audio, Inc 2006
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU#011173; 09.21.2010 • Printed in USA • ©2006 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902
#6,243,479 #6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign
patents pending. For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100 w w w. j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D e D H A R D W A R e
(4) #10 x 3/4 Phillip pan head sheet metal screws (2) 3/8" - 16 x 2-1/4" Socket Cup Set Screw
(2) 3/8" Split Lock Washer (2) 3" x 3" Wax Squares
(2) 3/8" Flat Washer
(2) 3/8" x 1-1/4” Fender Washer
P O W e R R e C O M M e N D A T I O N
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W1v2-4
Nominal Impedance: 2 ohms mono
Continuous Power Handling: 300 Watts
P O W e R R e C O M M e N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1.
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 250/1 when
being used to power your Stealthbox
® .
JL AUDIO 250/1
monoblock subwoofer amplifier
Amplifier Input Section
Input Sens. Input V oltage
Low/High
Left Ch. Right Ch.
Signal Sensing
Off/On
Output Mode
Full-Range/Low-Pass/High-Pass
Left Ch. Right Ch.
Amp LP Filter
Mode/Slope
Off/12dB/24dB
Filter Freq. (Hz)
Bass Control
LF Boost (dB)
Off/30Hz
Infrasonic Filter
+1 +13
+3 +7 +10
Preamp Output Section +12VDC Ground Remote
The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R e q U e N C Y D R I v e R F I T M e N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6.5-inch / Front Doors
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x, C3-650, C5-650, C5-650x & ZR650-CSi
Rear Speaker Size / Location: 6.5-inch / Rear Doors
Fits JL Audio Models: TR650-CXi, C2-650x, C3-650, C5-650x
