Electrical Connection
Any electrical work required to install this appliance should
be carried out by a qualified electrician or competent
person.
WARNING: THIS APPLIANCE MUST BE
EARTHED. Should the appliance power
supply cable need to be replaced, this must
be carried out by a Service Force agent (see
page 27). The manufacturer declines any
liability should this safety measure not be
observed.

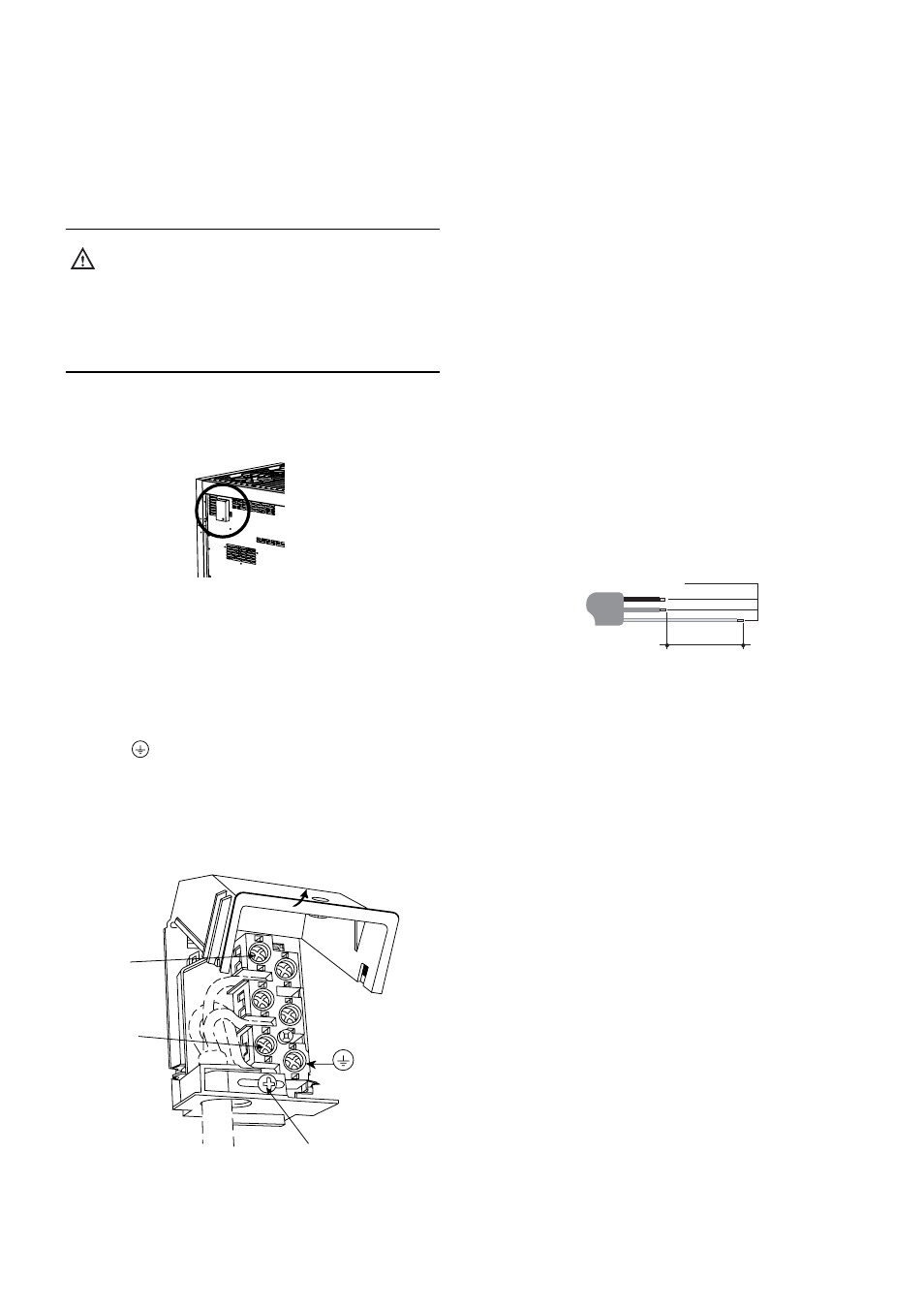

To replace the electric cable, it is necessary to access the
terminal board. It is located on the back of the appliance, at
the top left, (see diagram below).
Proceed as follows:
• Open the terminal board box;
• Unscrew the screw A that locks the cable;
• Loosen the screw contacts and replace the cable with one
of the same length that corresponds to the specifications
in the table in section "Electric power cable section";
• The "yellow-green" earth wire must be connected to the
terminal and must be approximately 20 mm longer
than the line cables;
• The neutral "blue" wire must be connected to the
terminal marked with the letter N;
• The line wire “brown” must be connected to the terminal
marked with the letter L.
Permanent connection
For permanent connection it is necessary to
install a double pole switch between the appliance and
the electricity supply (mains), with a minimum gap of 3mm
between the switch contacts and of a type suitable for the
required load in compliance with the current electrical
regulations.
The switch must not break the yellow and green earth
cable at any point.
Electric power cable section
According to the type of power supply, use a cable that
conforms to the following table.
Running at 230V1N~: use a tripolar cable type H05RR-F
(cable measuring 3 x 2.5 mm
2 ).
The end to be connected to the appliance must have the
earth wire (yellow-green) at least 20 mm longer.
.
