4

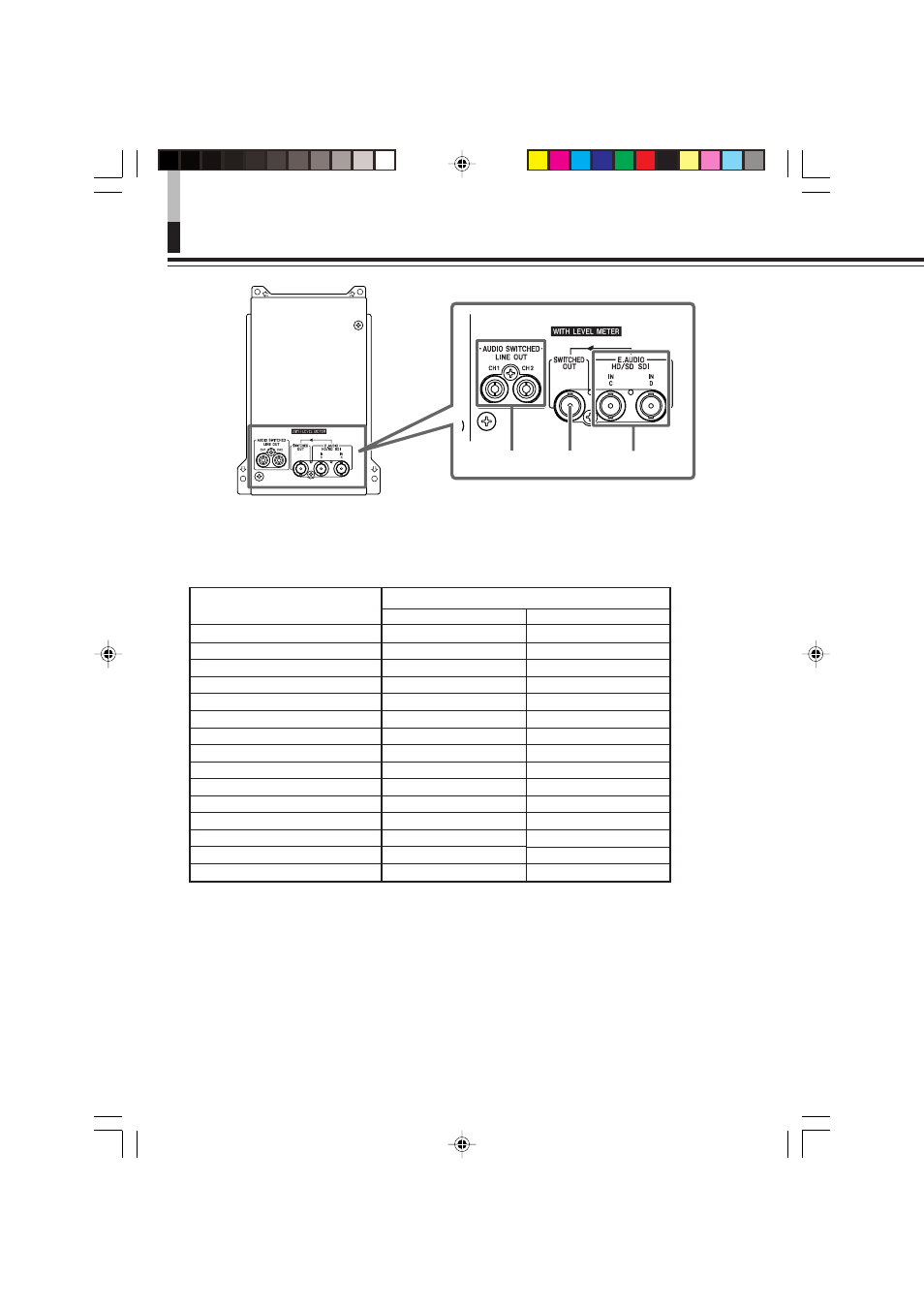

Controls and Features
1 2 3
1 Audio output terminals (2 lines)
Decodes EMBEDDED AUDIO signals and outputs them as analogue signals.
\ See the table below for the combinations of the audio channels output from the CH1 or CH2
terminal.
* The AUTO setting mixes and outputs all 8 signal channels. The output level is automatically set by
detecting the number of channels the signal has.
Audio output modes
1ch
2ch
3ch
4ch
5ch
6ch
7ch
8ch
1–2ch
3–4ch
5–6ch
7–8ch
1–4ch
5–8ch
AUTO*
CH1
channel 1
channel 2
channel 3
channel 4
channel 5
channel 6
channel 7
channel 8
channels 1+2
channels 3+4
channels 5+6
channels 7+8
channels 1–4
channels 5–8
channels 1–8
CH2
channel 2
channel 2
channel 4
channel 4
channel 6
channel 6
channel 8
channel 8
channels 1+2
channels 3+4
channels 5+6
channels 7+8
channels 1–4
channels 5–8
channels 1–8
Audio output terminals
About the audio output level
When several audio channels are output at the same time, the more channels are
selected, the lower each channel’s level will be. (Each channel’s level becomes half for 1–
2ch, quarter for 1–4ch.)
NOTES:
• When you change the monitor’s input to INPUT A or B, the audio signals and channels of INPUT C
or D selected last time are output from these terminals.
• The audio signal is output from these terminals only when the monitor is turned on.
