Index front view, Rear view – JVC HR-J631T User Manual
Page 44
44

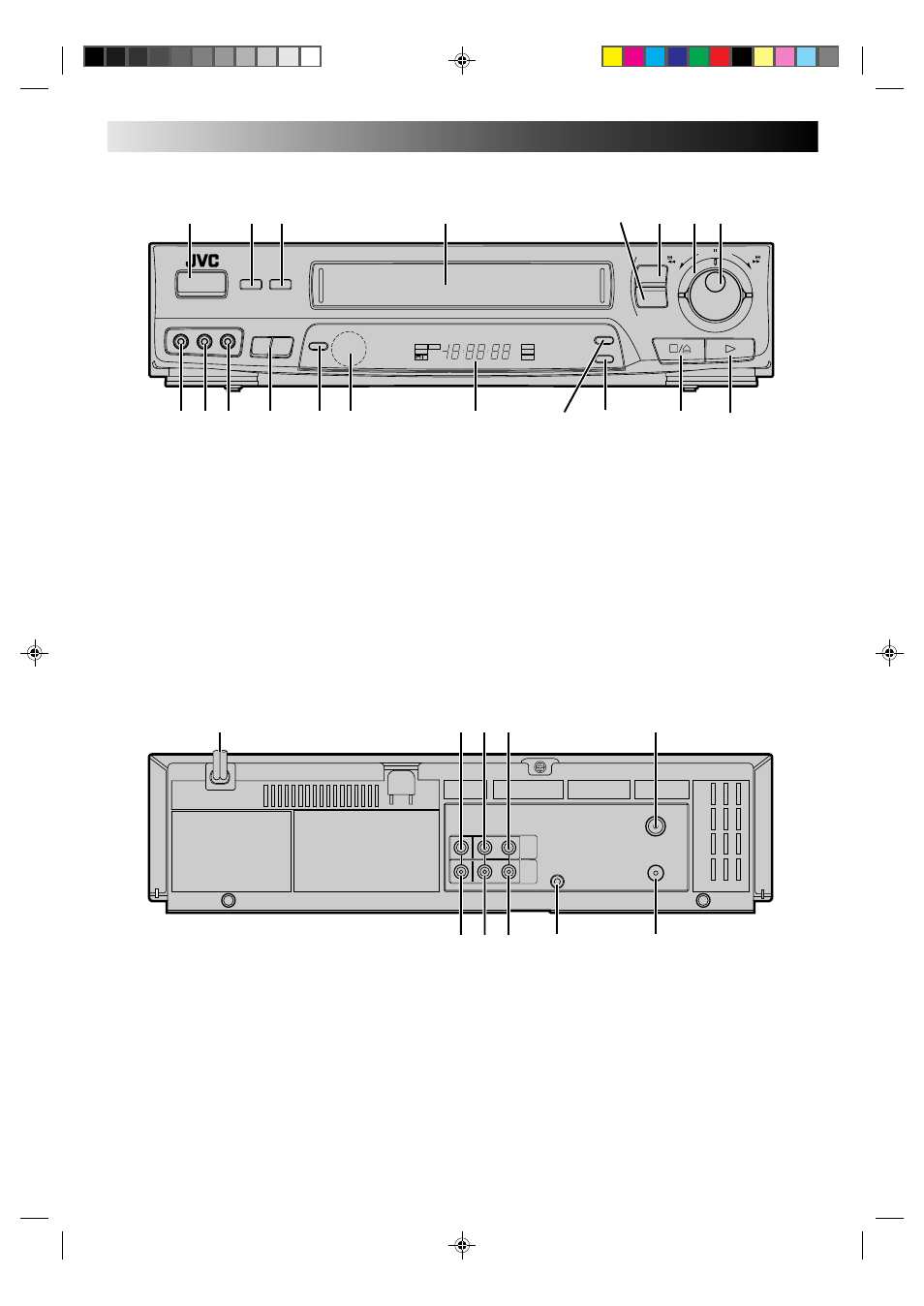

INDEX
FRONT VIEW
1 Power ON/OFF Button (
੬
pg. 5)
2 OK Button (
੬
pg. 5)
3 Menu Button (
੬
pg. 5)
4 Cassette Loading Slot
5 Record [REC] Button (
੬
pg. 13)
6 Pause Button (
੬
pg. 13)
7 SHUTTLE Ring (
੬
pg. 14)
8 JOG Dial (
੬
pg. 14)
9 Video Input Connector (
੬
pg. 36)
0 Mono Audio Input Connector (
੬
pg. 36)
Audio Input Connector [L] (
੬
pg. 36)
! Audio Input Connector [R] (
੬
pg. 36)
@ Channel
5∞ Buttons (
੬
pg. 5)
# Counter [C.] MEMORY Button (
੬
pg. 20)
$ Remote Control Sensor
% Front Display Panel (
੬
pg. 45)
^ Audio Dubbing [A. DUB] Button (
੬
pg. 39)
& CANCEL Button (
੬
pg. 32)
Counter [C.] RESET (
੬
pg. 20)
* Stop/Eject Button (
੬
pg. 12)
( Play Button (
੬
pg. 12)
REAR VIEW
1 Power Cord (
੬
pg. 4)
2 Video Input Connector (
੬
pg. 38)
3 Audio Input Connector [R] (
੬
pg. 38)
4 Mono Audio Input Connector (
੬
pg. 38)
Audio Input Connector [L] (
੬
pg. 38)
5 ANT. IN Connector (
੬
pg. 4)
6 Video Output Connector (
੬
pg. 4)
7 Hi-Fi Audio Output Connector [R] (
੬
pg. 4)
8 Hi-Fi Audio Output Connector [L] (
੬
pg. 4)
9 PAUSE connector (
੬
pg. 36)
0 RF OUT Connector (
੬
pg. 4)
RF OUT
ANT.IN
PAUSE
VIDEO
AUDIO
IN
OUT
R
L
(MONO)
1
2 3 4
5
0
6 7 8
9
FF
REW
A. DUB
MENU
VIDEO
(MONO)
L–AUDIO–R
∞
CH
5
POWER
OK
6
q
H
M
S
R E C
SAP
PAUSE
ST
PLAY
I T R
TIMER
VIDEO
M
SP
EP
AM
PM
CANCEL/
C. RESET
C.MEMORY
1
0
9
!
@
# $
%
&
*
(
2 3
4
7
5
^
6
8
