38
XV-C5SL/LET0227-003A/English
Add
itional
infor
m
a
tion
Additional information

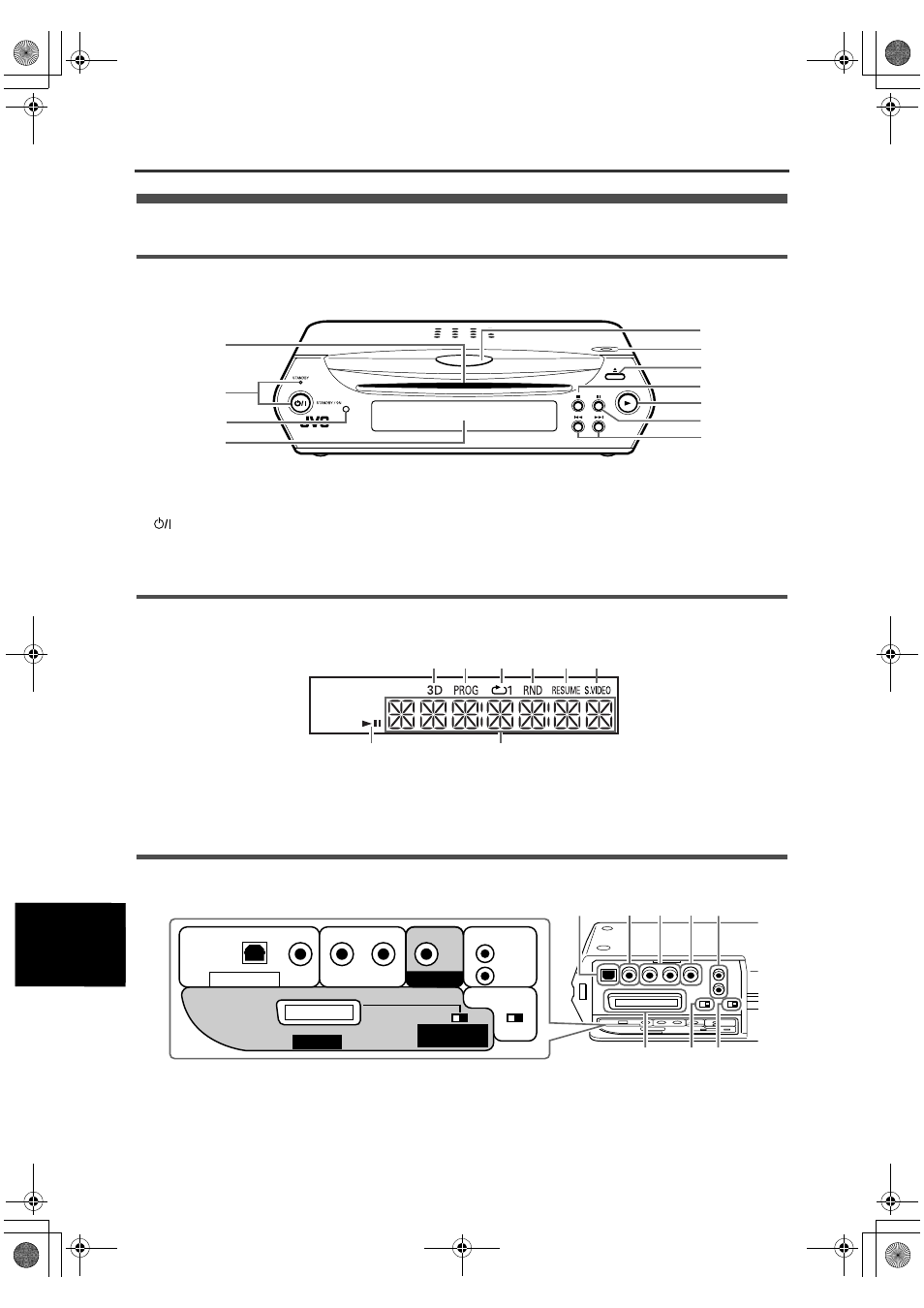

Names of parts and controls
Front panel
1 Disc slot (12)
2 STANDBY indicator (10)
STANDBY/ON button (10)
3 Remote sensor (8)
4 Display window (see the illustration below)
5 Illumination lamp (8, 12)
6 0 button (13)
7 7 button (12, 13)
8 3 button (12, 14)
9 8 button (13, 15)
0 4 / ¢ buttons (15)
Display window
1 3D phonic indicator
2 Program mode indicator
3 Repeat mode indicator
4 Random indicator
5 Resume indicator
6 S.VIDEO indicator
7 3 (play) / 8 (pause) indicators
8 Multi-information window
Connector panel
1 PCM/STREAM connector
2 COAXIAL jack
3 AUDIO OUT jacks
4 VIDEO OUT jack
5 AV COMPU LINK jacks
6 AV OUT connector
7 VIDEO SIGNAL SELECTOR
8 DIRECTION switch
1
2
3
4
3
9
0
6
8
7
5
1 2 3 4 5 6
8 7
1 3
6 8
4 5 2
7
PCM/STREAM
DIGITAL OUT
OPTICAL
AUDIO OUT
LEFT
COAXIAL
RIGHT VIDEO AV COMPU LINK
AV OUT
VIDEO SIGNAL
SELECTOR
VIDEO OUT
1 2 COMP./RGB Y/C
DIRECTION
