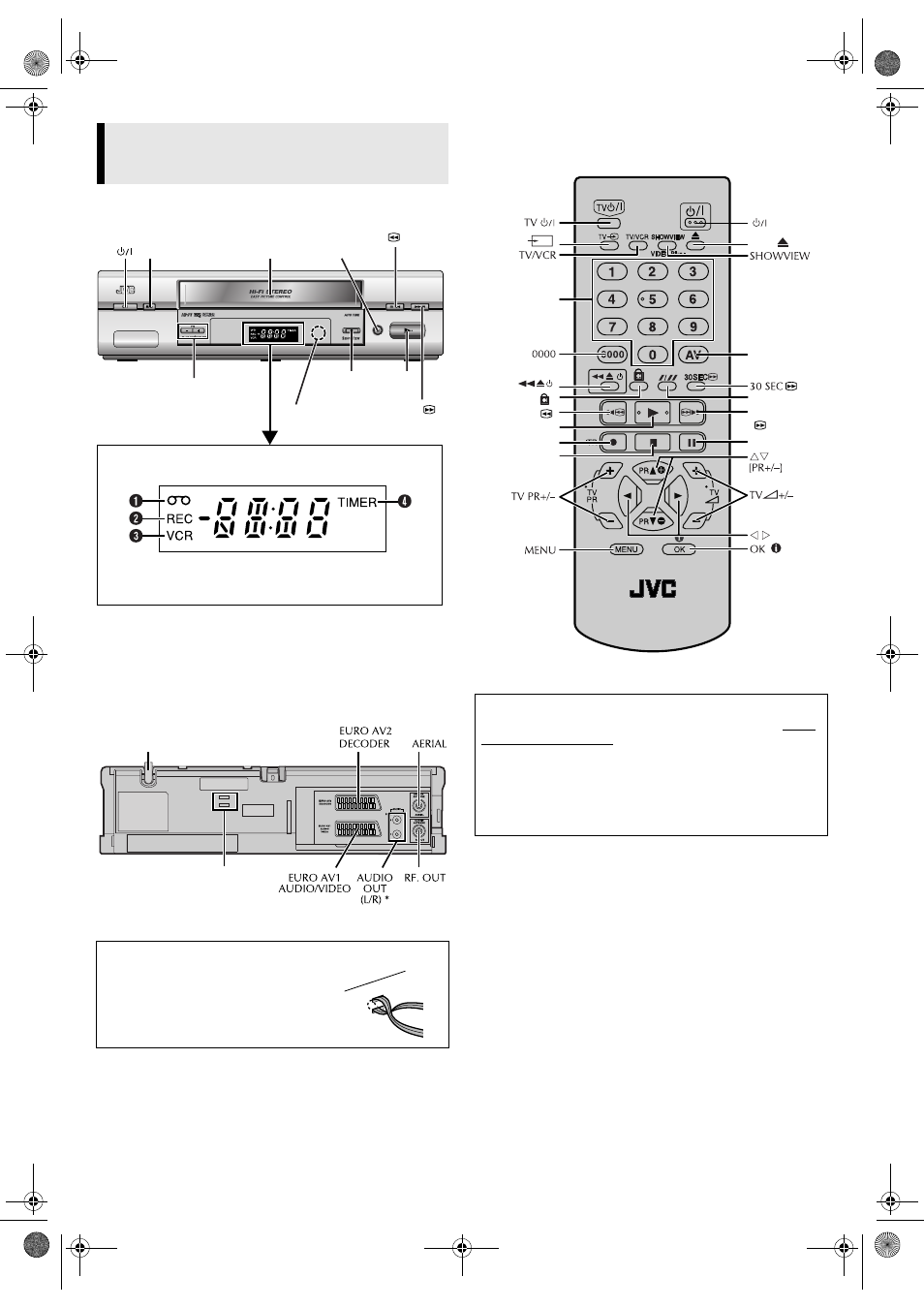

Front Panel
A Tape-in Indicator
B REC Indicator
C VCR Indicator
D Timer Indicator
Rear Panel
* HR-V505/V506/V507E only
Remote control
Buttons, Connectors and
Indicators
ATTENTION:
Do not drop the tying band for fixing the
main power cord into the inside of the
recorder. It may cause a malfunction.
Cassette
loading slot
PR +/–
Display panel
Infrared beam
receiving window
Pause9
Playe
Stop/Eject0
Record7
Rewind 3
Fast
Forward5
Mains power cord
See “ATTENTION”
below.
About 1 Button
When you press 1 on the recorder and remote control while
the recorder is turned on, each button works differently.
On the recorder
When you press 1, the recorder is turned off completely.
On the remote control
When you press 1, the recorder enters the standby mode.
The clock display will be auto dimmer. To turn off the recorder
completely, press 1 on the recorder.
Number keys
Rewind3
Record7[ITR]
Play4
Fast Forward
5
Pause9
Stop8
Child Lock
Eject
Easy Power
off
AV
SP/LP (p)
TV
