Step 2. Cable routing -IMPORTANT
(a) If running the cable along the wall surface,
position cable through slot at base of mounting
bracket before installing mounting bracket (see
figure A).
(b) If the cable needs to be ran through a wall or
ceiling, then an additional hole will need to be
drilled using the 3/8” drill bit. Drill the hole in the
center of the three mounting screw holes (see
figure B). Fit connector and cable through hole
before securing the mounting bracket.

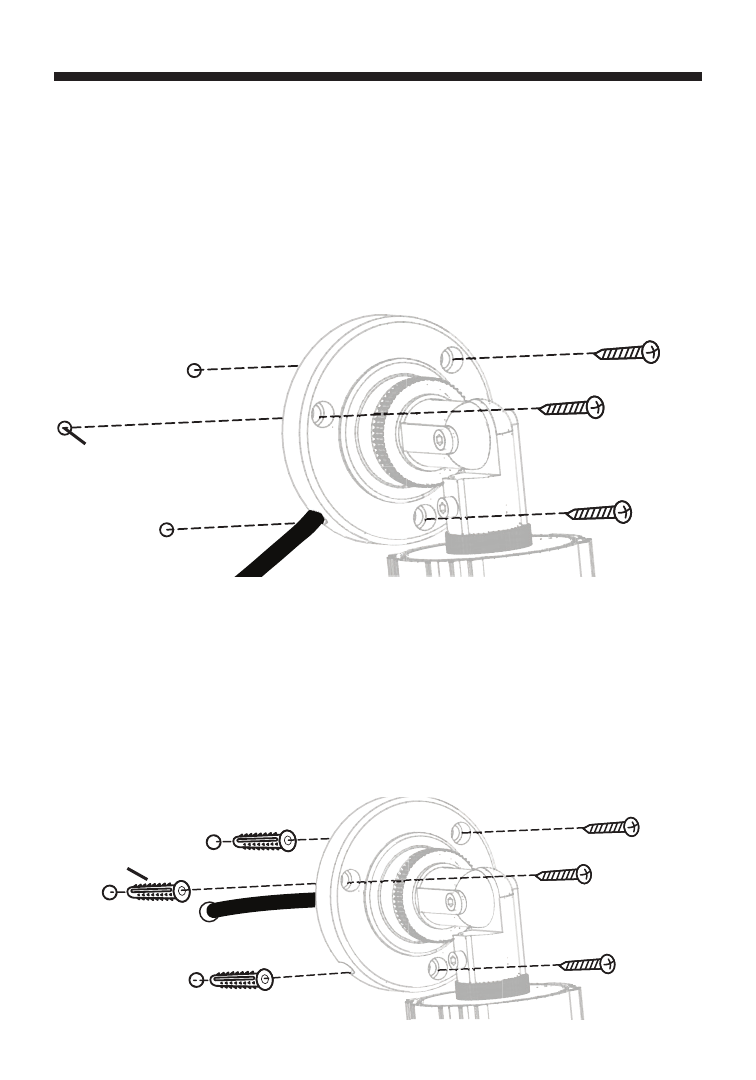

Figure A (Running cable on surface of wall)
Pilot holes for
mounting screws
Plastic
anchors
Figure B
