Jacuzzi OPTICATM 300 User Manual

Optica

OPTICA

™

300

SHOWER MIXER/TRANSFER VALVE

INSTALLATION INSTRUCTIONS

INSTALLER: LEAVE THIS INSTRUCTION MANUAL FOR OWNER'S/USER'S REFERENCE

WARNING: This system/device must be set by the installer to ensure safe, maximum temperature. Any change in
the setting may raise the discharge temperature above the limit considered safe and may lead to scalds.

CAUTION: As the installer of this valve, it is your responsibility to properly install and adjust this valve per the
instructions given. This valve does not automatically adjust for inlet temperature changes, therefore, it is necessary
to adjust the Rotational Limit Stop at the time of installation. You must inform the owner/user of this requirement by
following the instructions below. After installation and adjustment, you must write in the temperature and the date
you adjusted the Rotational Limit Stop on the warning label provided and apply or attach it to the hot water heater.
Be sure this instruction sheet is delivered to the owner/user.

WARNING: This pressure balanced bath valve is designed to minimize the effects of outlet water temperature
changes due to inlet pressure changes, commonly caused by dishwashers, washing machines, toilets and the like.
It may not provide protection from scalding when there is a failure of other temperature controlling devices elsewhere
in the plumbing system if the Rotational Limit Stop is not properly set, or if the hot water temperature is changed after
the Rotational Limit Stop is set, or if the water inlet temperature changes due to seasonal changes.

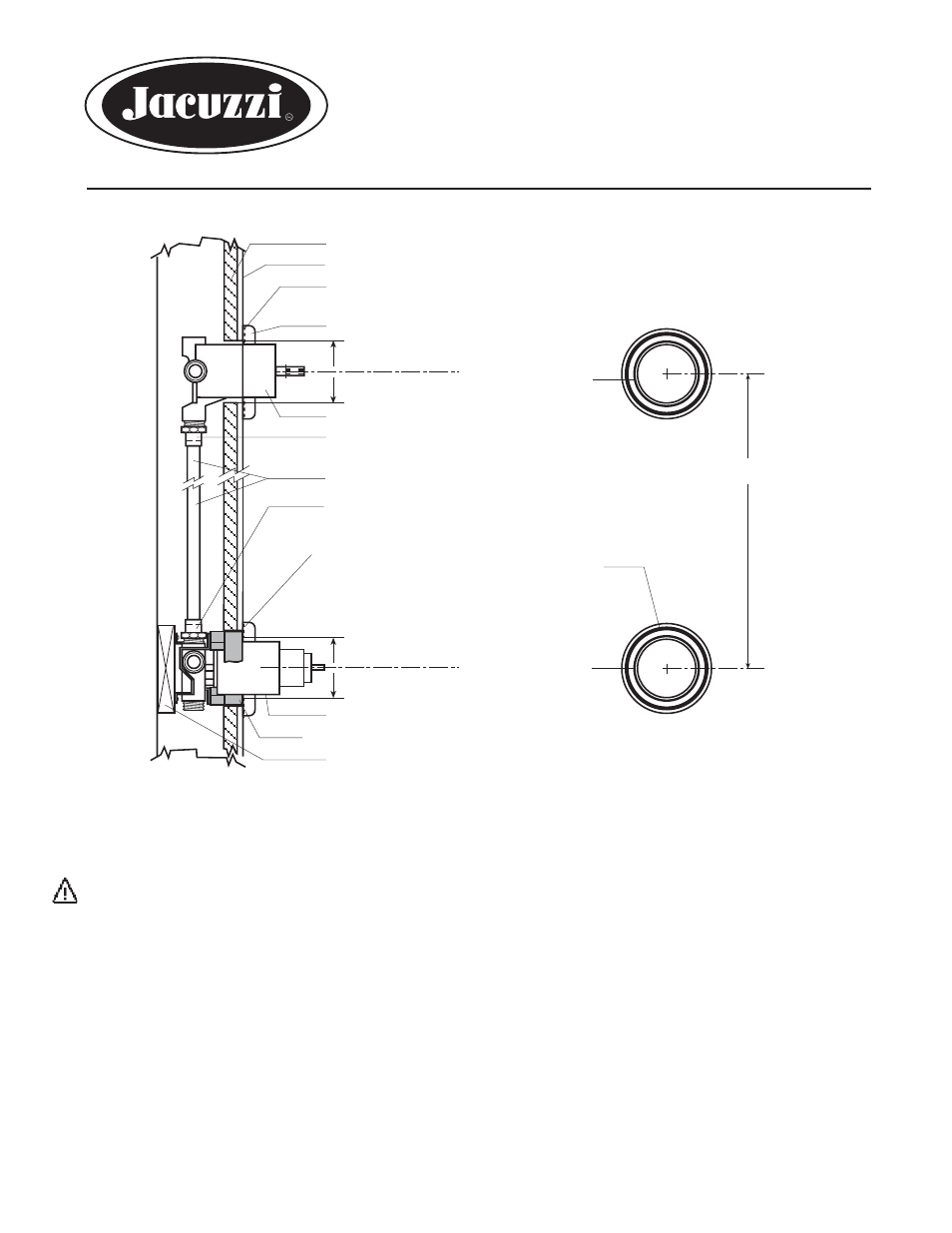

OPTICA 300

FINISHING WALL

TILE (FINISH SURFACE)

FACEPLATE (SEALANT NOT PROVIDED)

TRIM SLEEVE OF TRANSFER VALVE

GASKET

TRIM SLEEVE

2-3/8" DIA.

WOOD CROSS MEMBER

REAR VIEW

(FRONT HAS RED

AND BLUE DOTS)

GASKET

COPPER PIPE (NOT PROVIDED)

REAR VIEW

SEALANT (SILICONE) ON BACKSIDE OF

FACEPLATE

FEMALE THREAD TO SWEAT ADAPTOR

(NOT PROVIDED)

LEFT-HAND THREAD TO

SWEAT ADAPTOR (NOT PROVIDED)

4-15/16" MINIMUM

SEALANT (100% SILICONE) ON BACKSIDE OF

FACEPLATE (SEALANT NOT PROVIDED)

NOTE: WHEN INSTALLING BAND, RING, ROPE

OR FACETED HANDLE, PULL TRIM SLEEVE OUT

TO MEET HANDLE.

PLASTER GUARD
