37

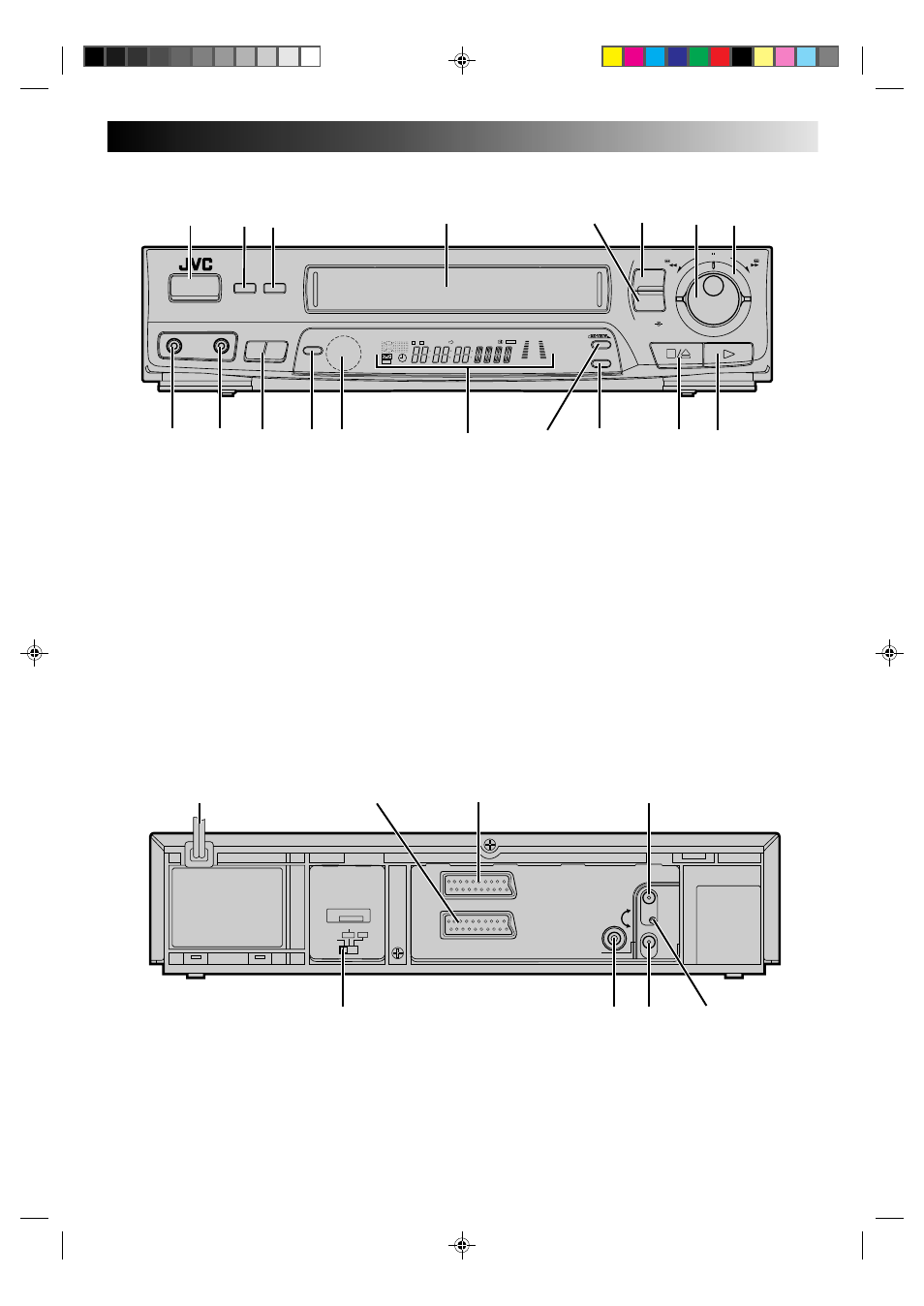

FRONT VIEW
1 Mains Power Cord (
੬
pg. 3)
2 AV1 IN/OUT Connector (
੬
pg. 3)
3 AV2 IN/DECODER Connector (
੬
pg. 4)
4 ANT. IN Connector (
੬
pg. 3)
5 AV2 SELECT/RF TEST Switch (
੬
pg. 4)
6 Remote PAUSE Connector [J438E only]
(
੬
pg. 27)
7 RF OUT Connector (
੬
pg. 3)
8 RF Output Channel Adjustment Screw (
੬
pg. 4)
REAR VIEW
FF REW
SHUTTLE
AUTO SP / LP
TIMER
TIMER
VIDEO AUDIO
SP/LP
– TV PROG. +
OPERATE
AUDIO
DUBBING
TV PROG / JOG
6
q
SP
LP
EP
M D
VIDEO D
I T R
W REMAIN
9 0 $ ! @ # & * ^
2 3 4 1 6 8 7 5
%
DECODER
AV2
AV2 SELECT
/ RF TEST
OFF ON
AV2 IN/DECODER
RF OUT
PAUSE
32
40
ANT. IN
AV1 IN/OUT
1 2 4
5 7 6 8
3
*Remove the cap to use the front panel connectors.
1 OPERATE Button ( ੬ pg. 5)
2 TIMER Button ( ੬ pg. 22)
3 AUDIO DUBBING Button [J438E] ( ੬ pg. 25)
COUNTER RESET Button [J238E] ( ੬ pg. 13)
4 Cassette Loading Slot
5 RECORD Button (
੬ pg. 14)
6 PAUSE Button ( ੬ pg. 10)
7 TV PROG. Dial ( ੬ pg. 14)
JOG Dial [J438E only] ( ੬ pg. 10)
8 SHUTTLE Ring ( ੬ pg. 10)
9 VIDEO Input Connector [J438E only] ( ੬ pg. 27)
0 AUDIO Input Connector [J438E only](
੬
pg. 25)
! TV PROG. +/– Buttons (
੬
pg. 5)
@ SP/LP [Tape Speed] Button [J438E only]
(
੬
pg. 14)
# Infrared Beam Receiving Window
$ Display Panel (
੬
pg. 38)
% REVIEW Button (
੬
pg. 11)
^ AUTO SP/LP TIMER Button [J438E only]
(
੬
pg. 24)
& STOP/EJECT Button (
੬
pg. 9)
* PLAY Button (
੬
pg. 9)
