Jacuzzi ProTech LCD - Manual (Page 14)

Page 10
BLUE
BLUE
BROWN
BROWN
1
2
US/Canada J-350 / J-360 / J-370 / J-380
Models: 240 VAC, 3-Wire Connection (60Hz)
Figure-D TB1
All Export J-350 / J-360 / J-370 / J-380
Models: 230 VAC, 3-Wire (50Hz)
to Circuit
Board
BLK
RED
Power In
RED
RED
BLK
BLK
1
2
Figure-C TB1
to Circuit
Board
Power In

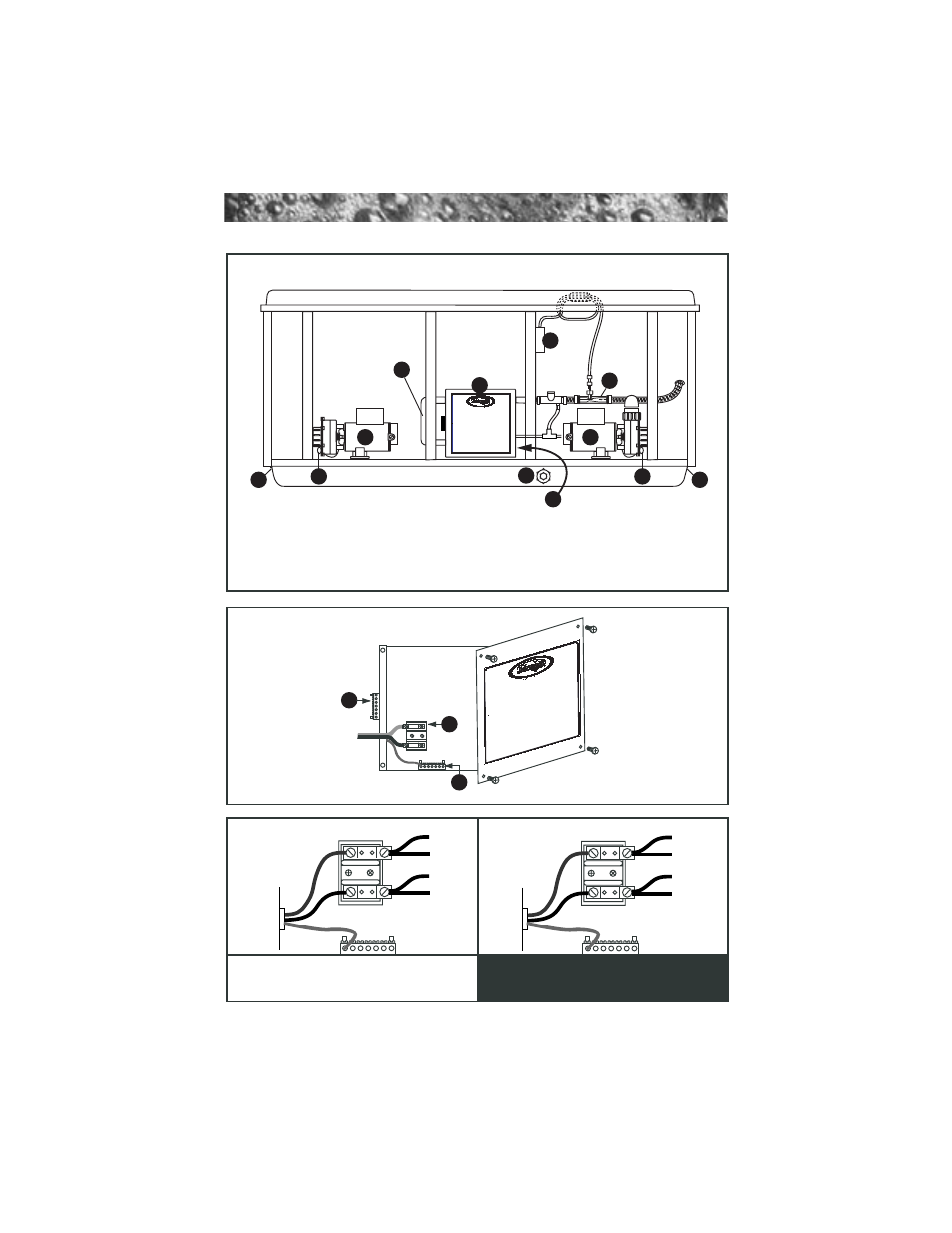

Figure-B - Control Box
Green
TB3
Green
TB3
10
4
3 7
3
1
2
2
2
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
Figure-A
Equipment Area
1. Control Box
2. Power Supply Entrance(s)
3. 2-Speed Pump #1
4. Heater
5. Spa Drain Valve
6. Pump Drain Plug(s)
7. 1-Speed Pump #2
8. Circulation Pump
9. Optional CD Ozonator (Purchased Separately)
10. Optional Mazzei Injector (Required for CD Ozonator
Use - Purchased Separately)
1
Flow
Note: Pump Locations Vary by Model
Circulation Pump
Behind Load Box 8
5 6 6
9
