OTHERS
Specifications
RM Multi-pin connector:
Composite video signal output
(Either Y/P
B /P R , RGB or YC separate output signal can be
selected)
PROMPTER output:
PROMPTER video signal output (composite signal)
Operating temperature range:
• –5°C to 40°C (Humidity below 80%)
Allowable storage temperature:
• –20°C to 60°C
Power supply voltage:
DC12 V
Power consumption:
Max. 40W (GY-HD250, VF-P400)
Mass:
Approx. 1.8 f
Accessories:
Instructions ........................................................................× 1

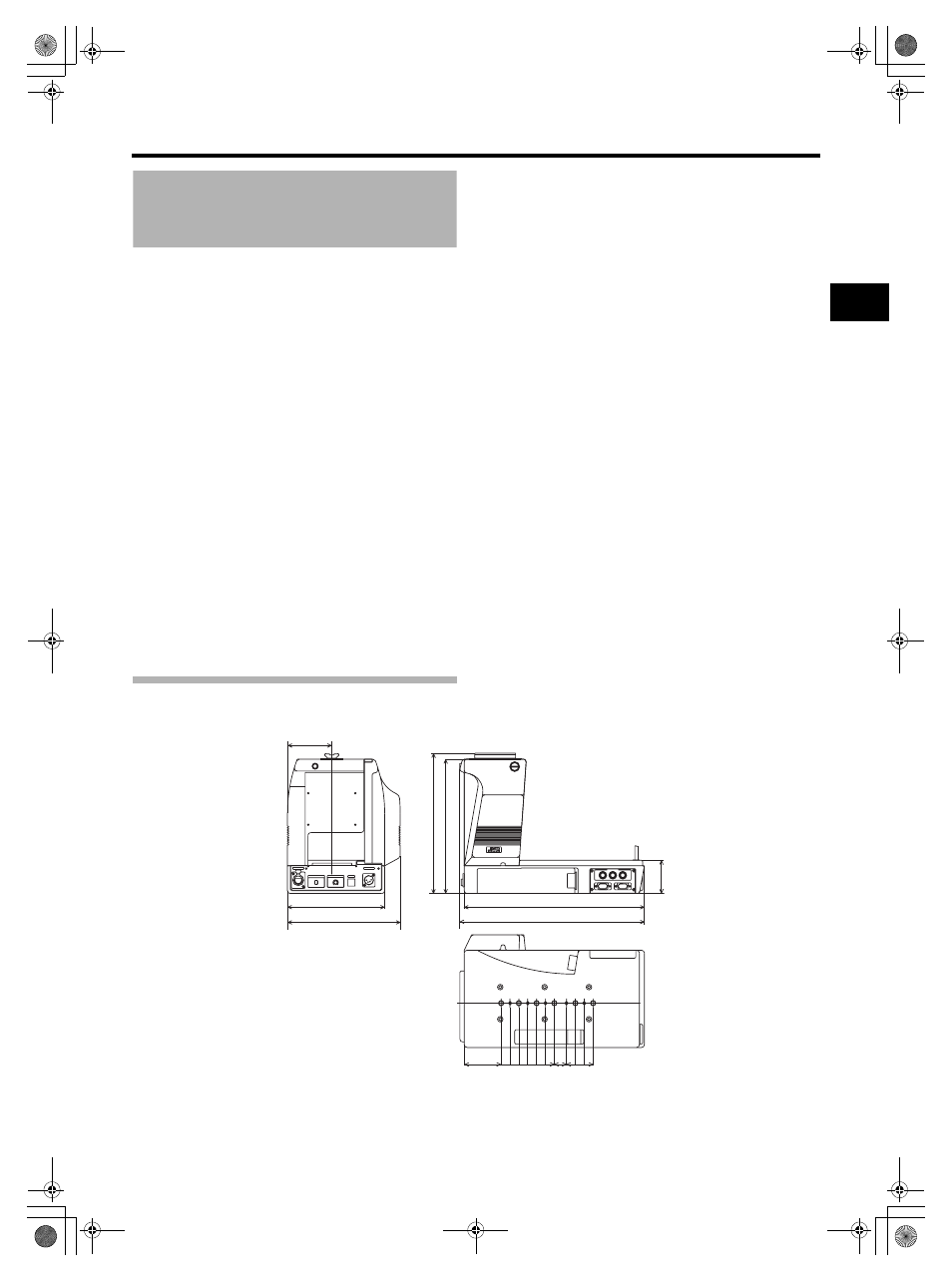

Dimensions (Unit: mm)
Specifications and appearance of this unit are subject to change for further improvement without prior notice.
VF OUTPUT
R/PR TALLY OUTPUT G/Y B/PB TALLY INPUT
INTERCOM
INTERCOM MIC INTERCOM LEVEL CALL
DC INPUT
ON
OFF MIN MAX
80
176
204
253
243
325
333
22
67
60
96(=6xP16) 48(=3xP16)
