Specifications:
Enclosure Type: Sealed
Driver Type: 10W3v2-D2
Nominal Impedance: 4
Ω
Cont. Power Handling: 300Watts

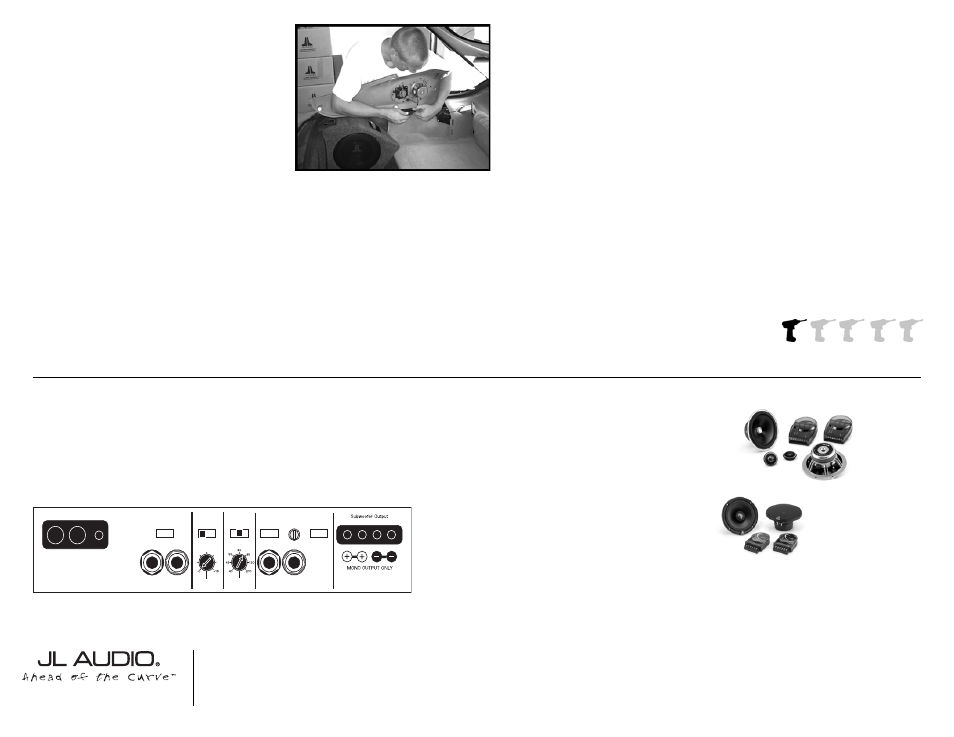

JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox®.
Included Hardware:
(4) #10 x 5/8” pan head self tap
10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111
JL AUDIO 250/1
monoblock subwoofer amplifier
Amplifier Input Section
Input Sens. Input Voltage
Low/High
Left Ch. Right Ch.
Signal Sensing
Off/On
Output Mode
Full-Range/Low-Pass/High-Pass
Left Ch. Right Ch.
Amp LP Filter
Mode/Slope
Off/12dB/24dB
Filter Freq. (Hz)
Bass Control
LF Boost (dB)
Off/30Hz
Infrasonic Filter
+1 +13
+3
+7
+10
Preamp Output Section +12VDC Ground Remote
The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for detailed information
about installing and tuning this amplifier.
➔
STEP 8: Reconnect the factory speaker wires
and replace the driver’s side trim panel over the
enclosure.
➔
S B - G M - C F M I N I / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 4 S h e e t S K U # 0 1 1 1 1 5 R ev i s i o n 8 / 2 / 2 0 0 4 Pa g e 2 w w w . j l a u d i o . c o m
Mid/High Frequency Driver Information:
CONGRATULATIONS!
INSTALL COMPLETE.
ZR650-CSi
XR650-CXi
Front Location Driver Size:
6.5”
Applicable JL Audio Products:
TR,VR,XR & ZR 650-CSi/CXi
Rear Location Driver Size:
6.5”
Applicable JL Audio Products:
TR,VR & XR650-CXi
Cont.
From
Previous
Page
Difficulty Of Installation:
