If the hob is to be installed above a cupboard or
drawer it will be necessary to fit a heat resistant
board below the base of the hob on the underside
of the work surface.

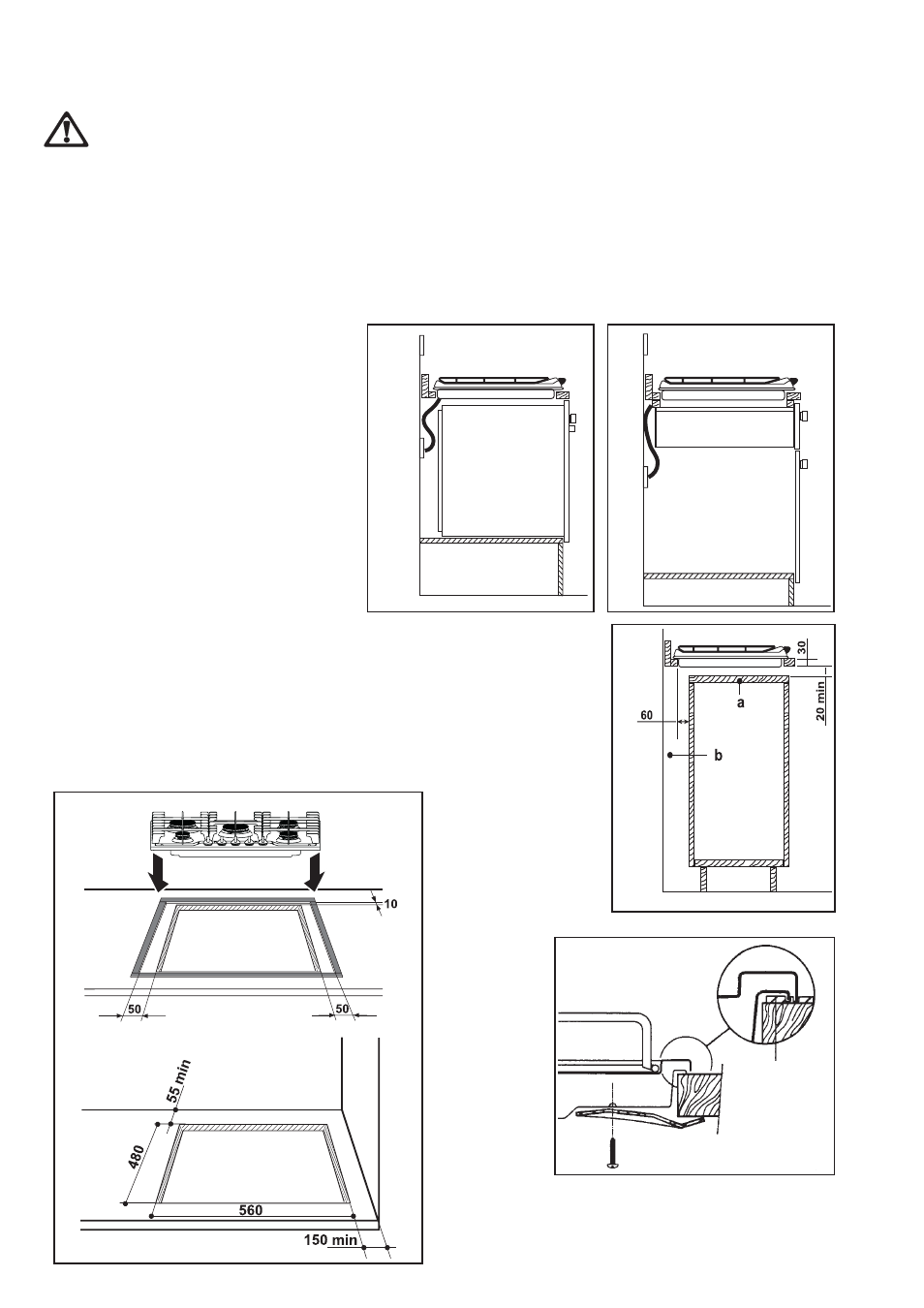

It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1
and 2.
ON/OFF SWITCH
FLEX
OUTLET
ON/OFF SWITCH
FLEX
OUTLET
FO 2563
FO
2564
FO 2044
1 11 11
2 22 22
3 33 33
Fitting the Hob into the w Fitting the Hob into the w Fitting the Hob into the w Fitting the Hob into the w Fitting the Hob into the worktop orktop orktop orktop orktop
Carry out the building in of the hob as follows:
• put the seals supplied with the hob, on the edges of the cut out like shown in
the fig. 4, taking care that the seals meet without overlapping;
• place the hob in the cut out, taking care that it is centred;
• fix the hob with the relevant fixing clamps and screws, as shown in the diagram
5. When the screws have been tightened, the excess seal can be removed.
The edge of the hob forms a double seal which prevents the penetration of liquids.
IMPORTANT IMPORTANT IMPORTANT IMPORTANT IMPORTANT::::: This hob must be installed according
to the instruction supplied, and by qualified and qualified and qualified and qualified and qualified and
competent personnel competent personnel competent personnel competent personnel competent personnel to the relevant National
Standards.
B B B B Building o uilding o uilding o uilding o uilding ovvvvver a kitchen unit with er a kitchen unit with er a kitchen unit with er a kitchen unit with er a kitchen unit with
door door door door door
Proper arrangements must be taken in designing the furniture
unit, in order to avoid any contact with the bottom of the
hob which can be heated when it is operated. The
recommended solution is shown in diagram 3.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical assistance is
needed. The space behind the kitchen unit ("b") can be used
for connections.
Please ensure that when the hob is installed it is easily
accessible for the engineer in the event of a breakdown.
4 44 44
5 55 55
