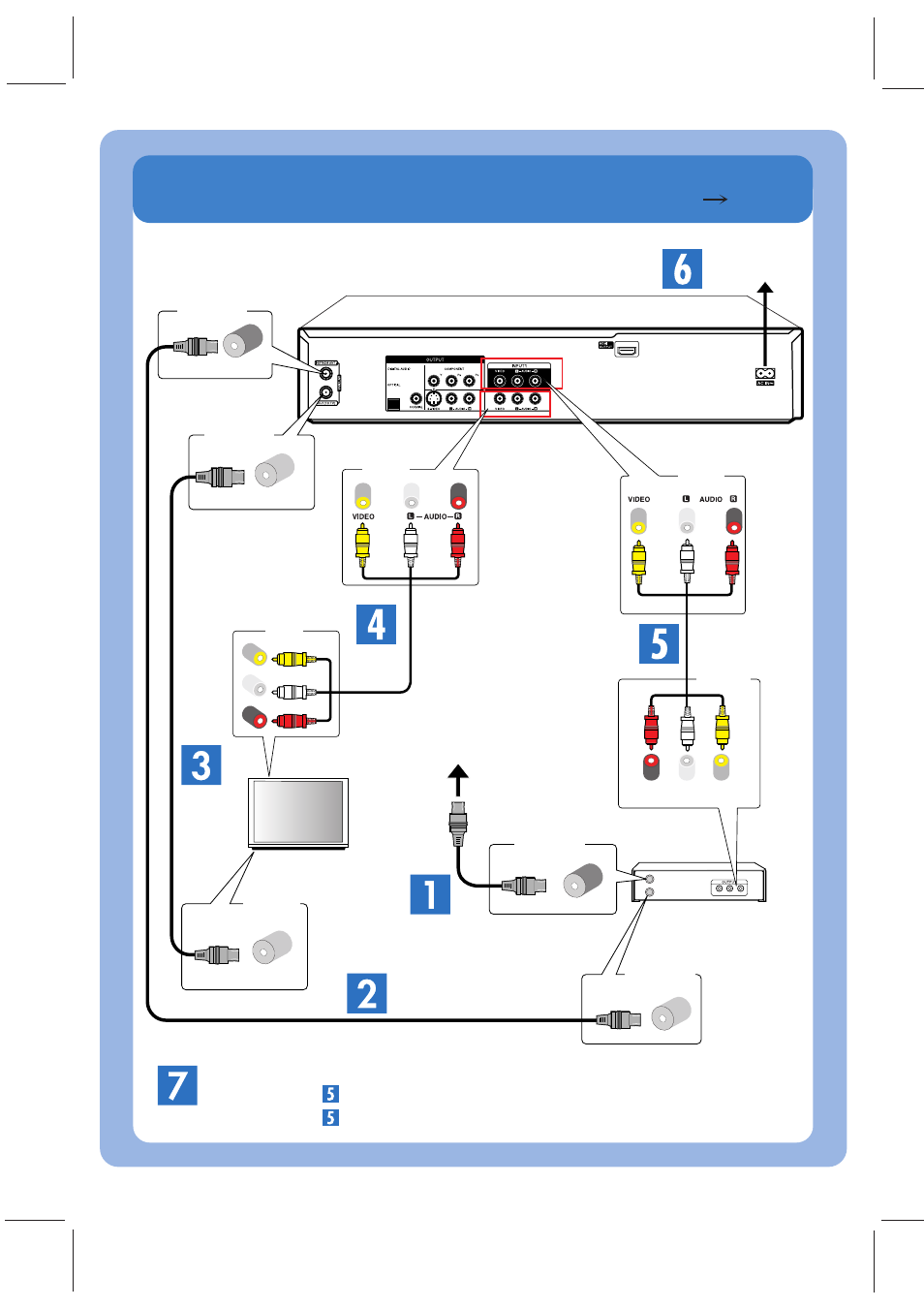

Connection: With Cable Box Or DBS Receiver INSTRUCTIONS
pg. 9
AC Outlet
DR-MV100B
TV
DVD/VCR
OUT
INPUT
Video
Audio (L)
Audio (R)
ANTENNA OUT
(RF. OUT)
ANTENNA IN
(RF. IN) Cable or Satellite Box
Video (R) - Audio - (L)
Antenna
or cable
INPUT 1
Video (R) - Audio - (L)
OUTPUT
(AV OUT)
ANTENNA IN
(RF. IN)
ANTENNA OUT
(RF. OUT)
ANTENNA IN
(RF. IN)
Connect the arial.
After connections, Power On.
When STEP is connectted: Select Input "AV1" of your recorder.
When STEP is disconnectted: Select "Ch 3 or 4" of your recorder.
