– 7 –
English
2
1
1

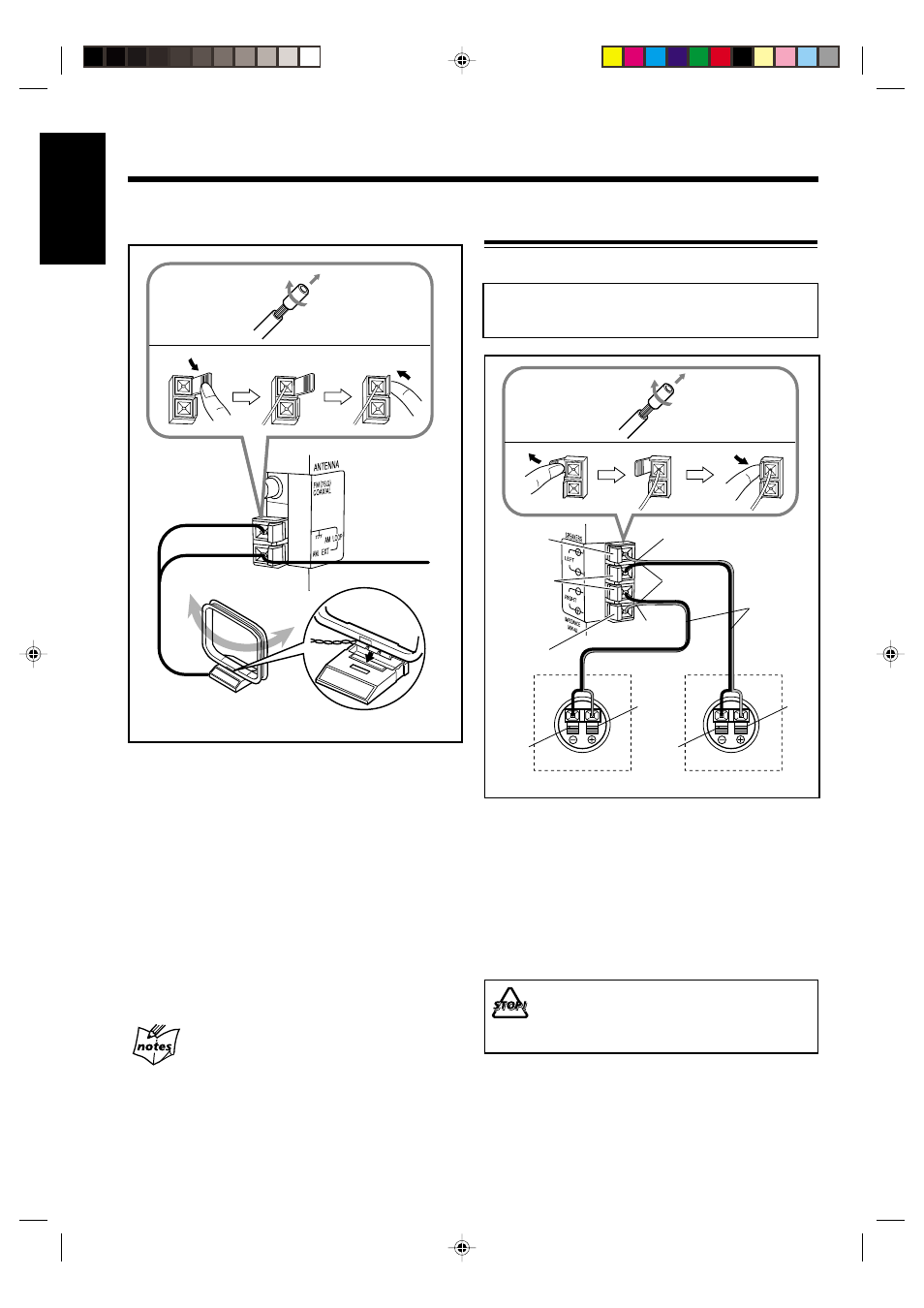

If cords are covered with insulation, twist the core of
the cord at the end of each cord, then remove the
insulation.
2
Connect the AM loop antenna to the AM LOOP
terminals as illustrated.
3
Turn the AM loop antenna until you have the best
reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered
wire to the AM EXT terminal and extend it horizontally.
(The AM loop antenna must remain connected.)
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
AM loop antenna
(supplied)
Connecting Speakers
You can connect the speakers using the speaker cords.
Use only speakers with the same speaker impedance—more
than 4
Ω—as indicated by the speaker terminals on the rear of
the unit.
1
If cords are covered with insulation, twist the core
of the cord at the end of each cord, then remove the
insulation.
2
Insert the end of the speaker cord into the terminal
as illustrated.
Match the polarity of the speaker terminals: (+) to (+)
and (–) to (–).
• DO NOT connect or disconnect the speakers while
the unit is turned on.
• DO NOT connect more than one speaker to one
speaker terminal.
3
2
1
Vinyl-covered wire
(not supplied)
Right speaker Left speaker
Black
Red
Black
Red
Black
Speaker
cord
Orange
Orange
Black
Red
Red
