- 18 -
CV-M536/538/539

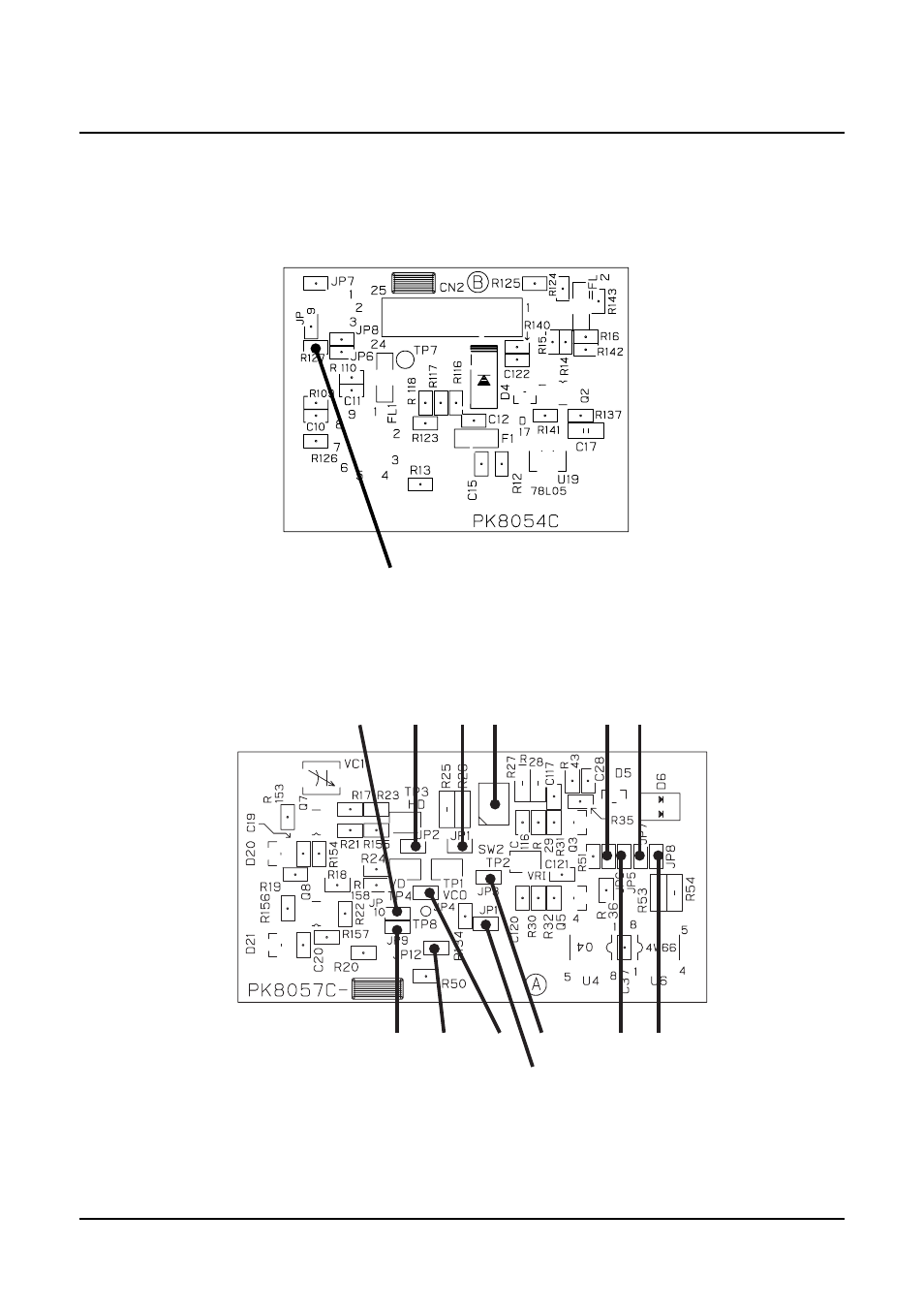

7.4. Location of SW2 and Jumpers
Jumpers are shorted with a 0 Ohm resistor or by a soldering between the 2 points. To remove the solder
tin from a jumper position, use a special tin remover such as de-soldering wick.
7.4.1. Board PK8054 Side B
7.4.2. Board PK8057 Side A
R127
JP10 JP2 JP1 SW2 JP6 JP7
JP9 1 JP 2 JP4 JP3 JP5 JP8
JP11
