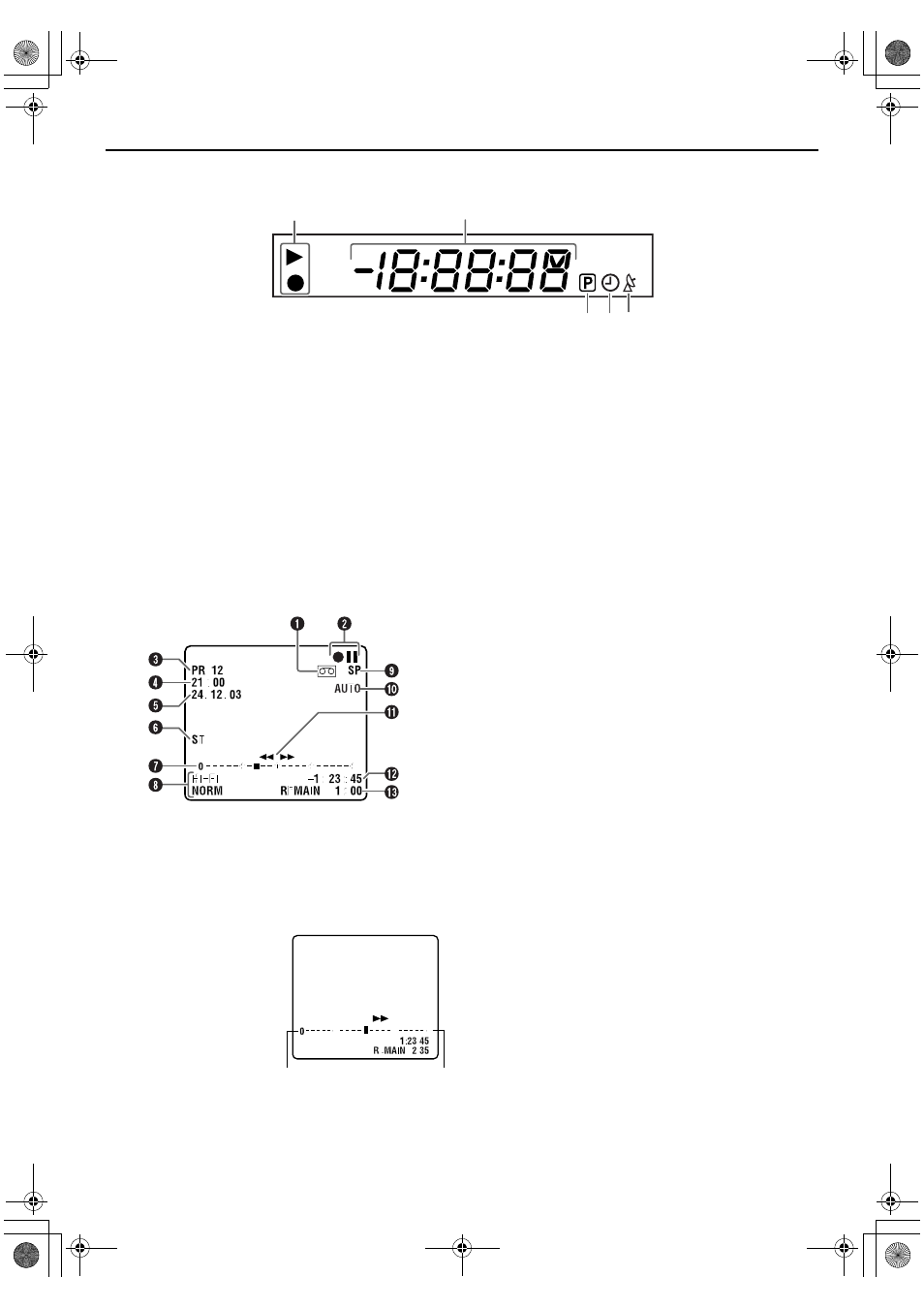

FRONT DISPLAY PANEL
A Operation Mode Indicator
B Channel/Clock Display
Mode Display (L-1 or F-1)
Counter Display
Tape Speed (SP/LP or EP*)
੬
pg. 23
* EP is for NTSC only.
Multi-information window*
* The current group/title/track/chapter number(s), time and status
information.
C Progressive Mode Indicator
੬
pg. 11
D “Timer ” Indicator
੬
pg. 28, 29, 32
E Satellite Auto Recording Indicator (N)
੬
pg. 32
ON-SCREEN DISPLAY (VHS deck)
If you press – –:– – on the remote control when “O.S.D.”
is set to “ON” (
੬
pg. 54), various operational indicators
appear on the TV screen.
For On-screen display for DVD deck, refer to “Using the
on-screen bar” (
੬
pg. 40).
A “Cassette Loaded” Mark
B Operation Mode Indicators
C Channel Position Number and Station Name/Auxiliary
Input Indicator (L-1 or F-1)
D Clock Display
E Current Day/Month/Year
F Type of Broadcast
੬
pg. 25
G Tape Position Indicator
The tape position indicator
appears on the TV screen
when you press 3 or
5 from the Stop mode or
perform an Index Search.
(
੬
pg. 21) The position of
“q” in relation to “0”
(beginning) or “+” (end)
shows you where you are
on the tape.
NOTE:
Depending on the type of tape being used, the tape position
indicator may not appear correctly.
H Audio Mode Display
੬
pg. 22
I Tape Speed (SP/LP or EP*)
* EP is for NTSC only.
J Colour System Indicator
੬
pg. 54
K Tape Direction
L Counter Display
M Tape Remaining Time Indicator
੬
pg. 24
A B
C E D
Beginning End
