CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm) 16-13/32 inch (417.1 mm)
B 15-13/32 inch (391.7 mm) 16-13/32 inch (417.1 mm)
C 11-13/32 inch (290.1 mm) 13-29/32 inch (353.6 mm)
D 9-4/32 inch (232 mm) 10-14/32 inch (275.9 mm)
E 9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
F
G 4/32 inch (3 mm) 4/32 inch (3 mm)
1.57 ft 3 (0.045 m 3 ) 2.17 ft 3 (0.062 m 3 )
CS-AW7020 / CS-AW7040 CS-AW7220 / CS-AW7240
A 15-13/32 inch (391.7 mm) 15-13/32 inch (391.7 mm)
B 18-13/32 inch (467.9 mm) 18-13/32 inch (467.9 mm)
C 13-13/32 inch (340.9 mm) 15-13/32 inch (391.7 mm)
D 9-23/32 inch (247 mm) 10-14/32 inch (275.9 mm)
E 9-23/32 inch (247 mm) 11-10/32 inch (295 mm)
F 4/32 inch (3 mm) 4/32 inch (3 mm)
G 1 inch (25.4 mm) 1 inch (25.4 mm)
H 13 inch (330.2 mm) 14 inch (355.6 mm)
I
J
13-19/32 inch (345.4 mm) 13-6/32 inch (335.3 mm)
1.85 ft 3 (0.052 m 3 ) 2.54 ft 3 (0.072 m 3 )

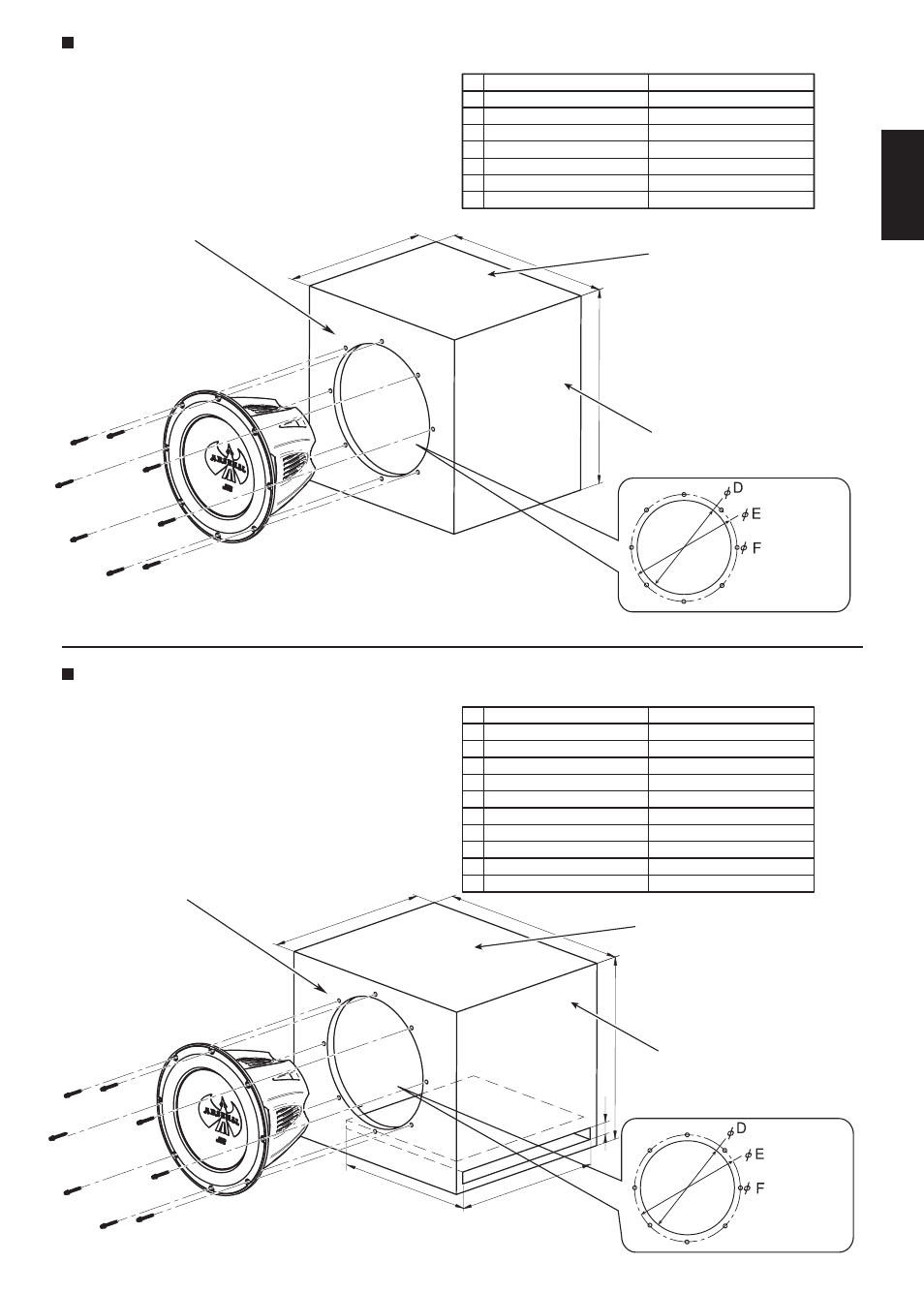

To install the ported enclosure
When the speaker cannot be attached in the car, make the sealed enclosure as recommended in the table below—20 mm (3/4 inch) MDF is also
recommended for the enclosure materials.
To install the sealed enclosure
When the speaker cannot be attached in the car, make the sealed enclosure as recommended in the table below—20 mm (3/4 inch) MDF is also
recommended for the enclosure materials.
Front & Rear Baffle Boards (x 2)
Left & Right Sides (x 2)
Top & Bottom Sides (x 2)
* Screw: Dia. 4mm x 50mm (x 8) (supplied)
Mounting Hole
Dimension
Front & Rear Baffle Boards (x 2)
Left & Right Sides (x 2)
Top & Bottom Sides (x 2)
* Screw: Dia. 4mm x 50mm (x 8) (supplied)
Mounting Hole
Dimension
- 5-
ENGLISH
J : Internal Volume
G : Internal Volume
