INDEX (cont.)

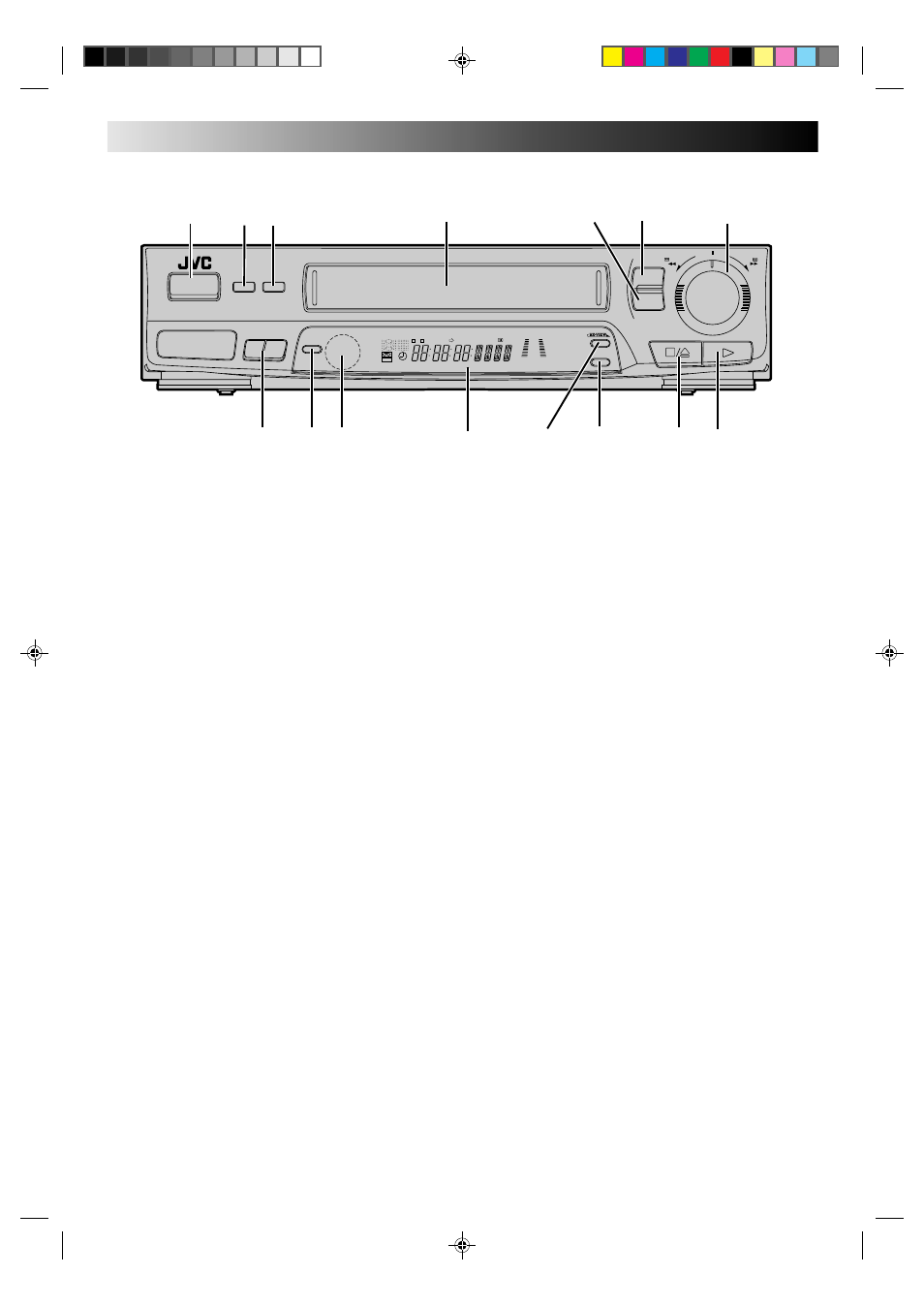

FRONT VIEW
1 OPERATE Button turns recorder on/off (loading
a cassette also turns power on). ੬ pg. 5
2 TIMER Button engages timer standby mode.
੬ pg. 27
3 COUNTER RESET Button resets counter to
0:00:00. ੬ pg. 17
4 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator
lights up on front display panel.
5 RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice);
sets duration of ITR.
੬ pg. 19
6 PAUSE Button stops tape temporarily during
recording.; stops tape temporarily during
playback; plays back frame by frame with each
additional press.
੬ pg. 12
7 SHUTTLE Ring rewinds or fast-forwards tape
during Stop mode; performs forward and reverse
slow-motion and search during Still or Play
mode.
੬ pg. 12
8 TV PROG. +/– Buttons select preset.
੬
pg. 8
9 SP/LP Button selects tape speed.
੬
pg. 19
0 Infrared Beam Receiving Window is where
remote control should be aimed when in use.
! Display Panel provides clear view of various
displays and indicators.
੬
pg. 45
@ REVIEW Button "reviews" timer-recorded
programme.
੬
pg. 14
# AUTO SP/LP TIMER Button engages Auto SP/LP
Timer for automatic switching from SP to LP
mode during recording.
੬
pg. 30
$ STOP/EJECT Button stops tape; ejects tape
during Stop mode.
੬
pg. 11
% PLAY Button plays back tape; cancels Pause,
Still, Slow, Search modes.
੬
pg. 11
