Simpson Dura-Vent Chimney
Conversion Kit
The GF3 DVII Allagash is approved for use with
Simpson Dura-vent Chimney Kit as shown in Figure
9. These installation requirements must be followed:
1. In masonry chimney a fireclay liner must be
present the entire length of the chimney.
2. The liner must have an inside dimension of 6”
round or greater. (USE KIT #934)
3. Prefabricated chimneys must be listed for the
specific Simpson Dura-Vent Chimney Conversion
Kit or a UL 103 listing. (USE KIT #931, #932, or
#933)
4. When venting immediately off the rear of the
Allagash the maximum horizontal must be less
than 14” (including thimble depth). Any other
horizontal must be less than 24“.
5. Restrictor plates, shipped with the stove, should
be installed according to the assembly instruc-
tions in this manual.
IMPORTANT NOTICE
THE USE OF AN EXISTING CHIMNEY
AS AN AIR INTAKE IS NOT COVERED
UNDER THE ANSI Z21.88-1999-CSA
2.33-M99 TEST METHODS AND RE-
SULTING ITS/WHI PRODUCT CERTIFI-
CATION. THE CODE AUTHORITY
HAVING JURISDICTION MUST BE
CONSULTED PRIOR TO PROCEEDING
WITH THIS INSTALLATION METHOD.
GF 3 DV
ALLAGASH
Stove
Vertical Termination
Cap #991
(Not included in kit).
Simpson Dura-Vent
Thimble Adapter
(Included in kit)
Appropriate length of
Simpson
Dura-Vent Pipe for
vertical rise.
(Not included in kit).
Simpson Dura-Vent
#990 90º Elbow .
(Not included in kit) .
Simpson Dura-Vent
Termination Kit
A: M aximum
horizontal run when
venting immediately
off the rear of the
stove MUST BE LESS
THAN 14” (360 mm)
TOTAL!
A
Fire-clay
liner or UL
103 listed
prefabri-
cated chim-
ney pipe.
4 inch
(100 mm)
Flex Liner
(Not in-
cluded in
kit)

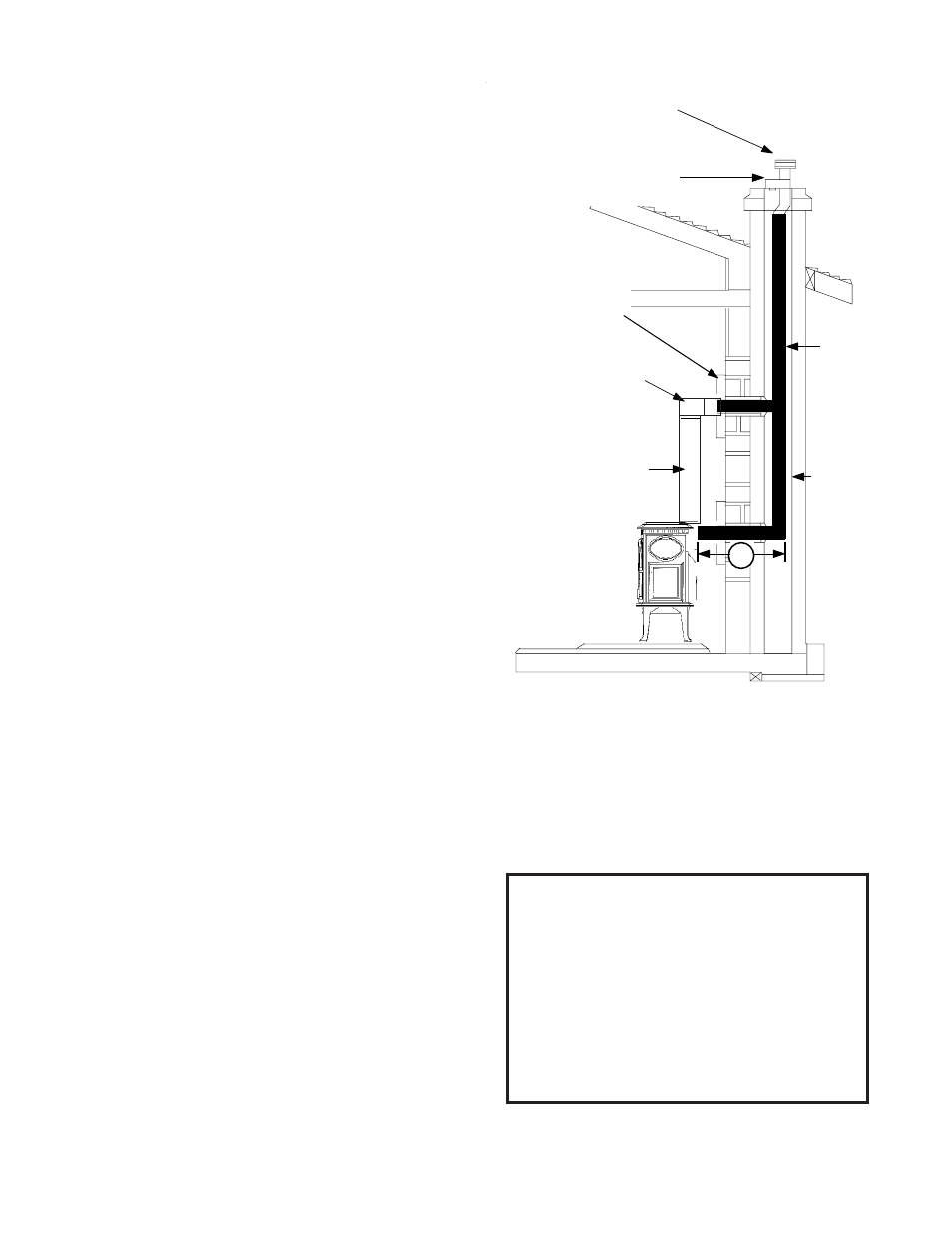

Figure 9. GF 3 DVII Allagash vent connection using
Simpson Dura-Vent Chimney Conversion Kit.
Mobile Home Installation
The Allagash can be installed for use in a mobile
home in the U.S. and Canada provided:
1. The stove is secured to the floor of the mobile
home. Use Floor Mounting Kit #750304.
2. The stove is installed in accordance with Title 24
CFR, Part 3280- Manufactured Home Construc-
tion and Safety Standard, in the U.S. and in
Canada, comply with CSA Z240.4, Gas Equipped
Recreational Vehicles and Mobile Housing.
3. Always contact your local officials about installa-
tion restrictions and requirements in your area.
This appliance may be installed as an OEM
Iinstallation in manufactured (mobile)homes and
must be installed according to the manufacturer’s
instructions and the manufactured home construc-
tion and safety standard, Title 24 CFRAND SAFETY
STANDARD, TITLE 24 CFR, Part 3280. This appliance is
only for use withthe type of gas that is indicated on
the stove Rating Plate. A gas conversion kit is
provided with the GF3 DVII Allagash gas stove.
This appliance may be installed in an aftermar-
ket permanently located, manufactured, (mobile)
home, where not prohibited by local codes.
Cet appareil peut etre installe dans un maison
prefabriquee (mobile) deja installee a demeure si les
reglements locaux le permettent. Cet appareil doit etre
utilise uniquement avec les types de gas indiques sur la
plaque signaletique. Ne pas l’utiliser avec d’autres gas sauf
si un kitde conversion certifie est installe.
