AVR480 QUICK-START GUIDE

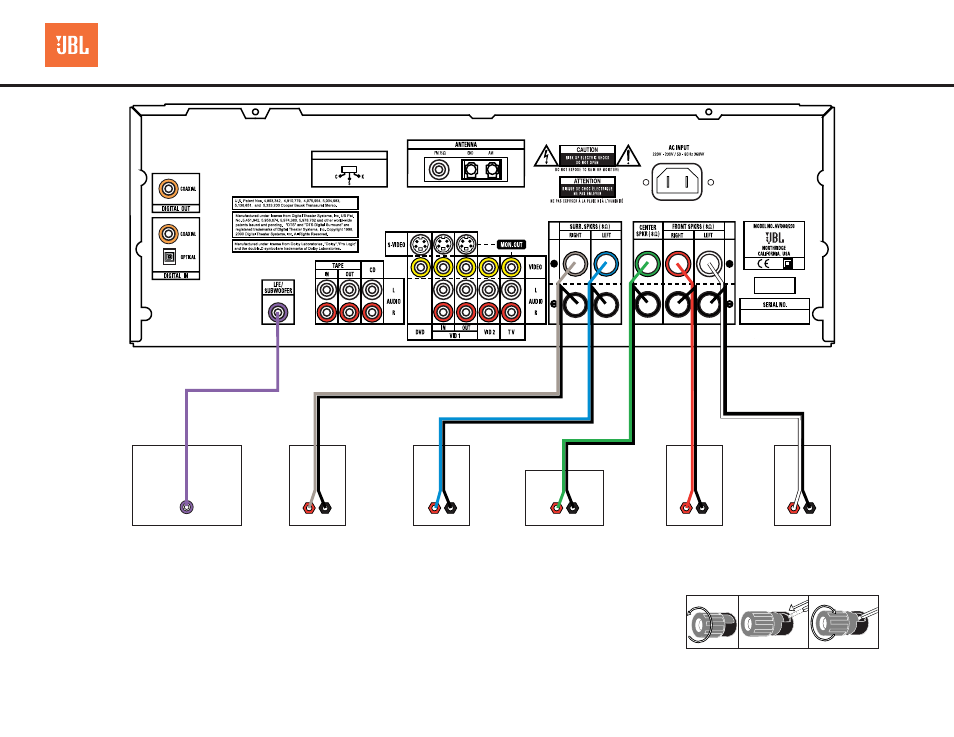

FIGURE 2 -- SPEAKER
CONNECTIONS Step 2. Connect the speakers to the receiver: red (+) on speaker to colored (+)
on receiver and black (–) to black (–). (See page 15.)
Step 3. Connect the Subwoofer Pre-Out jack to the Line-In jack on your sub-
woofer (see page 16). You may adjust the settings on the subwoofer
later as needed.
FIGURE 3 -- HOW TO USE
THE BINDING-POST
SPEAKER TERMINAL
SURROUND
RIGHT SPEAKER
SURROUND
LEFT SPEAKER
FRONT LEFT
SPEAKER CENTER SPEAKER SUBWOOFER
LINE IN/SUB/LFE +
_
+
_
+
_
+
_
FRONT RIGHT
SPEAKER
+
_
