Specifications:
Enclosure Type: Acoustical Suspension (Sealed)
Driver Type: 10W3v2-D2
Nominal Impedance: 4
Ω
Cont. Power Handling: 300Watts
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power your Stealthbox®.
Included Hardware:
(2) 3/8” Split Lock Washer
(2) 3/8” x 1-1/4” Fender Washer
(2) 3/8”-16, 2-1/4” Socket Cup Set Screws
(2) 3/8” - 16 Hex Nuts
(2) 3”x 3” Wax Squares
10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111
JL AUDIO 250/1
monoblock subwoofer amplifier
Amplifier Input Section
Input Sens. Input Voltage
Low/High
Left Ch. Right Ch.
Signal Sensing
Off/On
Output Mode
Full-Range/Low-Pass/High-Pass
Left Ch. Right Ch.
Amp LP Filter
Mode/Slope
Off/12dB/24dB
Filter Freq. (Hz)
Bass Control
LF Boost (dB)
Off/30Hz
Infrasonic Filter
+1 +13
+3
+7
+10
Preamp Output Section +12VDC Ground Remote
The JL Audio 250/1 is a very versatile audio component. Please consult the owner’s manual for detailed information
about installing and tuning this amplifier.
➔ ➔

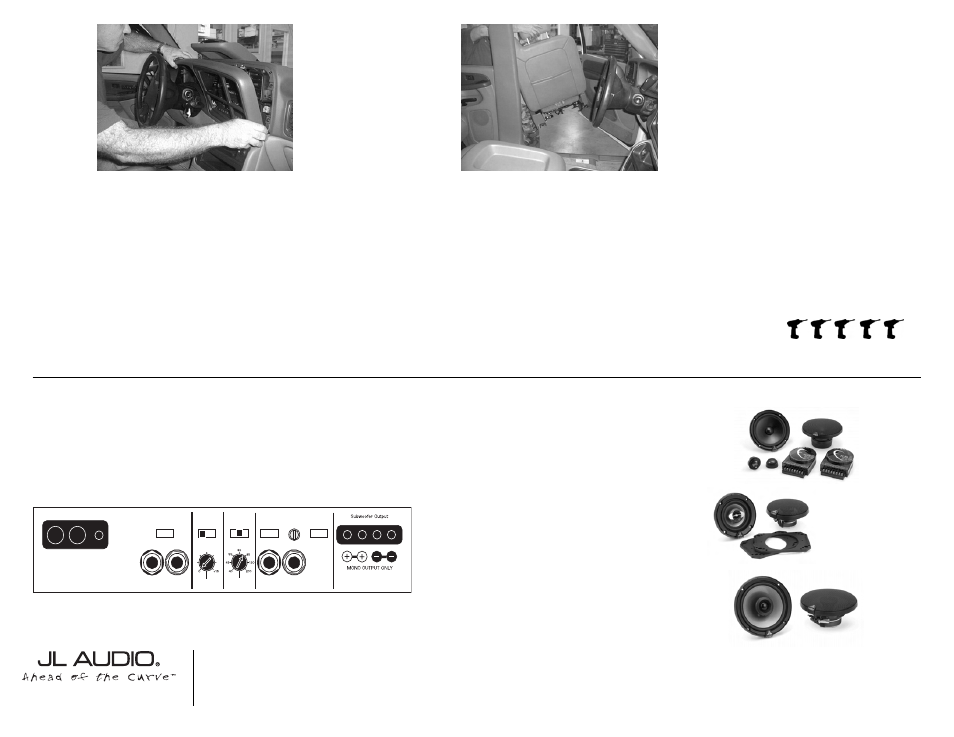

STEP 50: Snap the dash trim panel back into place
from STEP 3. STEP 51: Place the front seats back into place
from STEP 1.
Remember to reconnect the wiring connection
under the seats.
➔
S B - G M - B U R B C N S L / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 5 S h e e t S K U # 0 1 1 1 6 7 3 / 0 8 / 2 0 0 5 Pa g e 8 w w w . j l a u d i o . c o m
Mid/High Frequency Driver Information:
CONGRATULATIONS!
INSTALL COMPLETE.
XR650-CSi
TR400-CXi
VR650-CXi
Front Location Driver Size:
6.5” separates
Applicable JL Audio Products:
TR,VR,XR & ZR 650-CSi
Rear Location Driver Size (TRUCKS):
4”x6”
Applicable JL Audio Products:
TR400-CXi
Rear Location Driver Size (SUV’s):
6.5”
Applicable JL Audio Products:
TR,VR & XR 650-CXi
Cont.
From
Previous
Page
Difficulty Of Installation:
