Alternate Use of Water Rainbow ® as Fill Spout
You can use your Water Rainbow as a fill spout by permanently plumbing it to a fresh water supply if local codes
permit. Local plumbing codes may require the use of an anti-siphon valve for such a connection. Do not interconnect
water supply with recirculating system of the spa.
To make the connections necessary to use the Water Rainbow as a fill spout, follow this procedure:
• Make sure spa is unplugged and completely drained.
• Unscrew the spout from the 3/4" pipe.
• Cut the 3/4" piping as shown in the illustration below.
• Cap the piping by cementing a 3/4" PVC cap where cut has been made.
• Connect permanent plumbing line to the spout.

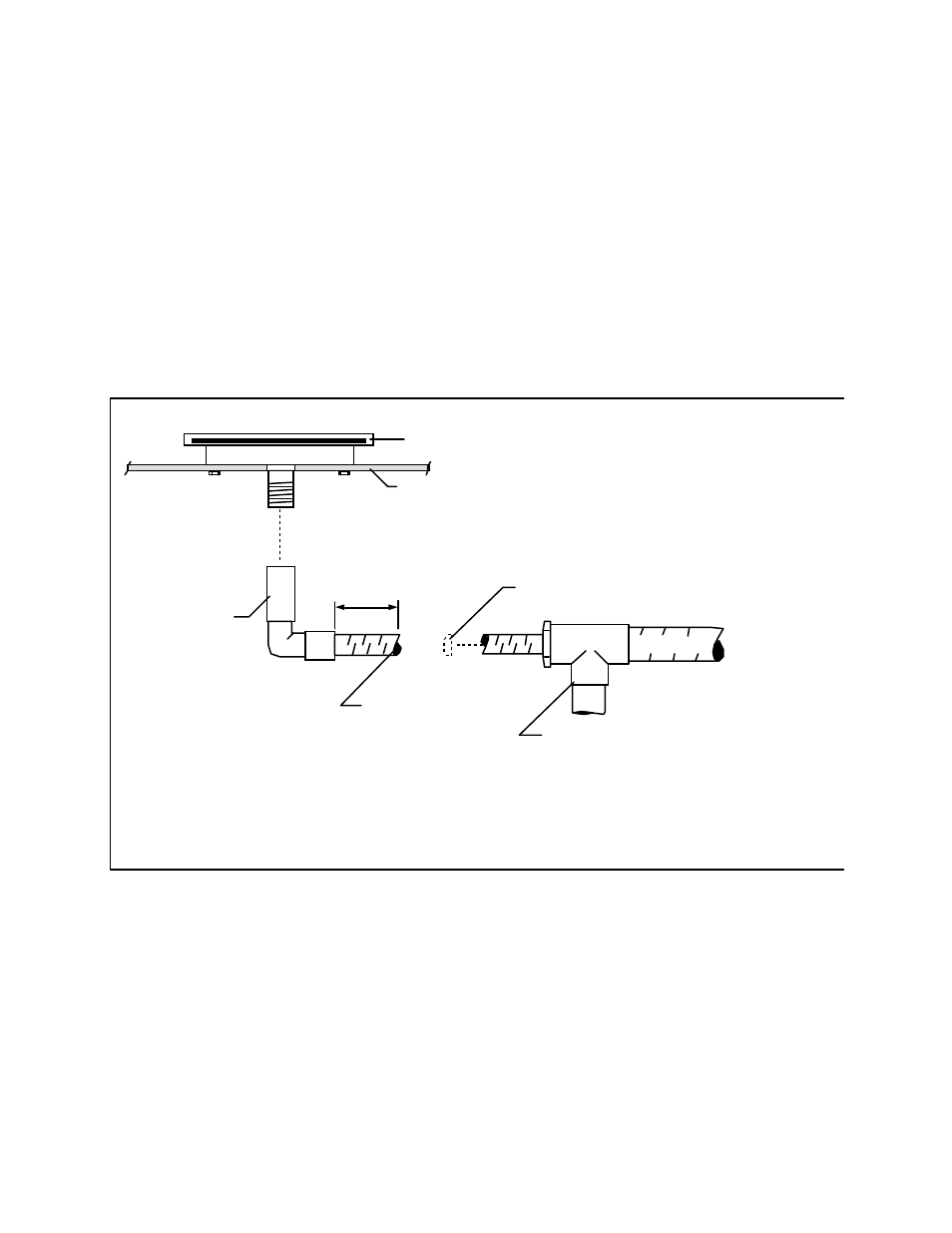

WATER RAINBOW SPOUT
SPA SHELL
SAVE FOR LATER
(IF DESIRED)
1-1/2" to 2 "
INSTALL AND CEMENT
3/4" PVC CAP HERE
CUT PIPE HERE
TEE LOCATED ON
DISCHARGE
PIPING
SUGGESTED MODIFICATION
(REFER TO LOCAL CODES
FOR REQUIREMENTS)
