8

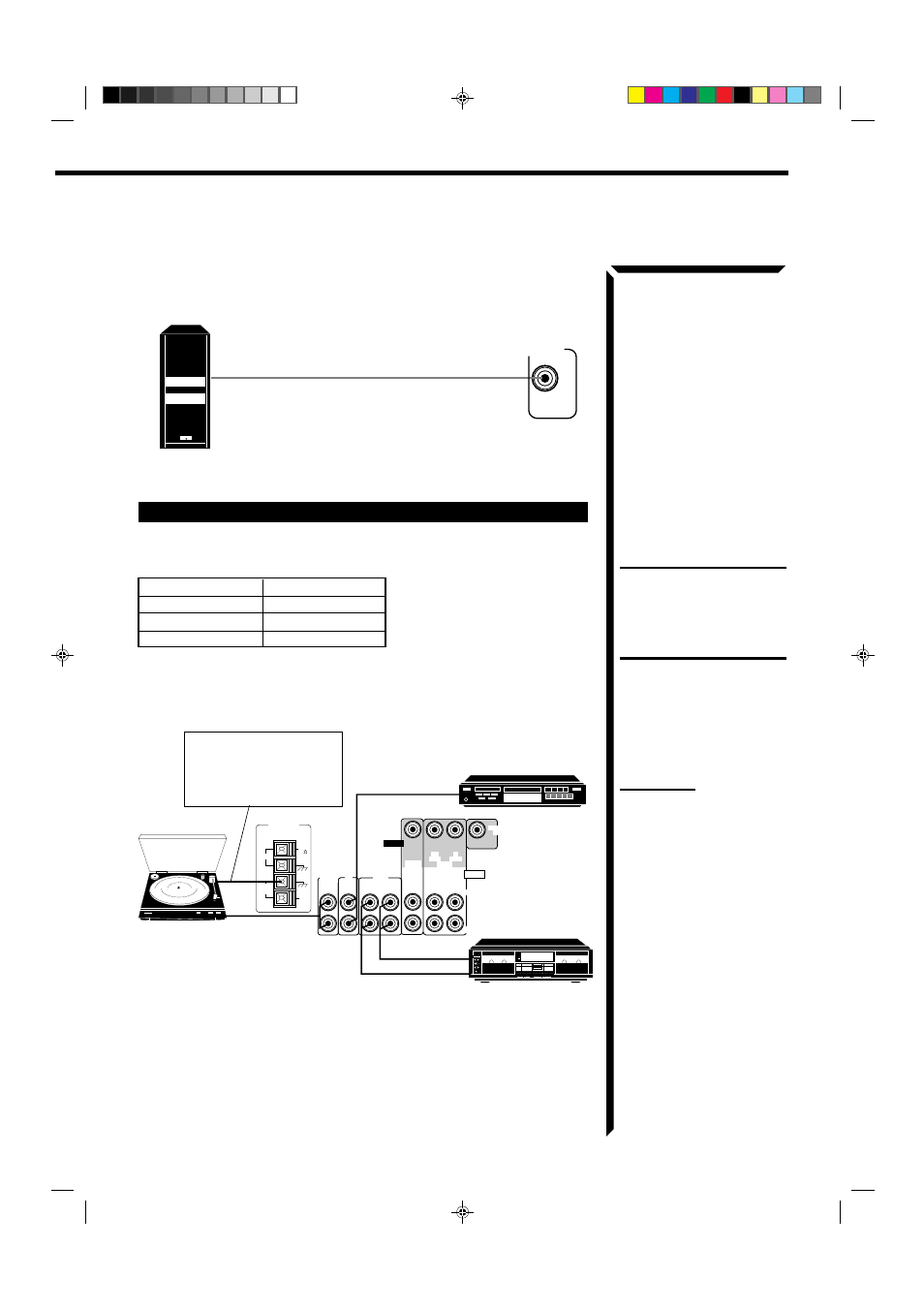

Connecting the subwoofer
Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the
rear panel, using a cable with RCA pin plugs.
SUBWOOFER
OUT
Connecting Audio/Video Components
You can connect the following components to the receiver using cables with RCA pin
plugs.
Audio Components Video Components
• Turntable • VCR
• CD player • Video disc player
• Cassette deck • TV
Audio component connections
AM
EXT
AM
LOOP
GND
FM
75
FM
GND
ANTENNA
VCR
OUT
(REC)
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
AUDIO
VIDEO
MONITOR
OUT
TAPE PHONO CD
OUT
(REC)
IN
(PLAY)
VIDEO
LEFT
RIGHT
Turntable
Cassette deck
To audio output
To audio input
To audio output
To audio output
CD player
If a ground cable is provided
for your turntable, connect the
cable to the GND terminal of
the AM LOOP terminals on the
rear panel.
CAUTION:
If you connect a sound-enhancing
device such as a graphic equalizer
between the source components
and this receiver, the sound output
through this receiver may be
distorted.
Note:
Any turntables incorporating a
small-output cartridge such as an
MC (moving-coil type) must be
connected to the receiver through
a commercial head amplifier or
step-up transformer. Direct
connection may result in
unsufficient volume.
Powered subwoofer
