JVC HR-J439EE - Manual (Page 29)

EN
29

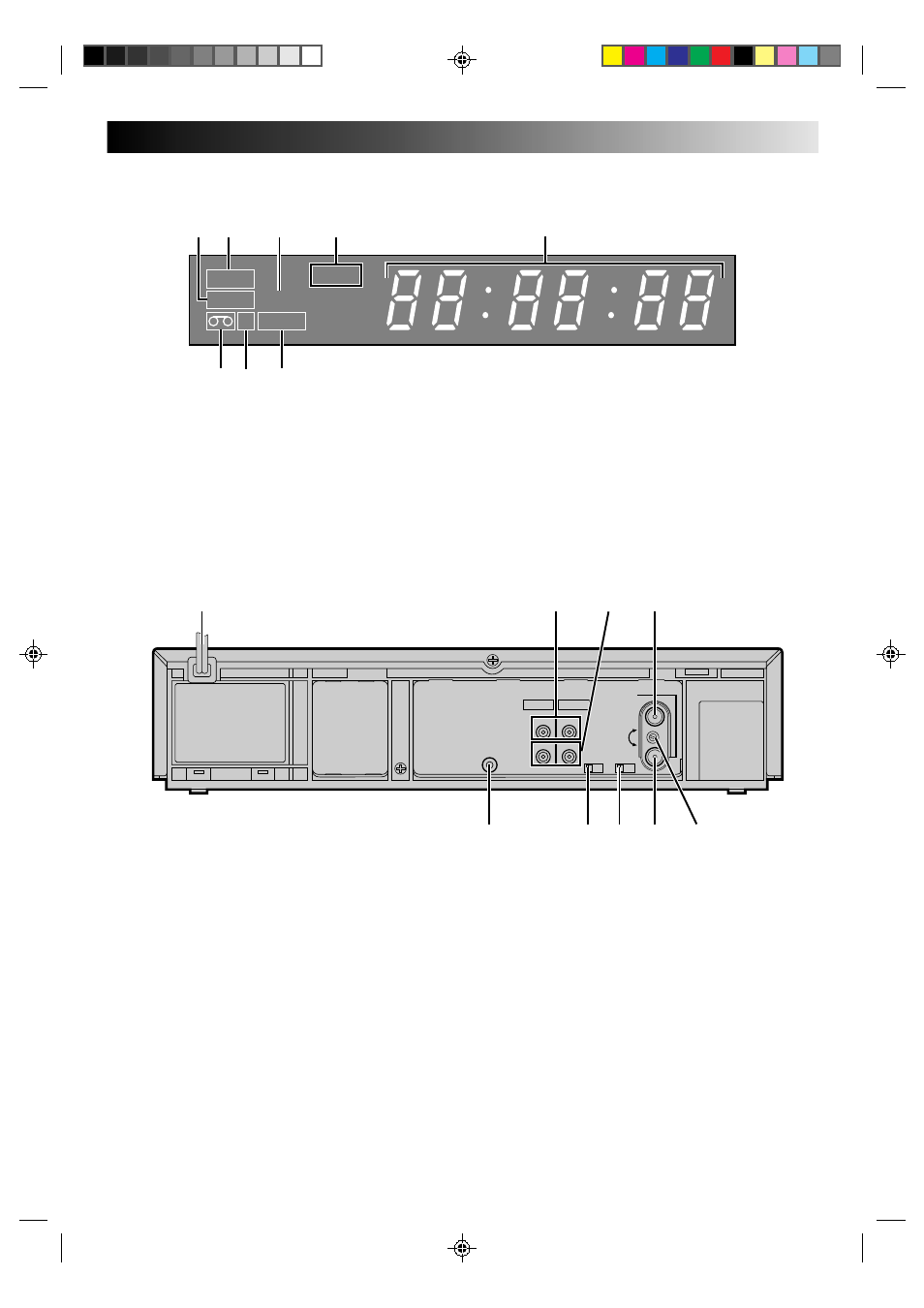

DISPLAY PANEL
R E C
TIMER
PLAY NTSC
M
SP LP
1
8 6
2 3 4
7
5
5 Clock/Counter/Channel Display (
੬
pg. 6)
6 ”Cassette Loaded” Mark
7 Counter Memory Indicator (
੬
pg. 13)
8 ”Timer” Indicator (
੬
pg. 19)
1 PLAY Indicator (
੬
pg. 10)
2 REC Indicator (
੬
pg. 14)
3 NTSC Indicator (
੬
pg. 22)
4 Tape Speed Indicators (
੬
pg. 14)
REAR VIEW
ANT. IN
RF OUT
32
40
PAUSE TEST
OFF – ON
OUT
AUDIO VIDEO
IN
OUT
IN
SYSTEM
K – G
1 3 4
6 7 8
2
9 5
1 Mains Power Cord (
੬
pg. 3)
2 AUDIO and VIDEO IN Connectors (
੬
pg. 20)
3 AUDIO and VIDEO OUT Connectors
(
੬
pg. 3)
4 ANT. IN Connector (
੬
pg. 3)
5 Remote PAUSE Connector (
੬
pg. 21)
6 TEST Switch (
੬
pg. 4)
7 SYSTEM Switch (
੬
pg. 4)
8 RF OUT Connector (
੬
pg. 3)
9 RF Output Channel Adjustment Screw (
੬
pg. 4)
