2
KS-AR9004 KS-AR9001D

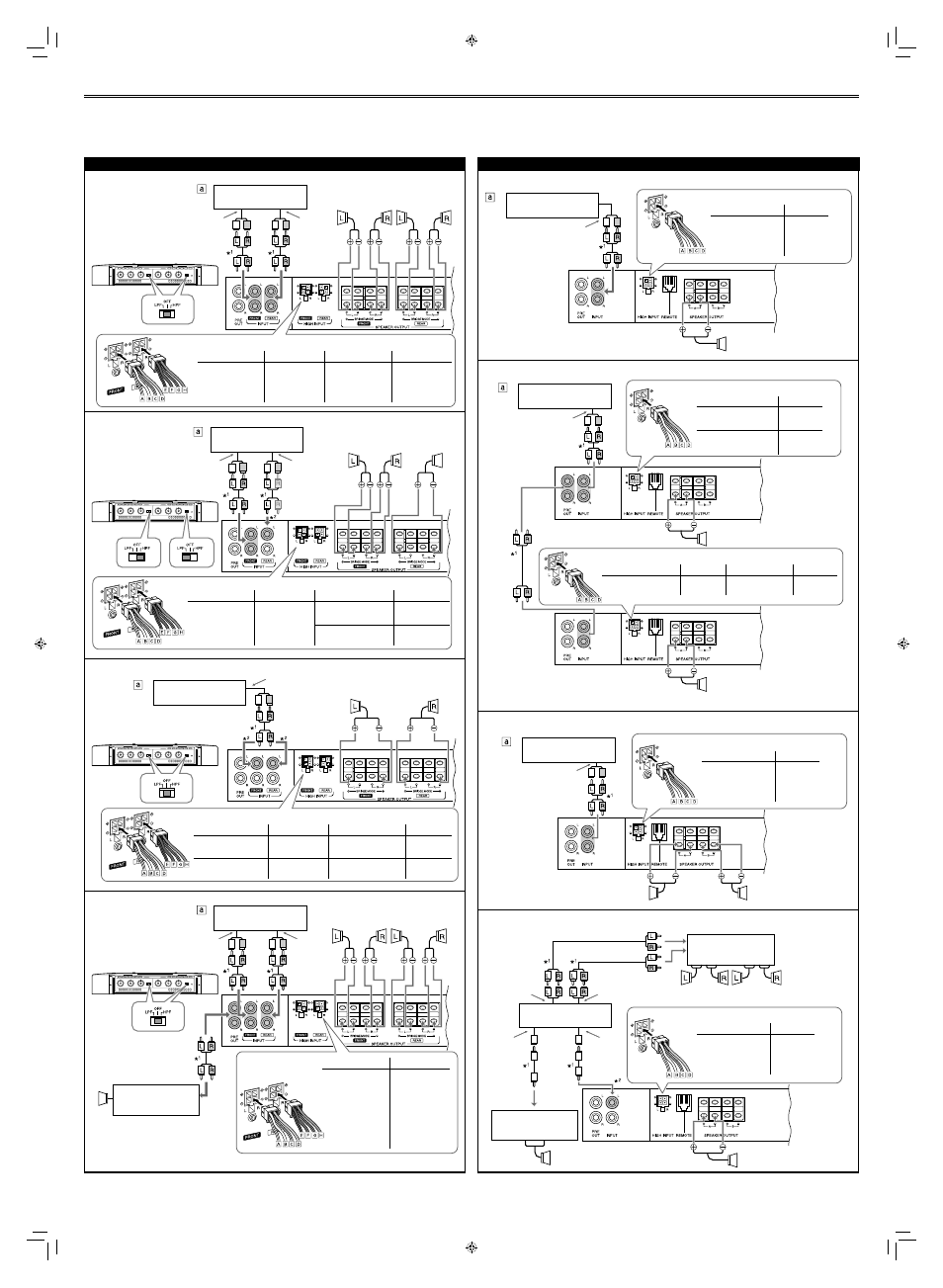

SPEAKER CONNECTIONS
2-speaker system—Bridge Mode
4-speaker system—Normal Mode
2-speaker system plus subwoofer—Bridge Mode
4-speaker system plus subwoofer (PRE OUT)
Subwoofer
Front panel
Front panel
Front panel
Front panel
Connection varies depending on the number of the speakers used in your car. Select the
appropriate connection referring to the following diagrams.
Before connecting: Securely connect all the parts. If the connections are loose, due to contact
resistance etc., heat will break out and may cause an accident. Secure and cover the cords with
insulating tape and run them under the car mats.
* 1 Not provided for this unit.
* 2 Be sure to connect the line output from the receiver to the left (L) jack on this unit.
å When your receiver is equipped with Line Output, connect the Line Output (through the
receiver) to the INPUT jacks on this unit.
∫ When your receiver is NOT equipped with Line Output, connect the provided speaker input
connector (through the receiver) to the HIGH INPUT terminal on this unit.
Front Speaker
(left/right) Rear Speaker
(left/right)
Line Out
(Rear) Line Out
(Front)
JVC car receiver, etc.
JVC car receiver, etc.
∫ Speaker input connector
Connector lead Speaker lead Connector lead Speaker lead
Å White (stripe) Front left (–) ‰ Green (stripe) Rear left (–)
ı White Front left (+) Ï Green Rear left (+)
Ç Gray (stripe) Front right (–) Ì Purple (stripe) Rear right (–)
Î Gray Front right (+) Ó Purple Rear right (+)
Line Out (Rear)
or
Subwoofer Out
Line Out
(Front)
JVC car receiver, etc.
∫ Speaker input connector
Connector lead Speaker lead Connector lead Speaker lead
Å White (stripe) Front left (–) ‰ Green (stripe)
Rear left (–)
ı White Front left (+) Ì Purple (stripe)
Ç Gray (stripe) Front right (–) Ï Green
Rear left (+)
Î Gray Front right (+) Ó Purple
Rear (Front) Speaker
(left/right) JVC car receiver, etc.
Line Out
JVC car receiver, etc.
Rear (Front) Speaker
(left/right)
Front Speaker
(left/right) Rear Speaker
(left/right)
Line Out
(Rear) Line Out
(Front)
∫ Speaker input
connector
Connector lead Speaker lead
Å White (stripe) Front left (–)
ı White
Front left (+)
Ç Gray (stripe) Front right (–)
Î Gray Front right (+)
‰ Green (stripe) Rear left (–)
Ï Green
Rear left (+)
Ì Purple (stripe) Rear right (–)
Ó Purple
Rear right (+)
∫ Speaker input connector
Connector lead Speaker lead
Å White (stripe) Left (–)
ı White Left (+)
Ç Gray (stripe) Right (–)
Î Gray Right (+)
∫ Speaker input connector
Connector lead Speaker lead Connector lead Speaker lead
Å White (stripe)
Left (–)
‰ Green (stripe)
Right (–) Ç Gray (stripe) Ì Purple (stripe)
ı White
Left (+)
Ï Green
Right (+)
Î Gray Ó Purple
}
* 3
}
* 3
}
* 3
}
* 3
}
* 3
}
* 3
Subwoofer System
Subwoofer system
2-subwoofer system (2 amplifiers)
2-subwoofer system
4-speaker system plus subwoofer—5.1-channel (3 amplifiers)
Note
Use the subwoofers with an
impedance of 2
Ω to 8 Ω.
Subwoofer
Subwoofer
Subwoofer
Subwoofer Subwoofer
Note
Use the subwoofer with an impedance of 1
Ω
to 8 Ω.
Note
Incoming signals from INPUT jacks are
emitted through the PRE OUT jacks.
Line Out (Rear)
or
Subwoofer Out
Line Out (Rear)
or
Subwoofer Out
JVC car receiver, etc.
Line Out (Rear)
or
Subwoofer Out
JVC car receiver, etc.
∫ Speaker input connector
Connector lead Speaker lead
Å White (stripe) Left (–)
ı White Left (+)
Ç Gray (stripe) Right (–)
Î Gray Right (+)
Note
Incoming signals from INPUT jacks
are emitted through PRE OUT
jacks (down mixed from FRONT
and REAR).
* 3 Be sure to connect the both leads to the target speaker lead.
JVC amplifier, etc.
(purchased separately)
JVC amplifier, etc.
(purchased separately)
Subwoofer
Line Out
(Center)
Center Speaker
Subwoofer
Out
Line Out
(Rear) Line Out
(Front)
Front Speaker
(left/right) Rear Speaker
(left/right)
JVC car receiver, etc. ∫ Speaker input connector
Connector lead Speaker lead
Å White (stripe) Left (–)
ı White Left (+)
Ç Gray (stripe) Right (–)
Î Gray Right (+)
∫ Speaker input connector
Connector lead Speaker lead Connector lead Speaker lead
Å White (stripe)
Right (–)
ı White
Right (+)
Ç Gray (stripe) Î Gray
}
* 3
}
* 3
∫ Speaker input connector
Connector lead Speaker lead
Å White (stripe)
Ç Gray (stripe)
Left (–)
ı White
Î Gray
Left (+)
}
* 3
}
* 3
JVC amplifier, etc.
(purchased separately)
