29
AV COMPU LINK Remote Control System
The AV COMPU LINK remote control system allows you to operate JVC video components (TV, VCR, and DVD player)
through the receiver.

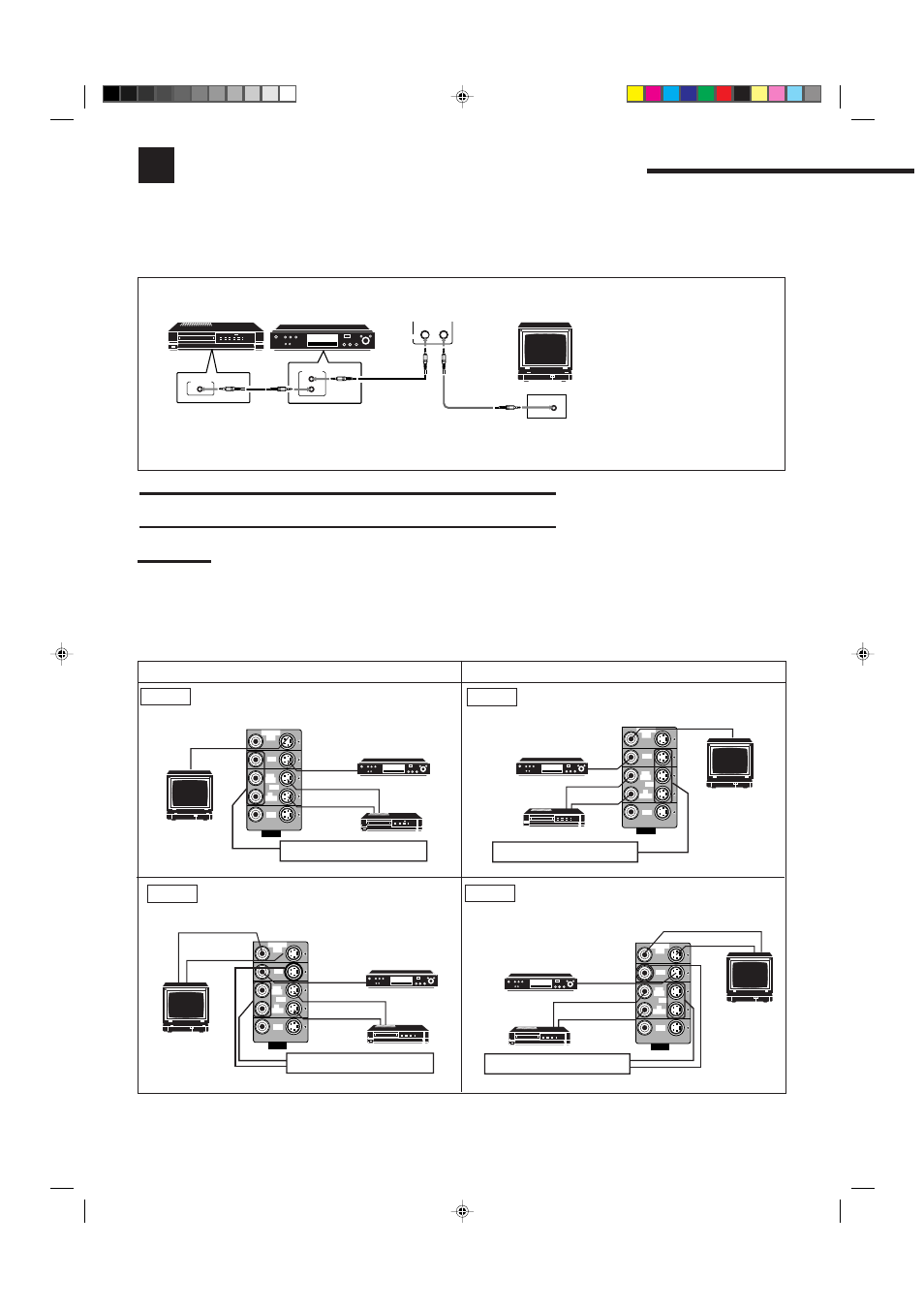

To use this remote control system, you need to connect the video components you want to operate, following the diagrams below and the
procedure on the next page.
CONNECTIONS 1:
VCR
DVD player TV
AV
COMPU LINK
AV
COMPU LINK
VHS
AV
COMPU LINK
DVD
AV COMPU LINK EX
AV COMPU LINK EX terminal
on the rear panel
Notes:
• When connecting only the VCR and DVD player to this receiver, connect it directly to the receiver
using cable with the monaural mini-plugs.
• You can only connect the TV with AV COMPU LINK EX to the AV COMPU LINK terminal.
• Refer also to the manuals supplied with your video components.
CAUTION:
The AV COMPU LINK remote control system cannot control the DBS tuner connected to the
TV SOUND/DBS jacks.
CASE1: If the components are equipped with the S-video
terminals
CASE2: If the components are not equipped with the S-
video terminals
CONNECTIONS 2:
CASE3: If only the VCR is equipped with the S-video
terminal
CASE4: If only the DVD player is equipped with the S-video
terminal
VIDEO
VCR
OUT (REC)
IN
(PLAY)
MONITOR
OUT
DVD
DBS
DVD
S-VHS
VCR
To Video input 1
DVD player
DO NOT use these video terminals.
TV
VIDEO
VCR
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
DVD
DBS
DVD
VHS
VCR
TV
To Video input 2
DVD player
DO NOT use these video terminals.
VIDEO
VCR
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
DVD
DBS
DVD
S-VHS
VCR
To Video input 1
DVD player
DO NOT use these video terminals.
TV
To Video input 2
VIDEO
VCR
OUT
(REC)
IN
(PLAY)
MONITOR
OUT
DVD
DBS
DVD
VHS
VCR
TV
To Video input 2
DVD player
DO NOT use these video terminals.
To Video input 1
